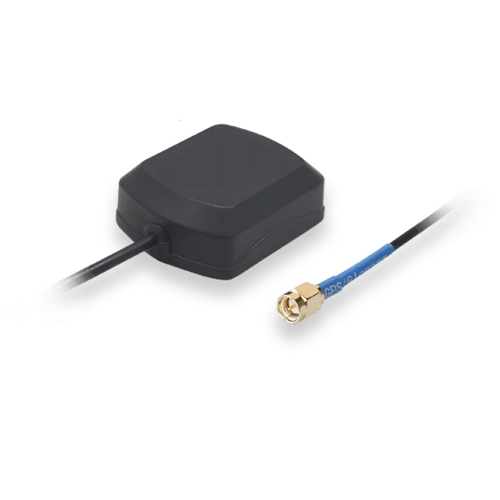

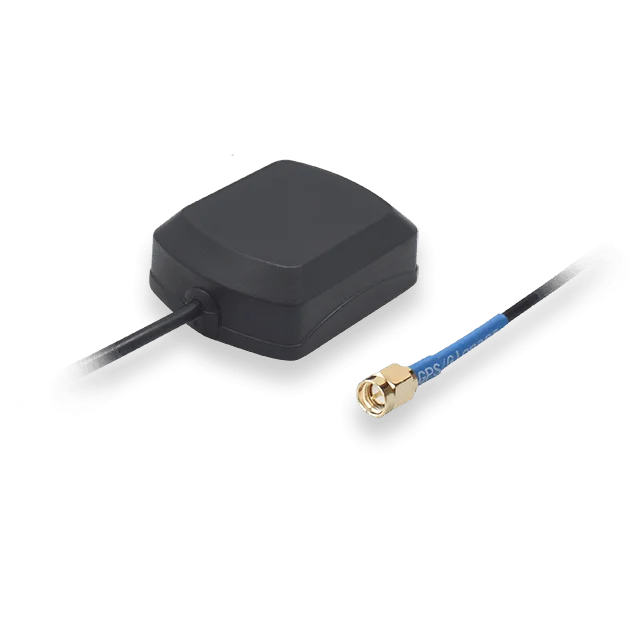

Telco Antennas Compact GPS Antenna



Key Features



  • 3dBi Antenna

  • Adhesive pad mounting

  • Unique LNA operation providing excellent gain and noise characteristics.



Usage



  • The Telco GPS series are high performance compact GPS antennas designed for automotive applications and a wide variety of OEM, system integrator and end user applications

  • The Antenna features a unique low noise amplifier circuitry specifically for operation on RHCP GSP signals

  • Enclosed in a UV stable, high impact, fully weatherised housing, with 5m of double screened low-loss RG174 type cable terminated with an SMA Male connector.



Specifications / Frequency



Network Compatibility
Yes/No
Gain
GPS (1227MHz / 1575MHz)
compatible
28dB (ACTIVE)
  • Frequency: 1575.42-1602 MHz
  • Polarization: RHCP
  • Gain: 2 dBi
  • V.S.W.R: < 1.5
  • Impedance: 50 Ω
  • Max Axial Ratio: 3 dB
  • LNA Gain: 28±2 dB
  • LNA Noise Figure: < 1.5 dB
  • Supply Voltage: 2.2 - 5 VDC
  • Current Consumption: < 15 mA
  • LNA V.S.W.R: < 2.0
  • Cable: RG174, 3000 mm
  • Connector: SMA Male
  • Mounting Method: Adhesive
  • Operating Temperature: -40 to +85°C
  • Operating Relative Humidity: 95 % max
  • RoHS Compliant: Yes

(GPS-1)

SKU GPS-1
Brand Teltonika
Shipping Weight 0.0450kg
Shipping Width 0.180m
Shipping Height 0.160m
Shipping Length 0.190m
Shipping Cubic 0.005472000m3
