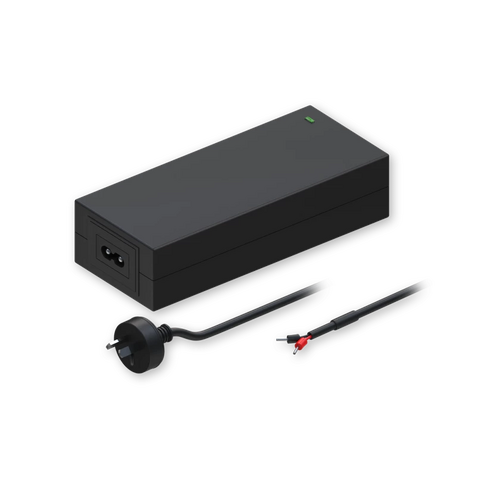

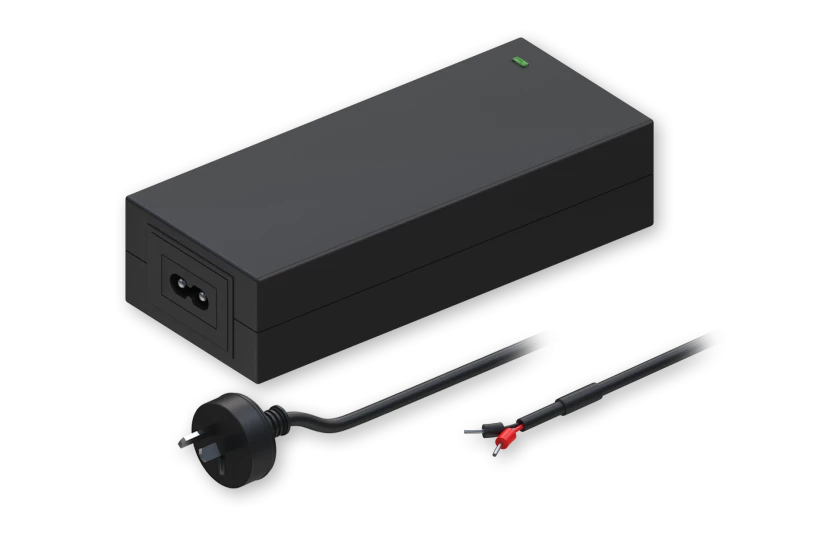

Teltonika AU 2-PIN POWER SUPPLY, 62W



Key Features



  • 2 Pin Power Supply variant

  • Replacement power supply unit for the TSW200



TECHNICAL DATA

  • GENERAL
  • Input voltage

100 – 240 VAC

  • Input frequency

50 / 60 Hz

  • Input current

1.5 A

  • Input connector

AU (Type I)

  • Output voltage

48 VDC

  • Output current

1.3 A

  • Output connector

2-pin, with cord end terminals

  • Weight

330 g

  • ADDITIONAL
  • Input voltage range

90 – 264 VAC

  • Input frequency range

47 – 63 Hz

  • Maximum input inrush current

50 A

  • Output voltage maximum deviation

45.6 – 50.4 VDC

  • Short circuit protection

  • HIPOT (dielectric withstand test)

Primary to Secondary: 4000 VDC

  • MTBF

50000 h

  • Certification

Safety: AS/NZS 61558.1:2008+A1:2009+A2:2015, AS/NZS 61558.2.16:2010+A1:2010+A2:2012+A3:2014

EMC: AS/NZS CISPR 14:2013





(PR317AUA)

SKU PR317AUA
Brand Teltonika
Shipping Width 0.050m
Shipping Height 0.050m
