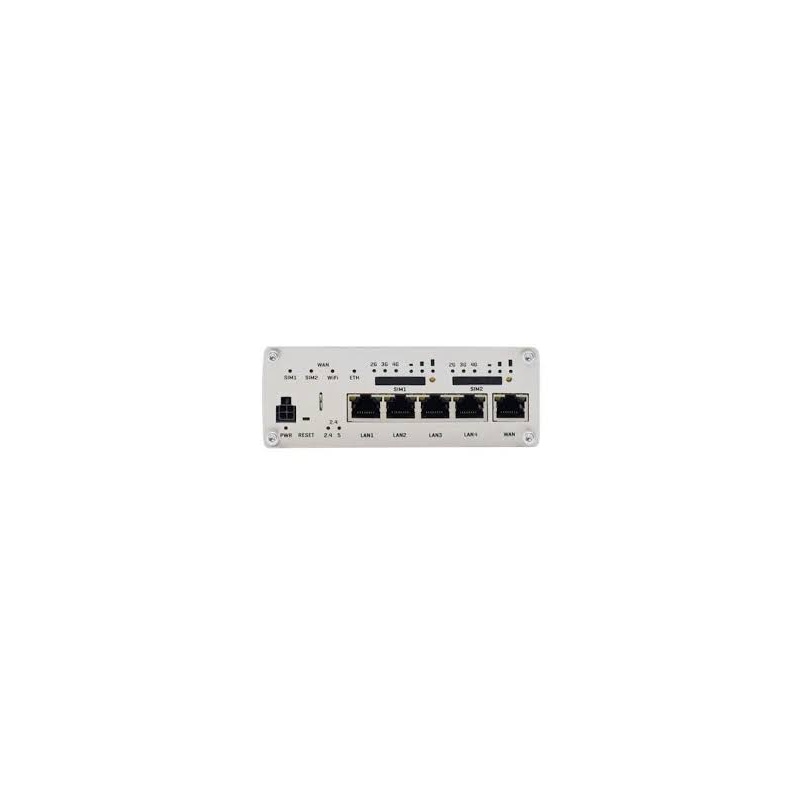

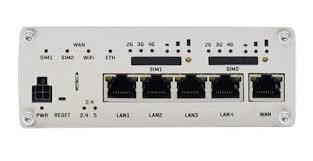

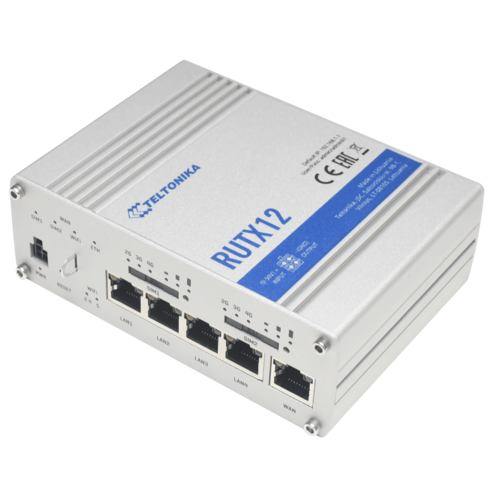

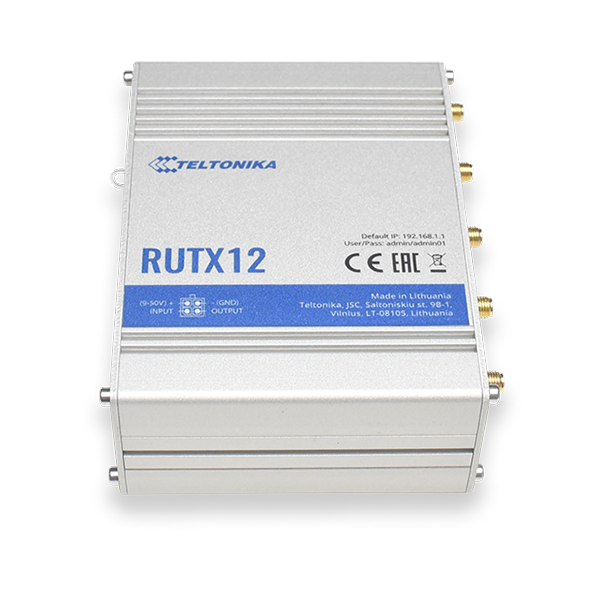

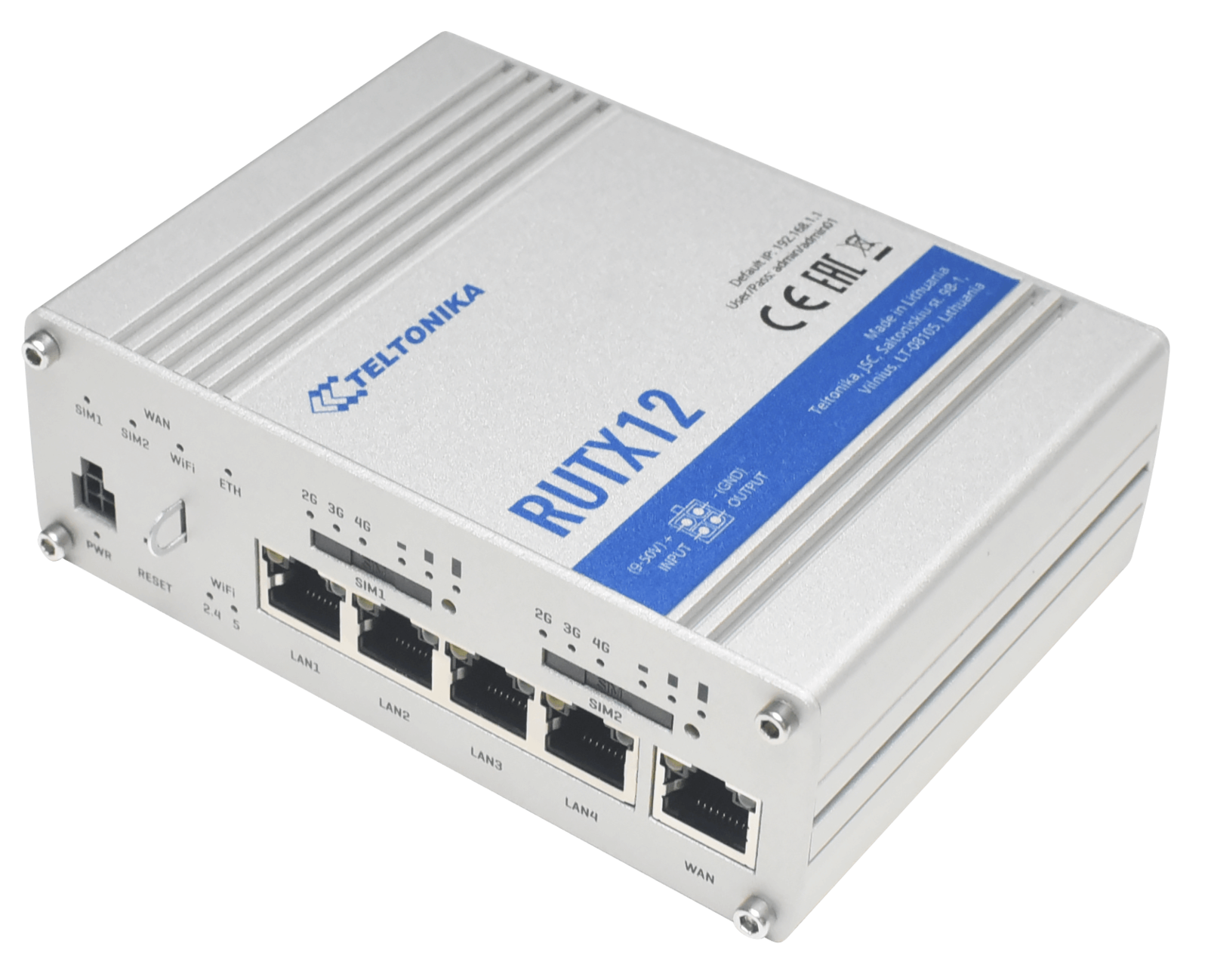

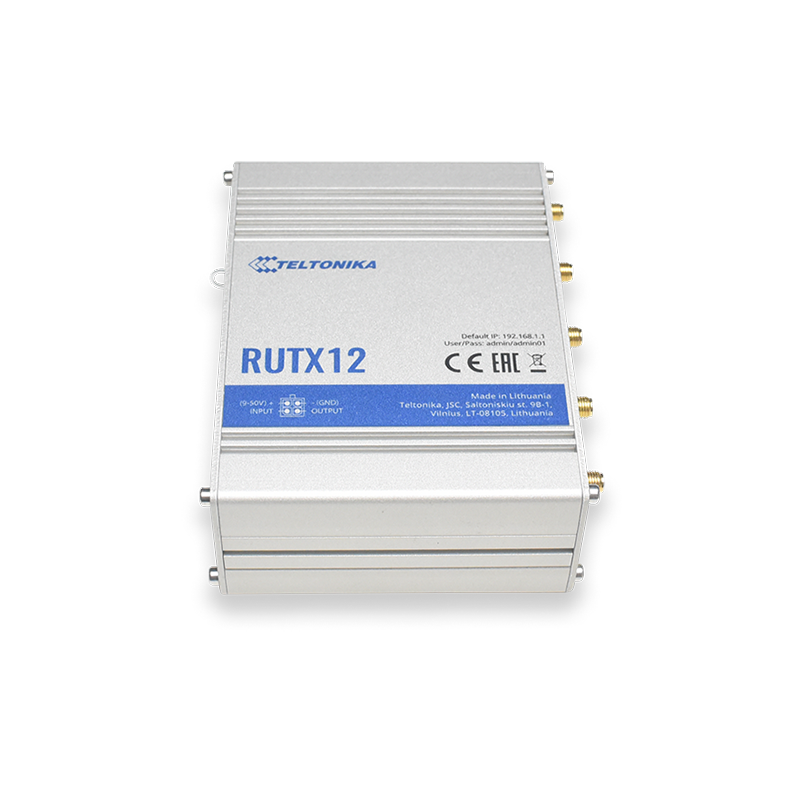

Teltonika Dual LTE-A Cat6 Cellular IoT Router - RUTX12



Key Features



  • Dual LTE with Cellular speeds up to 600Mbps with dual simultaneous LTE CAT 6 connections

  • Dual-SIM with auto Failover, Backup WAN and other SW features

  • Please note the RUTX12 does not support Cellular Bonding

  • VPN, Firewall and plenty of processing power for custom applications on OpenWrt based RutOS system

  • 5 x Gigabit Ethernet Ports

  • Teltonika Remote Management System compatible

  • Easy to use, secure and feature rich OpenWrt based Operating System.



Usage



  • The RUTX12 is the most powerful Dual LTE Cat 6 router within the Teltonika range of Routers.

  • Two simultaneously operational LTE Cat 6 modems provide speeds up to 600 Mbps with load balancing feature.

  • The bonding functionality effectively combines multiple internet sources into one for a seamless data transfer.

  • Please note that this Router is not capable of Cellular Bonding

  • 5 x Gigabit Ethernet ports, Wave-2 802.11ac Dual-Band Wi-Fi, Bluetooth LE, and USB interfaces and dual SIM make this device irreplaceable in applications where losing connection is not an option.

  • Packed with advanced security features like VPN, IPsec, PPTP, L2TP Stunnel and GNSS tracking.



Specifications / Frequency

Hardware

Mobile

2 x 4G/LTE (Cat 6), 3G

CPU

Qualcomm, 4 x ARM Cortex A7, 717 MHz

Memory

256 MBytes Flash, 256 MBytes RAM

Powering Option

4pin power socket, 9-50 VDC

SIM

2 x External SIM holders (2FF)

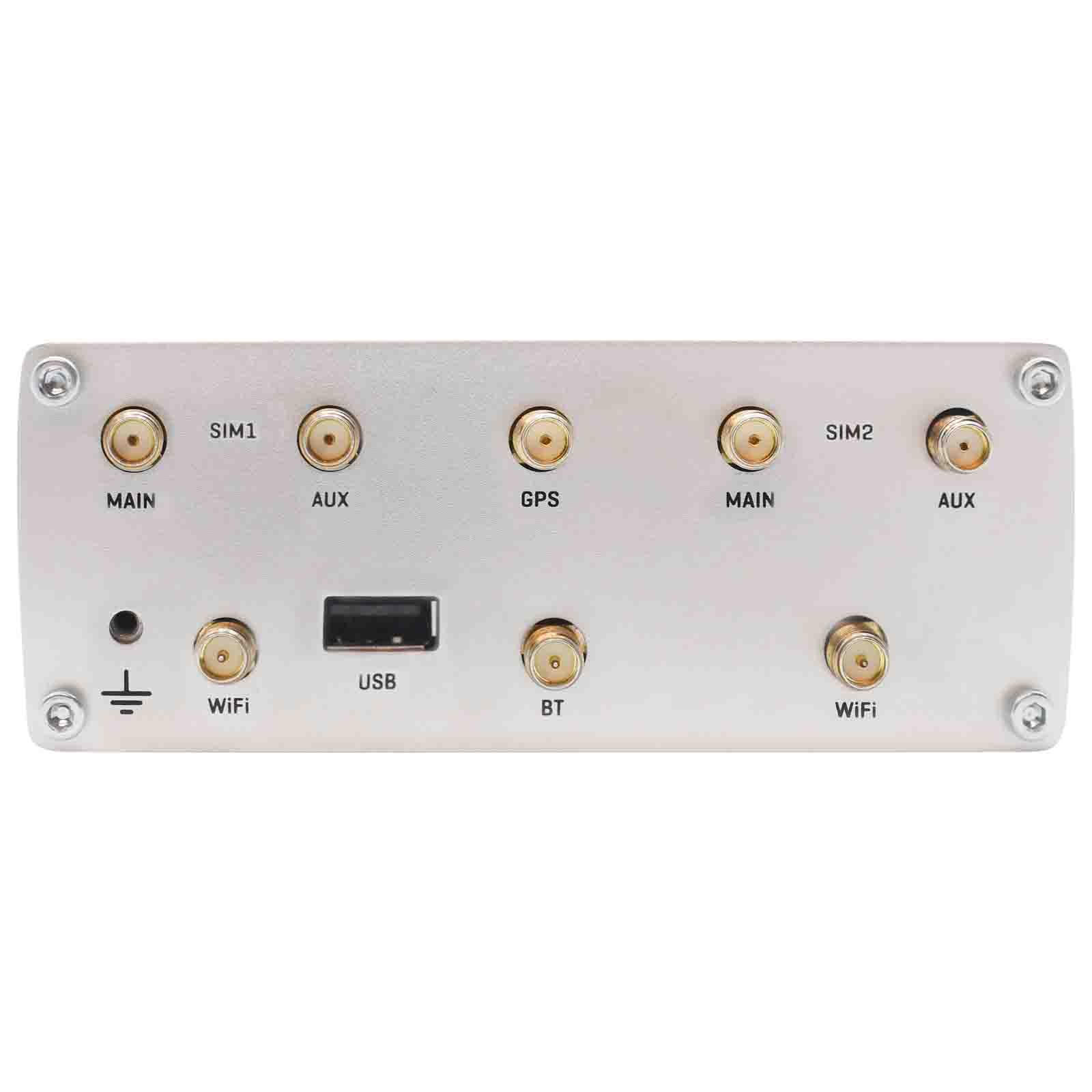

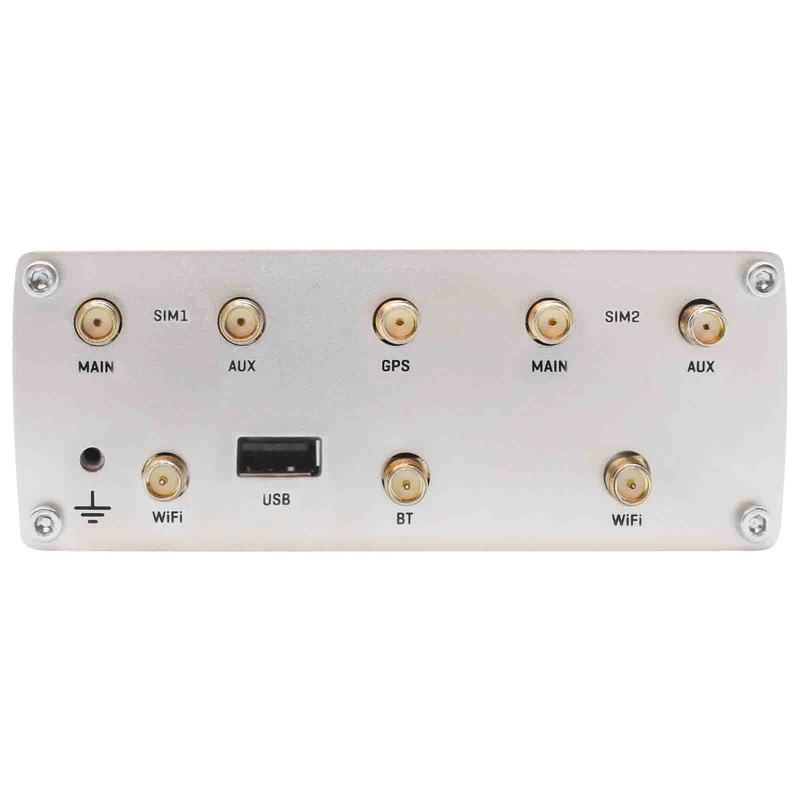

Antenna Connectors

4 x SMA for mobile, 2 x RP-SMA for WiFi,

1 x RP-SMA for Bluetooth, 1 x SMA for GPS

Ethernet

5 x 10/100/1000 Ethernet ports: 1 x WAN (configurable as LAN), 4 x LAN

WiFi

IEEE 802.11b/g/n 2.4GHz, IEEE 802.11ac/n/a 5GHz, Access point (AP), Station (STA)

GNSS

GPS, GLONASS, BeiDou, Galileo, QZSS

Connectors

1 x 4 pin DC, 5 x Ethernet, 4 x SMA for LTE,

2 x WiFi RP-SMA, 1 x SMA for GNSS,

1 x RP-SMA for Bluetooth

Bluetooth

4.0 (Low energy)

Inputs/Outputs

On 4pin socket: 1 x Digital input, 1 x Digital open collector output

Other

1 x USB host

Status LEDs

4 x WAN type, 6 x Connection type, 6 x Signal strength, 2 x WiFi, 10 x Ethernet, 1 x Power

Operating Temperature

-40 °C to 75 °C

Housing

Aluminium housing with DIN rail mounting option and grounding capability

Dimensions

(W x H x D) 132 x 44 x 95 mm

Weight





Software

Operating System

RutOS (OpenWrt based Linux OS)

Mobile Features

Multiple PDN, Auto APN, Band lock, SIM switch, Operator black/white list, Data/SMS limits

Network

Failover (Network backup), VLAN, QoS, Load Balancing

Routing

Static routes, Dynamic routes (BGP, OSPFv2, RIPv1/v2, EIGRP, NHRP), Routing rules

Monitoring & Management

WEB UI, CLI, SSH, SMS, TR-069, SNMP, JSON-RPC, MQTT, RMS

Cloud Solutions

RMS, FOTA, Telenor, Azure IoT Hub, Cloud of Things, Cumulocity, ThingWorx

Hotspot

Radius, SMS OTP, MAC authentication, Walled Garden

Supported Hotspot Platforms

IronWiFi, HotspotSystem, Cloud4Wi, SAI + WiFi, MugiCloud, Purple.ai



Read more





teltonika 4GX modems logo



(RUTX12)

SKU RUTX12
Shipping Weight 0.9000kg
Shipping Width 0.175m
Shipping Height 0.060m
Shipping Length 0.360m
Shipping Cubic 0.003780000m3
