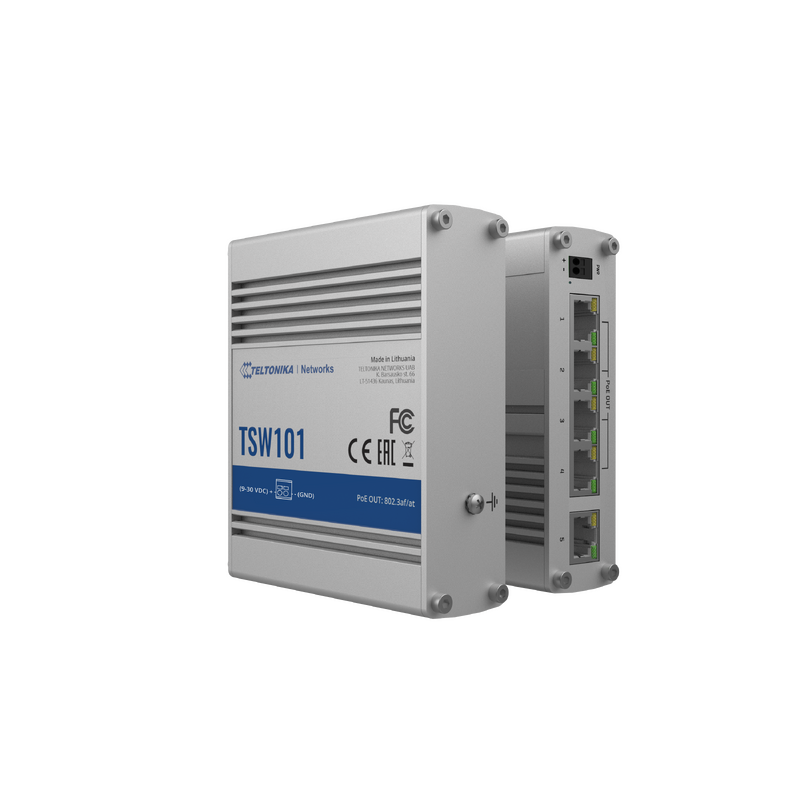

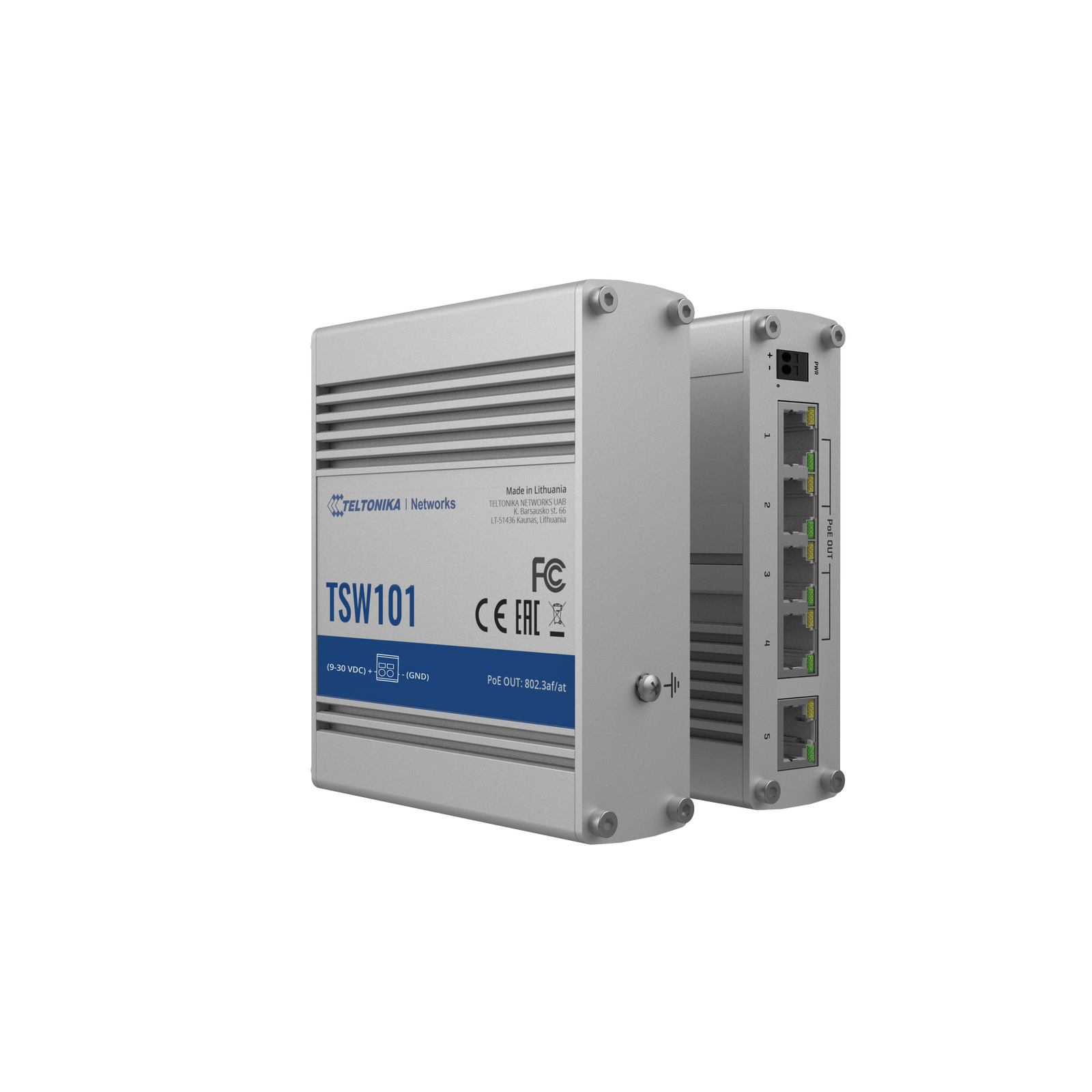

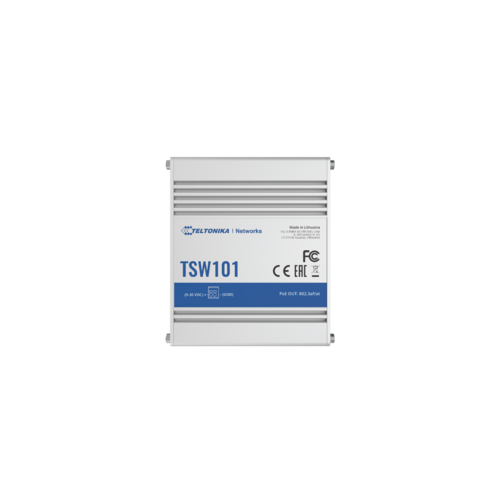

Teltonika TSW101 Industrial Unmanaged PoE+ for Transportation
Transportation Switch
SKU: tsw101
Teltonika TSW101 Industrial Unmanaged PoE+ for Transportation
TSW101 is the first industrial unmanaged switch from Teltonika Networks for transportation applications. TSW101 is equipped with five Gigabit Ethernet ports, four of which support IEEE802.3af and IEEE802.3at Power-over-Ethernet + standards (PoE+). A wide range of supported power supply voltages (9-30 VDC), and a compact size allow it to slot into many automotive applications.
Classified as power source equipment (PSE), it enables centralization of the power supply, providing up to 30 watts per port and maximum output power of 60 watts. It has 10/100/1000 Mbps Ethernet ports for streamlined, high-bandwidth solutions.
Ideal for providing both: in-vehicle power and an Ethernet data connection simultaneously.
TSW101 - Teltonika Industrial Unmanaged POE+ for Transportation
| INTERFACES | |
| Ethernet | 5 x RJ45 ports, 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover |
| POE | |
| PoE ports | Port 1- 4 |
| PoE standards | 802.3af and 802.3at |
| PoE Max Power per Port (at PSE) | 30 W |
| Total PoE Power Budget (at PSE) | 60 W |
| Maximum Ethernet cable length | 100 m |
| PERFORMANCE SPECIFICATIONS | |
| Bandwidth (Non-blocking) | 10 Gbps |
| Packet buffer | 128 KB |
| MAC address table size | 2K entries |
| Jumbo frame support | 9216 bytes |
| POWER | |
| Connector | 2-pin industrial DC power socket |
| Input voltage range | 9-30 VDC |
| Input voltage range for PoE | 9-30 VDC |
| Power consumption | Idle: 0.64 W / Max: 2.31 W / PoE Max: 60 W |

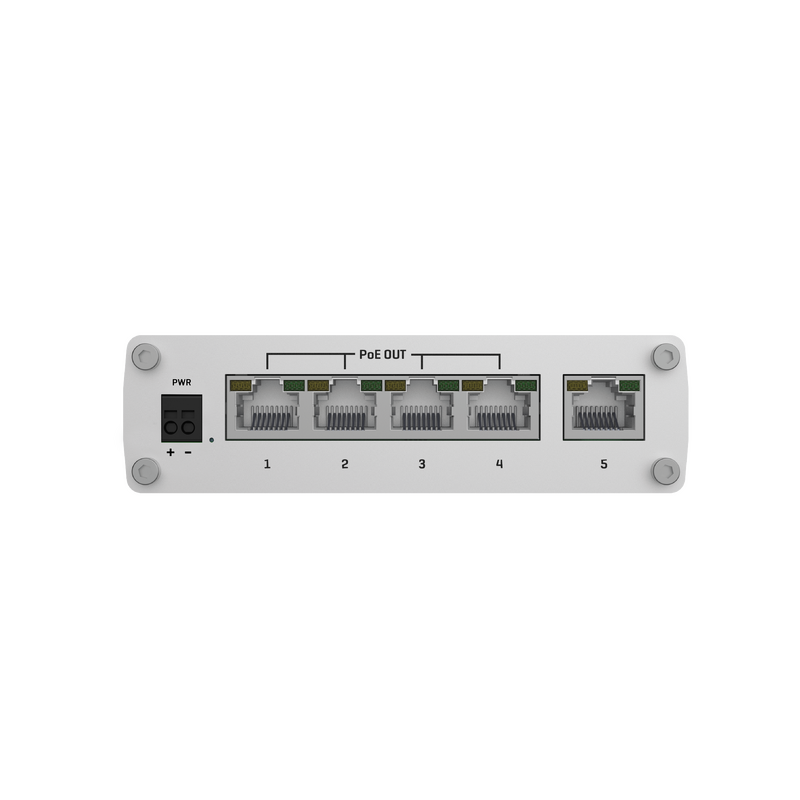

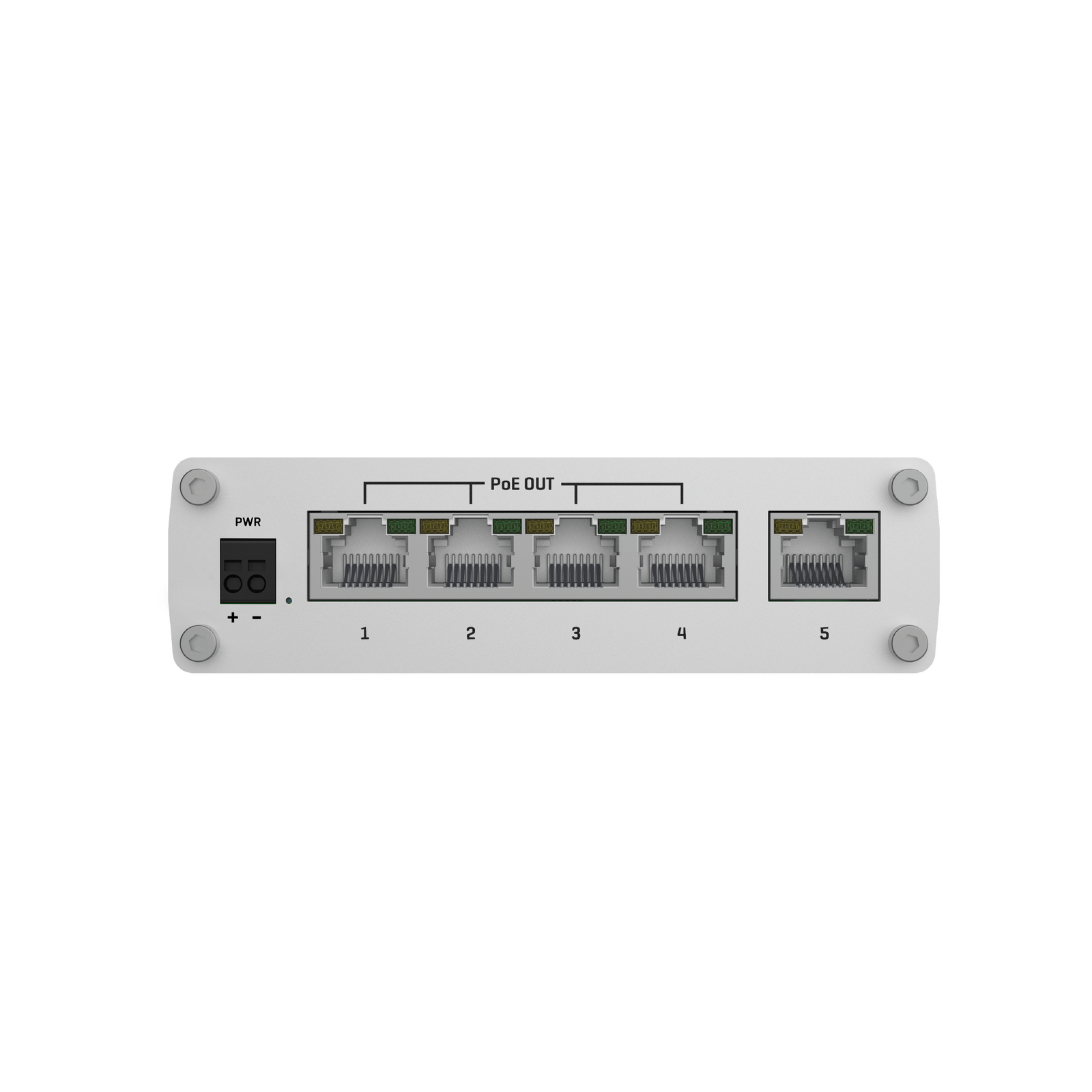

| PHYSICAL INTERFACES (PORTS, LEDS) | |
| Ethernet | 5 x RJ45 ports, 10/100/1000 Mbps |
| Status LED’s | 1 x Power LED, 10 x LAN status LED’s |
| Power | 1 x 2-pin industrial DC power socket |
| Ground | 1 x Grounding screw |
| PHYSICAL SPECIFICATION | |
| Casing material | Aluminum housing |
| Dimensions (W x H x D) | 115 x 32 x 95 mm |
| Weight | 354 g |
| Mounting | DIN rail or wall mounting (additional kit needed), flat surface placement |
| OPERATING ENVIRONMENT | |
| Operating temperature | -40 °C to +75 °C |
| Operating humidity | 10 % to 90 % non condensing |
| Ingress Protection Rating | IP30 |
| CERTIFICATION & APPROVALS | |
| Regulatory | CE, REACH, RoHS, WEEE |
| TSW101 CE | |
| TSW101 UKCA | |
| TSW101 FCC | |
| TSW101 IC | |
| TSW101 CB | |
| TSW101 RCM | |
| E-Mark | |
| SAFETY | |
| Standards | EN IEC 62368-1:2020+A11:2020 |
(tsw101)
| SKU | tsw101 |
| Shipping Weight | 0.3540kg |
| Shipping Width | 0.115m |
| Shipping Height | 0.320m |
| Shipping Length | 0.950m |
| Shipping Cubic | 0.034960000m3 |
