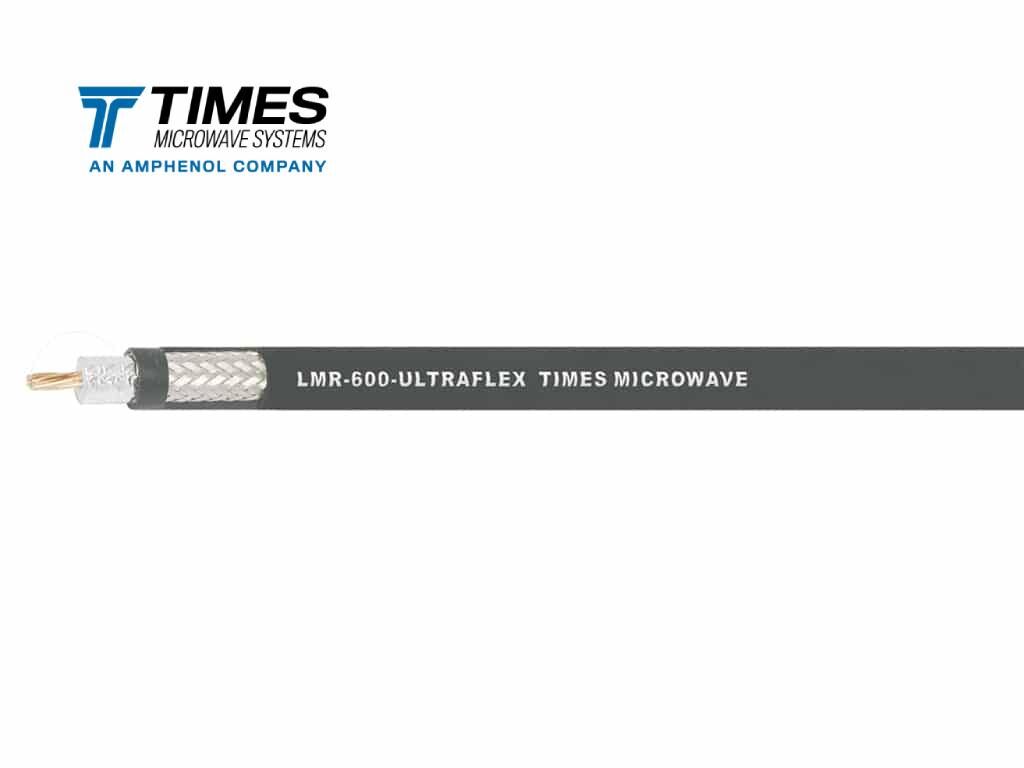

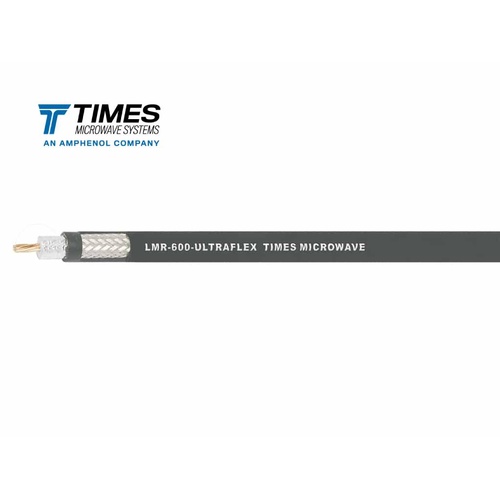

Times Microwave LMR®-600-UF Ultra Flexible Low Loss Communications Coaxial Cable - Per Metre



Key Features



  • LMR®-600-UF 50Ω cabling

  • Times Microwave communications cable

  • Any application (e.g. WLL, GPS, LMR, WLAN, WISP, WiMax, SCADA, Mobile Antennas) requiring an easily routed, low loss RF cable

  • UV Resistant Polyethylene jacketed cable



Usage



  • The highest grade antenna cable, recommended for any performance critical, industrial, and harsh environmental applications

  • LMR®-600-UF 50 Ohm coax cable features a stranded center conductor and durable rubber jacket, providing superior flexibility for tight bends and repeated flexing.

  • Ideal for indoor and outdoor RF applications, it ensures low signal loss and high performance in environments requiring frequent movement or cable handling.



Specifications / Frequency



Electrical Specifications

  • Resistance: 50Ω

  • Capacitance: 76.6pF/m

  • Signal Loss: 0.098dB/m @ 900MHz, 0.153dB/m @ 2000MHz

  • Frequency Range: DC-6GHz

  • Velocity of Propagation: 85%

  • Nominal Delay: 3.83ns/m

  • Voltage Withstand: 40kW

  • Peak Power: 40kW



Mechanical Specifications



  • Weight/1m: 0.25kg

  • Minimum Bend Radius: 38.1mm

  • Operating Temperature: -40 °C to +85 °C (-40 °F to +185 °F)

  • Conductor Material: Stranded BC

  • Conductor Diameter: 4.47mm

  • Insulating Material: Foamed Polyethylene

  • Shield Material: Aluminum; Copper, Tinned

  • Outer Jacket Material: PE Outer Diameter: 14.99mm

Specification Sheet

times microwave logo png



(LMR-600-UF-PM)

SKU LMR-600-UF-PM
Brand Times Microwave
Shipping Width 0.310m
Shipping Height 0.270m
Shipping Length 0.310m
Shipping Cubic 0.025947000m3
