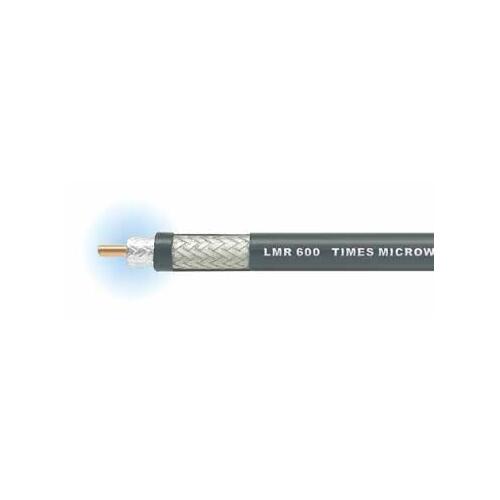

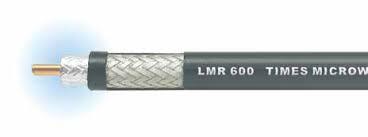

Times Microwave LMR600 Ultra Low Loss 50Ω Cable - Per Metre



Key Features



  • LMR600 50Ω cabling

  • Times Microwave communications cable

  • Any application (e.g. WLL, GPS, LMR, WLAN, WISP, WiMax, SCADA, Mobile Antennas) requiring an easily routed, low loss RF cable

  • UV Resistant Polyethylene jacketed cable



Usage



  • The highest grade antenna cable, recommended for any performance critical, industrial, and harsh environmental applications

  • Its exceptional performance is achieved with a much thicker diameter (14.99mm) and greatly reduced flexibility (38.1mm minimum bend diameter)

  • LMR-600 cables are designed for outdoor exposure, as they incorporate the best UV resistance materials and have an expected life expectancy of over 20 years.



Specifications / Frequency



Electrical Specifications

  • Resistance: 50Ω

  • Capacitance: 76.6pF/m

  • Signal Loss: 0.082dB/m @ 900MHz, 0.128dB/m @ 2000MHz

  • Frequency Range: DC-80GHz

  • Velocity of Propagation: 85%

  • Nominal Delay: 3.83ns/m

  • Voltage Withstand: 40kW

  • Peak Power: 40kW



Mechanical Specifications



  • Weight/100m: 20kg

  • Minimum Bend Radius: 38.1mm

  • Operating Temperature: -40 °C to +85 °C (-40 °F to +185 °F)

  • Conductor Material: Aluminum; Copper, Tinned

  • Conductor Diameter: 4.47mm

  • Insulating Material: Foamed Polyethylene

  • Shield Material: Aluminum; Copper, Tinned

  • Outer Jacket Material: PE Outer Diameter: 14.99mm

Specification Sheet

times microwave logo png



(LMR600-PM)

SKU LMR600-PM
Brand Times Microwave
Shipping Width 0.310m
Shipping Height 0.270m
Shipping Length 0.310m
Shipping Cubic 0.025947000m3
