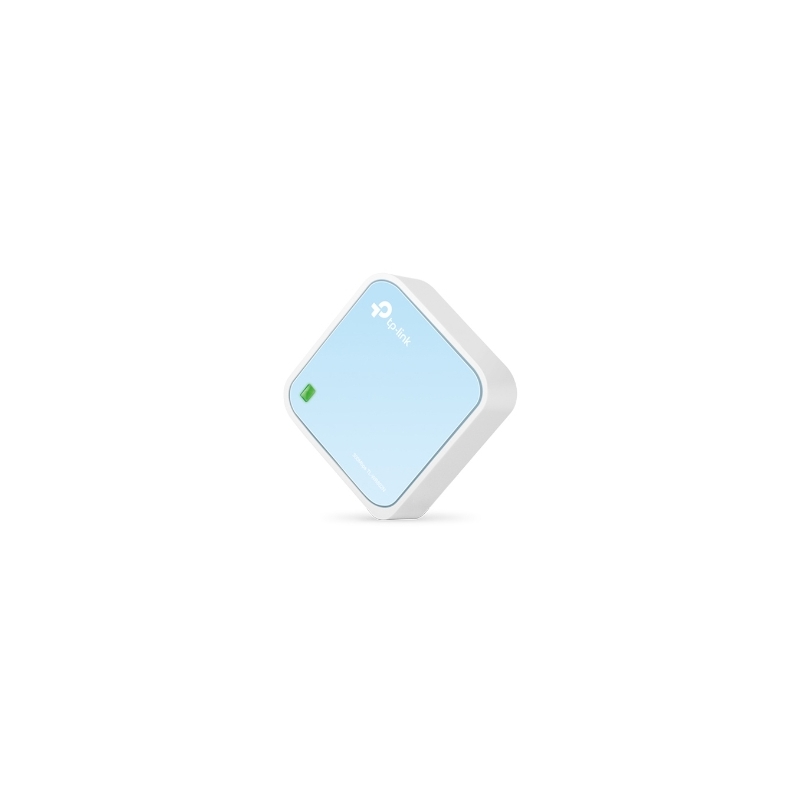

TP-LINK Nano Router TL-WR802N

Key Features

• 300Mbps Wireless Speed

• Multi-Mode

• Compact Design

On the Road

•  Wireless Router Mode: create your own private Wi-Fi network via Ethernet connection

•  Hotspot Router Mode: turn existing Wi-Fi into a private wireless network

At Home

•  Range Extender Mode: expand an existing router's Wi-Fi coverage

•  Client Mode: connect Ethernet devices to a Wi-Fi network

•  Access Point Mode: transform a wired network to a wireless one

Key Features

Reliability

· Wireless N Speed – 300Mbps Wi-Fi speed meets your daily internet needs

· 802.11n – Backward compatible with 802.11b/g products

· Easy Bandwidth Management – Bandwidth Control allocates necessary speed of each connected device to ensure quality of multimedia streaming

Ease of Use

· Intuitive Web UI – Ensures quick and simple installation without hassle

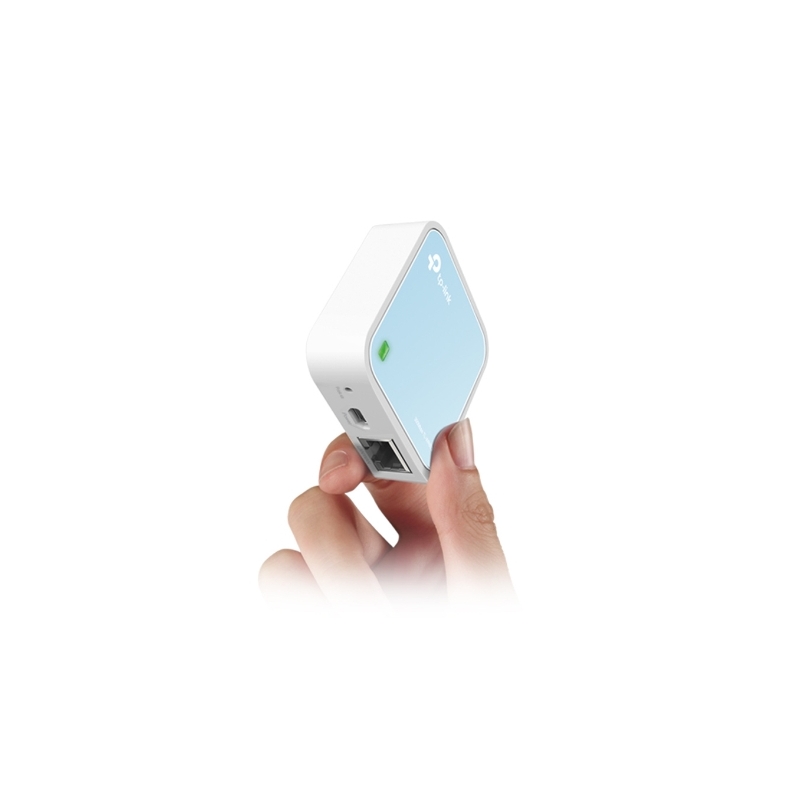

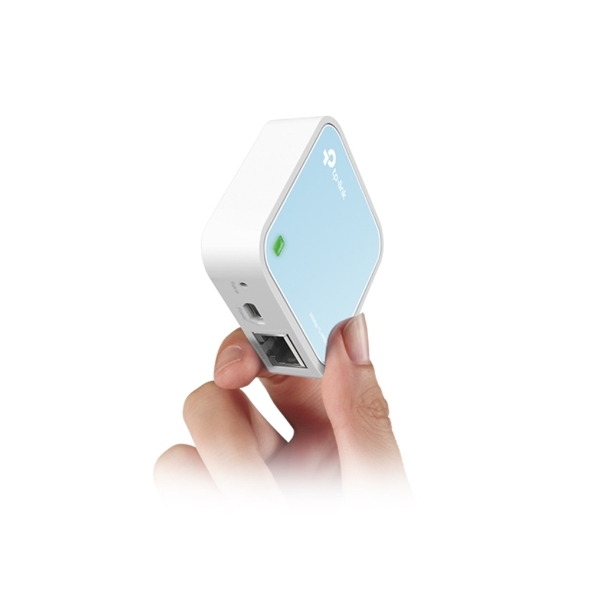

· Pocket Size – Ideal for home and travel use · Flexible Power Supply – Powered through a micro USB port by an external power adapter or USB connection to a computer provides flexibility for any situation

· Hassle-free Management with Tether App – Network management is made easy with the TP-Link Tether App, available on any Android or iOS device

Security

· Access Control – Establish a whitelist or blacklist to allow or block certain devices from accessing the internet

· Parental Controls – Manage when and how children devices can access the internet

· Encryptions for Secure Network – WPA-PSK/WPA2- PSK encryptions provide active protection against security threats

RMS support

Remotely manage your routers fleet. With full support of centralised Teltonika Remote Management System you will be able to access, control and monitor all of your routers within a single platform. This will help you make better decisions for future installments and best-use practices. Try RMS for free by clicking this link and registering your free demo account!

Specifications / Frequency

Hardware

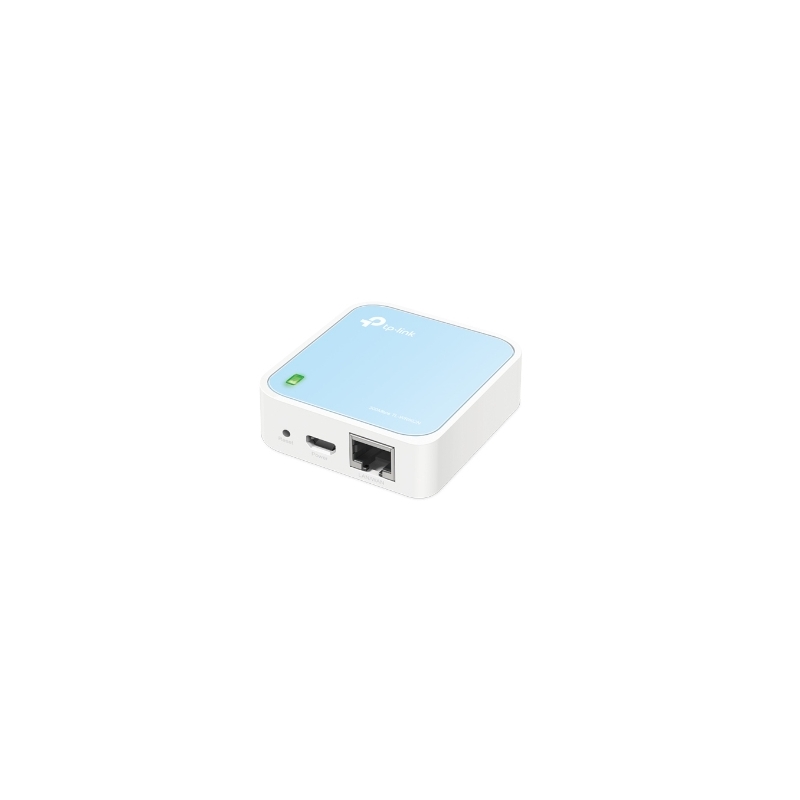

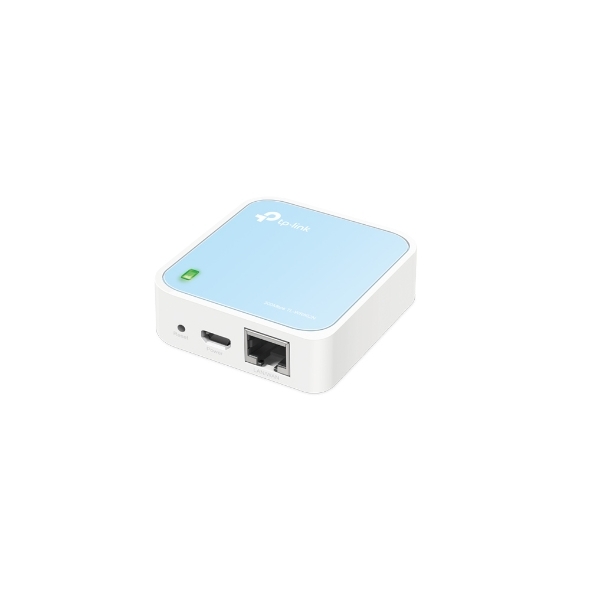

· Ports: 1 10/100Mbps WAN/LAN Port, 1 Micro USB Port

· Buttons: Reset Button

· External Power Supply: 5VDC /1A

· Dimensions (W x D x H): 2.2 x 2.2 x 0.7 in. (57 x 57 x18 mm)

Wireless

· Wireless Standards: IEEE 802.11n, IEEE 802.11g, IEEE 802.11b

· Frequency: 2.4-2.4835GHz · Transmit Power: CE: <20dBm(2.4GHz), FCC: <30dBm

· Signal Rate: 11n: Up to 300Mbps(dynamic) 11g: Up to 54Mbps(dynamic) 11b: Up to 11Mbps(dynamic))

· Reception Sensitivity: 150M：-72dBm@10% PER 72M：-75 dBm@10% PER 54M：-78 dBm@10% PER 6M：-92 dBm@10% PER

· Wireless Modes: Wireless Router Mode, Range Extender Mode, Client Mode, Access Point Mode, Hotspot Router Mode

· Wireless Function: Enable/Disable Wireless Radio, WMM, Wireless Statistics

· Wireless Security: WEP, WPA / WPA2, WPA-PSK / WPA2-PSK

Software

· Working Modes: Wireless Router, Range Extender, Access Point

· WAN Type: Dynamic IP, Static IP, PPPoE, PPTP, L2TP

· DHCP: Server, DHCP Client List, Address Reservation

· Quality of Service: WMM, Bandwidth Control

· Port Forwarding: Virtual Server, Port Triggering, UPnP, DMZ

· Dynamic DNS: DynDns, Comexe, NO-IP

· VPN Pass-Through: PPTP, L2TP, IPSec

· Access Control: Parental Controls, Local Management Control, Host List, Access Schedule, Rule Management

· Firewall Security: DoS, SPI Firewall, IP and MAC Address Binding

· Protocols: IPv4, IPv6 · Management: Access Control, Local Management, Remote Management

· Firewall Security: DoS, SPI Firewall, IP Address Filter/MAC Address Filter/Domain Filter, IP and MAC Address Binding

Others

· Certification CE, FCC, RoHS

· System Requirements Microsoft Windows 10/8.1/8/7/Vista/XP/2000/NT/98SE, MAC OS, NetWare, UNIX or Linux Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser

· Environment Operating Temperature: 0℃~40℃ (32℉ ~104℉) Storage Temperature: -40℃~70℃ (-40℉ ~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing

· Package Contents 300Mbps Wireless N Nano Router TL-WR802N Quick Installation Guide RJ-45 Ethernet Cable Power Adapter USB Cable
