TS9 Male Crimp Connector


  • TS9 Plug

  • Suits 2.5mm diameter cable such as RG174 and RG316.




  • A crimp connector is used to terminate the end of a coaxial cable to allow connection to an RF device or antenna

  • Each series of connector differs by method of connection, size, and electrical properties, allowing a technician to select a connector to best match the intended purpose.

  • Most crimp connectors consist of three components - the connector body, pin/socket, and crimping ferrule

  • Terminating a coaxial cable with a crimp connector requires three tools - a wire stripper/cutter, soldering iron, and hex crimp

  • You can find instructional videos on crimping most connectors on YouTube.


Crimp Hex Die Sizing


  • RG316/RG174 - 0.128"

  • RG58/LMR195 - 0.213"

  • LMR400/RG8 - 0.429"


Automatic Price Breaks


The price listed for this item is for a quantity of 1-24 units.

Prices will automatically incur a bulk-buy discount during checkout depending on quantity ordered.

For large orders please contact our team to arrange a quote.


  • 25-49 units = 10% Discount

  • 50-74 units = 15% Discount

  • 75-99 units = 20% Discount

  • 100-249 units = 24% Discount

  • 250-499 units = 29% Discount

  • 500-999 units = 33% Discount

  • +1000 units = 37% Discount

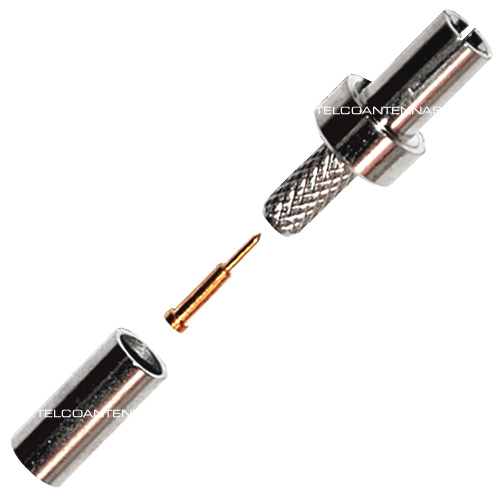

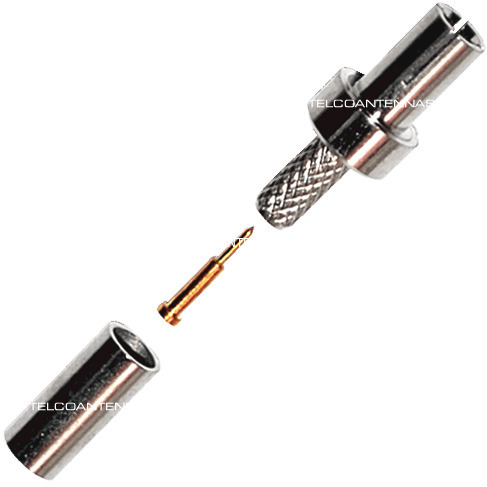

Product image representative only, for exact dimensions and/or specification please contact us for a copy of the CAD drawing.


Specifications / Frequency


Electrical Specifications


  • Impedance: 50Ω

  • Frequency Range: DC-3GHz

  • Working Voltage: 170V RMS

  • Withstanding Voltage: 500V RMS

  • Contact Resistance - Centre Contact <3mΩ - Outer Contact < 2mΩ

  • Insulation Resistance: > 1000MΩ

  • VSWR: < 1.25/1GHz


Mechanical Specifications


  • Temperature Range: -55°C to + 155°C

  • RoHS Compliant


tick rohs compliant lead free



SKU TS9-174
Shipping Weight 0.0450kg
Shipping Width 0.050m
Shipping Height 0.050m
Shipping Length 0.030m
Shipping Cubic 0.000075000m3
