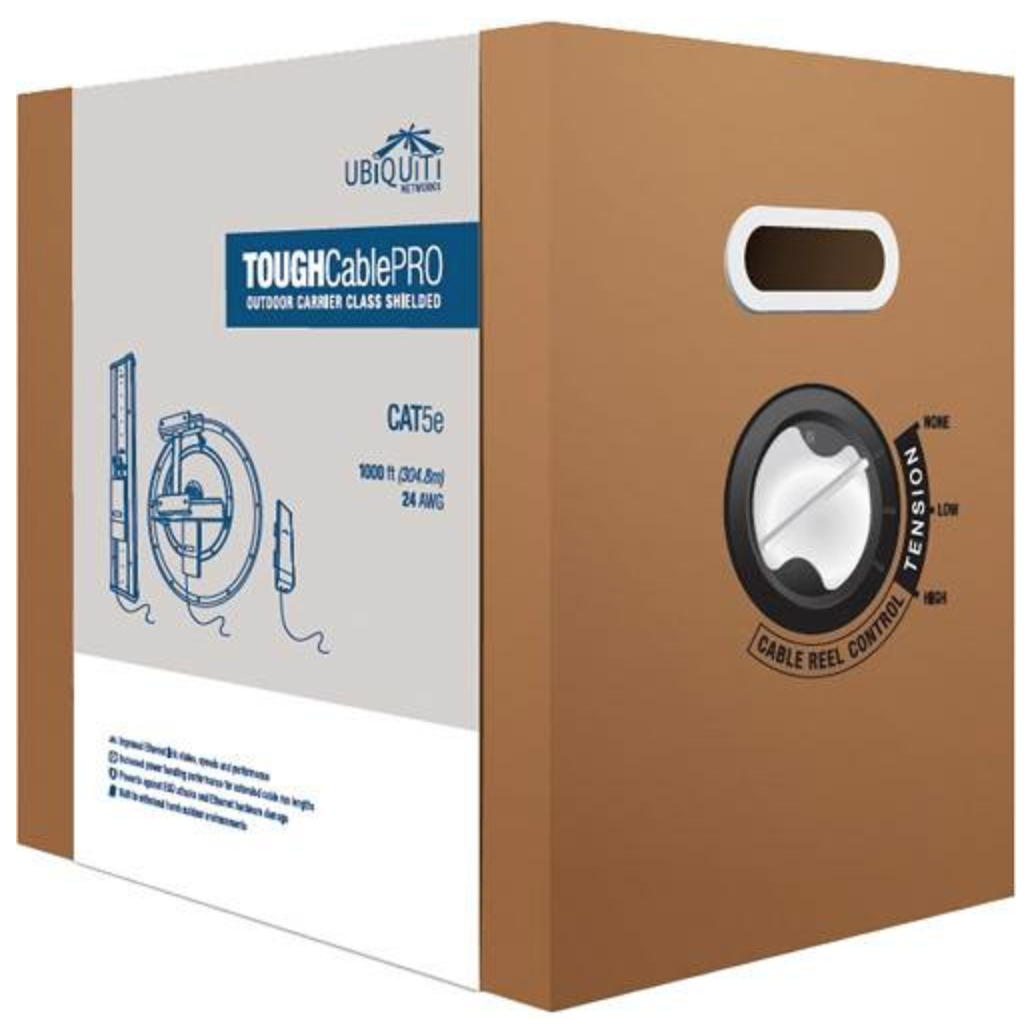

Ubiquiti ToughCable PRO Level 1 Outdoor Shielded Cable - 305m Reel



Key Features



  • Aluminium shielded Cat5e Ethernet

  • Grounded drain wire to protect from ESD attacks.



Usage



  • Ultra durable and weatherproof PE jacket

  • Protect your networks from the most brutal environments with Ubiquiti’s industrial-grade shielded Ethernet cable, TOUGHCable PRO (Level 1)

  • Dramatically improves your Ethernet link states, speeds, and overall performance.

Beware Not ACMA APPROVED



TOUGHCable PRO Specifications



  • Ethernet Support: Up to 1Gbps

  • Conductor Wire Gauge: 24 AWG

  • Conductor: Solid Bare Copper

  • Conductor Diameter: 0.500 ± 0.005 mm

  • Insulation Type: Solid PE

  • Insulation Thickness AVG: 0.26 mm, MIN: 0.25 mm

  • Insulation Diameter: 1.04 ± 0.03 mm

  • Separation (Polyester Wrapping) Thick: 0.025 mm

  • Extent: 20 mm

  • Cable Shield (Aluminum Foil) Thick: 0.060 mm

  • Extent: 18 mm ESD

  • Drain Wire 0.4 CCS

  • Rip Cord: Yes

  • Jacket Material: PE

  • Jacket Thickness AVG: 0.50 mm, MIN: 0.46 mm

  • Jacket Outer Diameter: 6.0 ± 0.30 mm

  • Jacket Colour: Grey

  • Reference Standard: ISO/IEC 11801, TIA/EIA568B.2



Read More





Important



Special Delivery Information - Due to product weight, please contact us if freight charges appear excessive.



(UBNT-TC-PRO)

Specifications

TOUGHCable PRO Specifications

Level 1 Shielding Protection Cable CAT5eShielded

Ethernet Support Up to 1 Gbps

Conductor Wire Gauge 24 AWG Conductor Solid Bare Copper

Conductor Diameter 0.500 ± 0.005 mm

Insulation Type Solid PE Insulation Thickness Avg. 0.26 mm, Min. 0.25 mm

Insulation Diameter 1.04 ± 0.03 mm

Separation (Polyester Wrapping) Thick: 0.025 mm, Extent: 20 mm

Anti-Crosstalk Divider

None Cable Shield (Aluminum Foil) Thick: 0.060 mm, Extent: 18 mm

ESD Drain Wire 0.4

CCS Rip Cord Yes

Jacket Material PE

Jacket Thickness Avg. 0.50 mm, Min. 0.46 mm

Jacket Outer Diameter 6.0 ± 0.30 mm

Jacket Color Black

Reference Standard ISO/IEC 11801, TIA/EIA568B.2

Installation Temperature -20 to 60° C (-4 to 140° F)

Storage Temperature -30 to 75° C (-22 to 167° F)

Operation Temperature -40 to 80° C (-40 to 176° F)

SKU UBNT-TC-PRO
Brand Ubiquiti
Shipping Width 0.330m
Shipping Height 0.340m
Shipping Length 0.330m
Shipping Cubic 0.037026000m3
