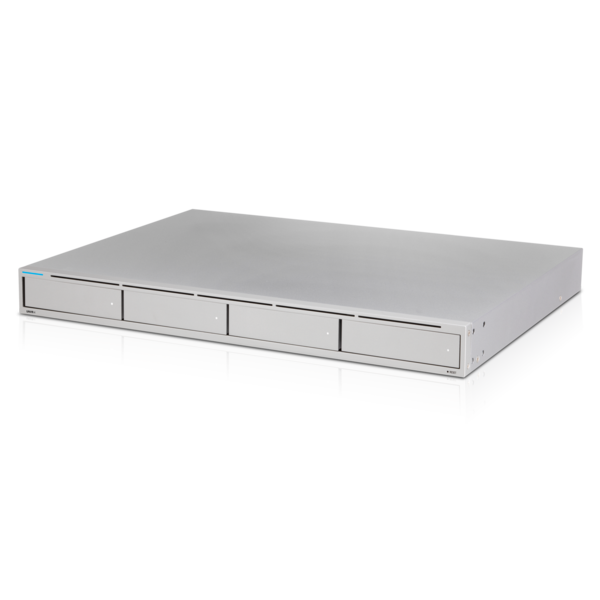

Ubiquiti UniFi Protect Network Video Recorder - 4x 3.5" HD Bays

Key Features

• (4) 2.5"/3.5" Drive bays

• (1) 10G SFP+ port

• (1) Gigabit RJ45 port

• 1U rackmountable (kit included)

• Plug and Play UniFi Protect system with NVR

• Automated secure RAID 1 or RAID 5 configuration

• Supports USP-RPS for PSU failover

Usage

The UniFi® NVR is an enterprise network video recorder that integrates an NVR, the UniFi Protect software, and a 4-drive bay.

UNVR unifies enterprise-class data protection and scalable storage with simple Plug and Play integration using the intuitive UniFi Protect software.

From a desktop computer or mobile device, you can access your surveillance recordings from virtually anywhere using the intuitive graphical user interface. The mobile app is available for iOS and Android-based devices.

The drive bays are easily accessed from the front panel, so hard drive mounting and maintenance are simple. Using four 8 TB drives in a RAID 5 configuration, the UNVR can provide up to 30 days of 4k video storage for 15 cameras or Full HD video storage for 50 cameras.

Specifications

Mechanical Hardware

• Dimensions 442.4 x 325 x 43.7 mm (17.4 x 12.8 x 1.7")
• Weight Without Rackmount Brackets: 5.11 kg (11.27 lb)
• With Rackmount Brackets: 5.20 kg (11.46 lb)
• Enclosure Material SGCC Steel Processor Quad-Core ARM® Cortex ® -A57 at 1.7 GHz
• System Memory 4 GB On-Board Flash Storage 8 GB Max.
• Power Consumption 100W Max.
• Power Budgetfor Drives 75W
• Power Method (1) Universal AC input, 100-240VAC, 2A Max, 50/60 Hz (1) USP-RPS DC input, 11.5VDC, 10.43A Power Supply AC/DC, Internal, 120W
• Networking Interfaces (1) 10/100/1000 Mbps RJ45 Ethernet (1) 1/10 Gbps SFP+ Ethernet
• Management Interface Ethernet In-Band Management
• ESD/EMP Protection Air: ± 12kV, Contact: ± 8kV
• Operating Temperature -5 to 40° C (23 to 104° F)
• Operating Humidity 5 - 95% Noncondensing
• Certications FCC, CE, IC

LEDs

• System (1) Power, Blue/White Flashing White: Bootup in Progress Flashing Blue/White: Firmware Upgrading Steady White: Factory Defaults, Awaiting Adoption Steady Blue: Device is Adopted
• Ethernet Green: 1000 Mbps, Amber: 10/100 Mbps
• SFP+ White: 10 Gbps, Green: 1 Gbps
• HDD Amber: Disk Error, White: Disk Detected
• RPS Blue: Ready
