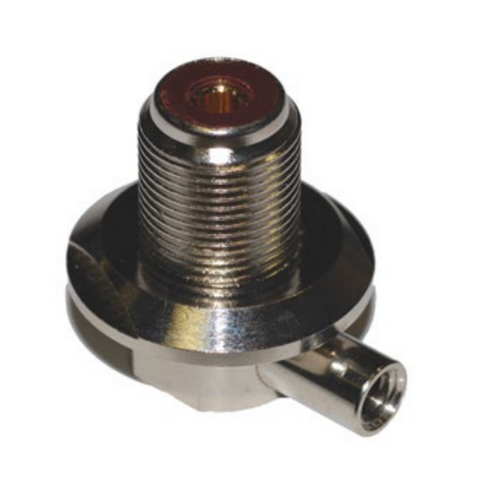

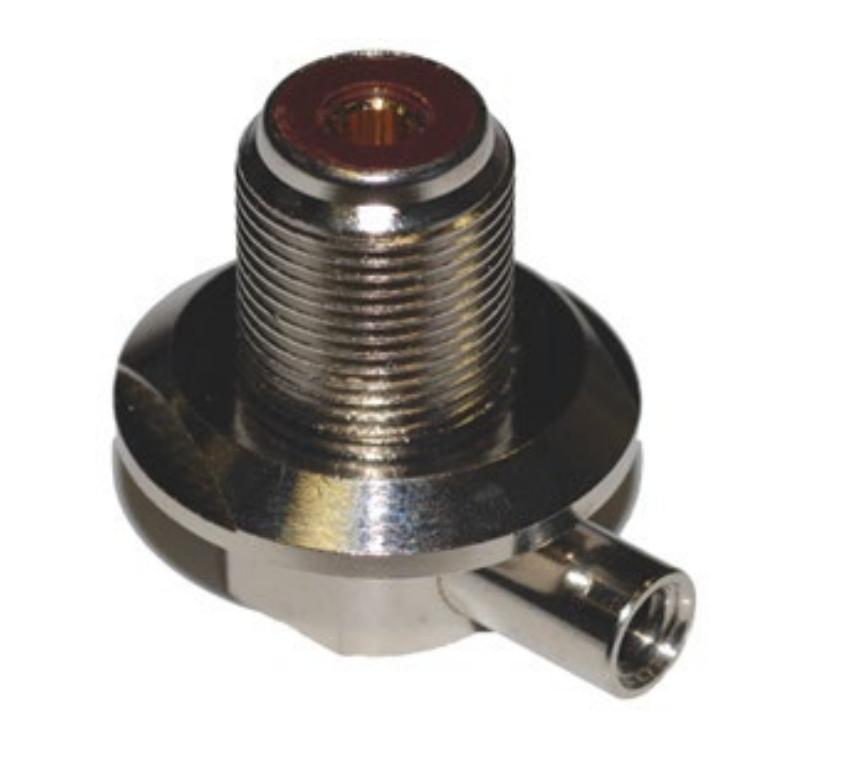

UHF Socket for RG58 L- type, Panel Screw Mount



Key Features

  • Nickel Plated brass.

  • Gold plated centre-pin

  • Teflon dielectric

  • Suits Ground Independent Antennas with PL-259

  • Reliable, Robust, Durable

  • Twist on shield connection

  • Bottom cover access for soldering centre pin

  • Useable up to 520MHz.

  • Suits mounts with 16mm holes including all Optional Mountings below.



Usage



  • The 04110L mount is fundamentally an SO-239, intended for installation on various brackets and compatible with antennas featuring built-in PL-259 plugs, while accommodating 5mm style coaxial cables, such as RG58 and LMR195.



Specification Sheet

(04110L)

SKU 04110L
Shipping Weight 0.0450kg
Shipping Width 0.050m
Shipping Height 0.050m
Shipping Length 0.030m
Shipping Cubic 0.000075000m3
