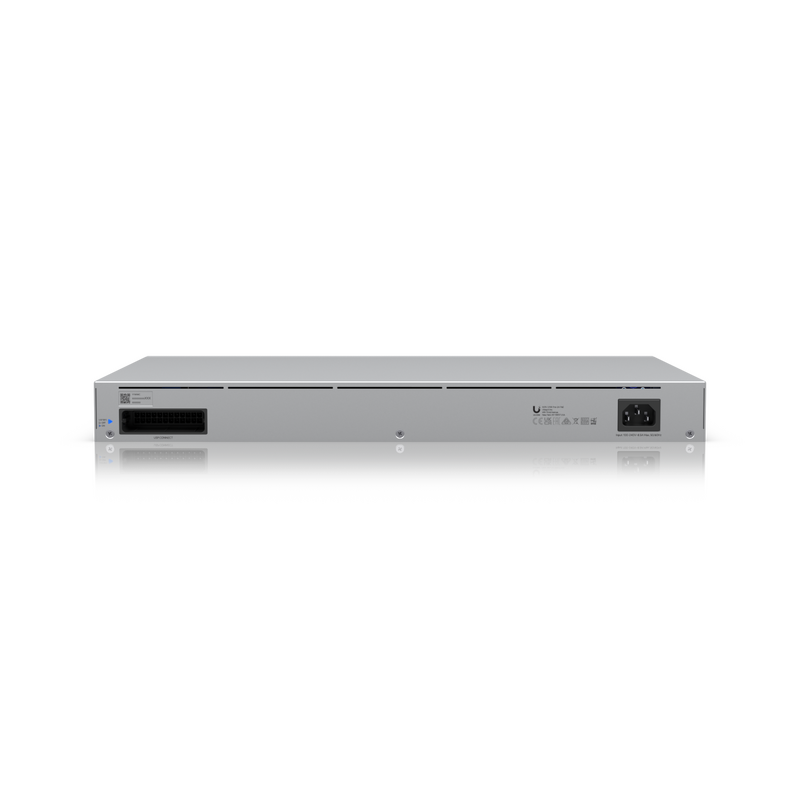

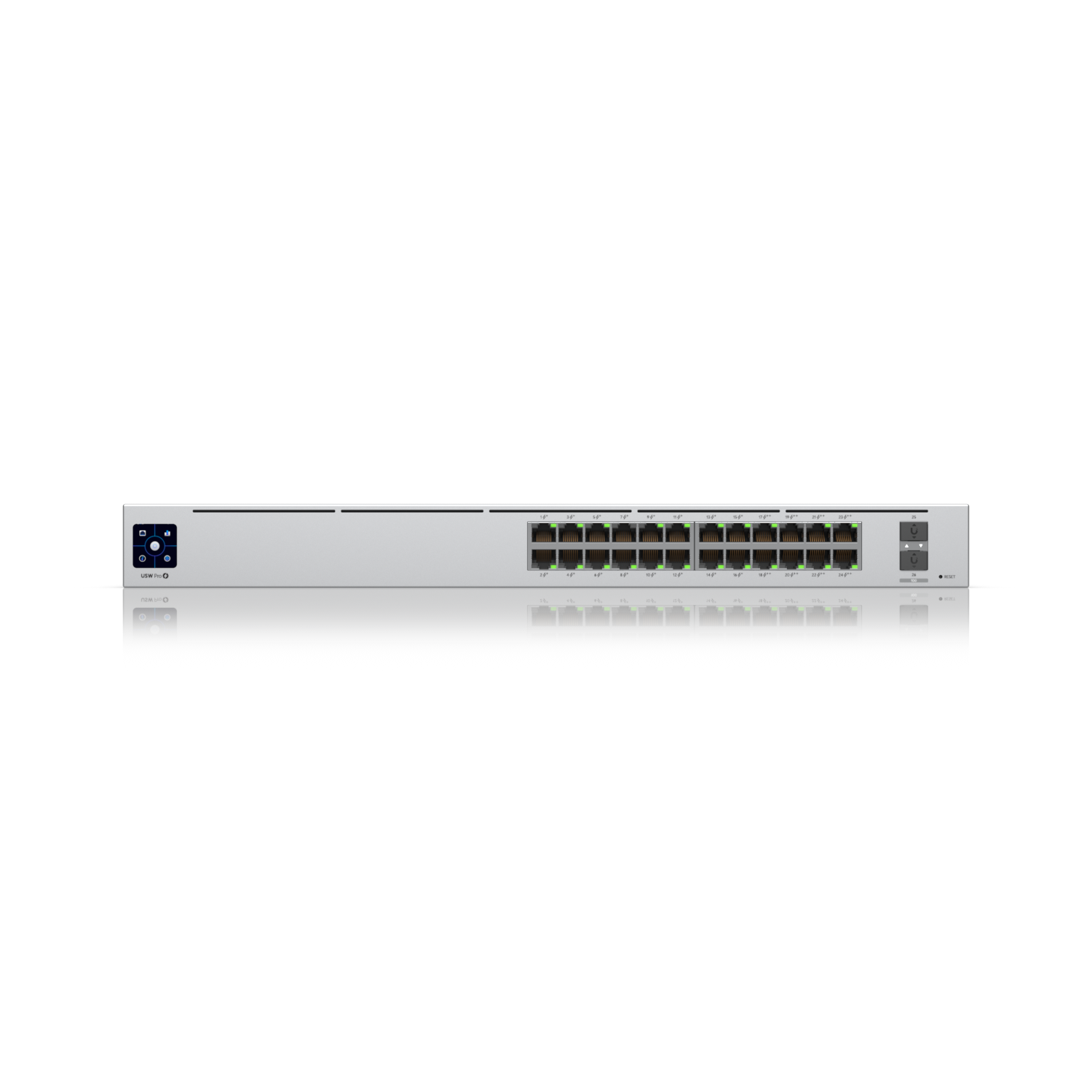

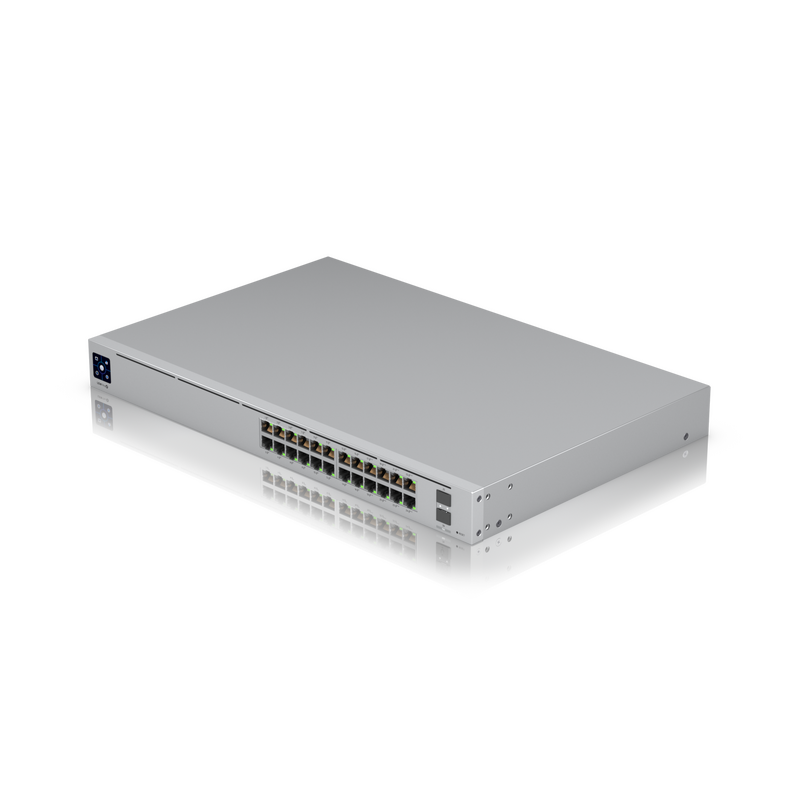

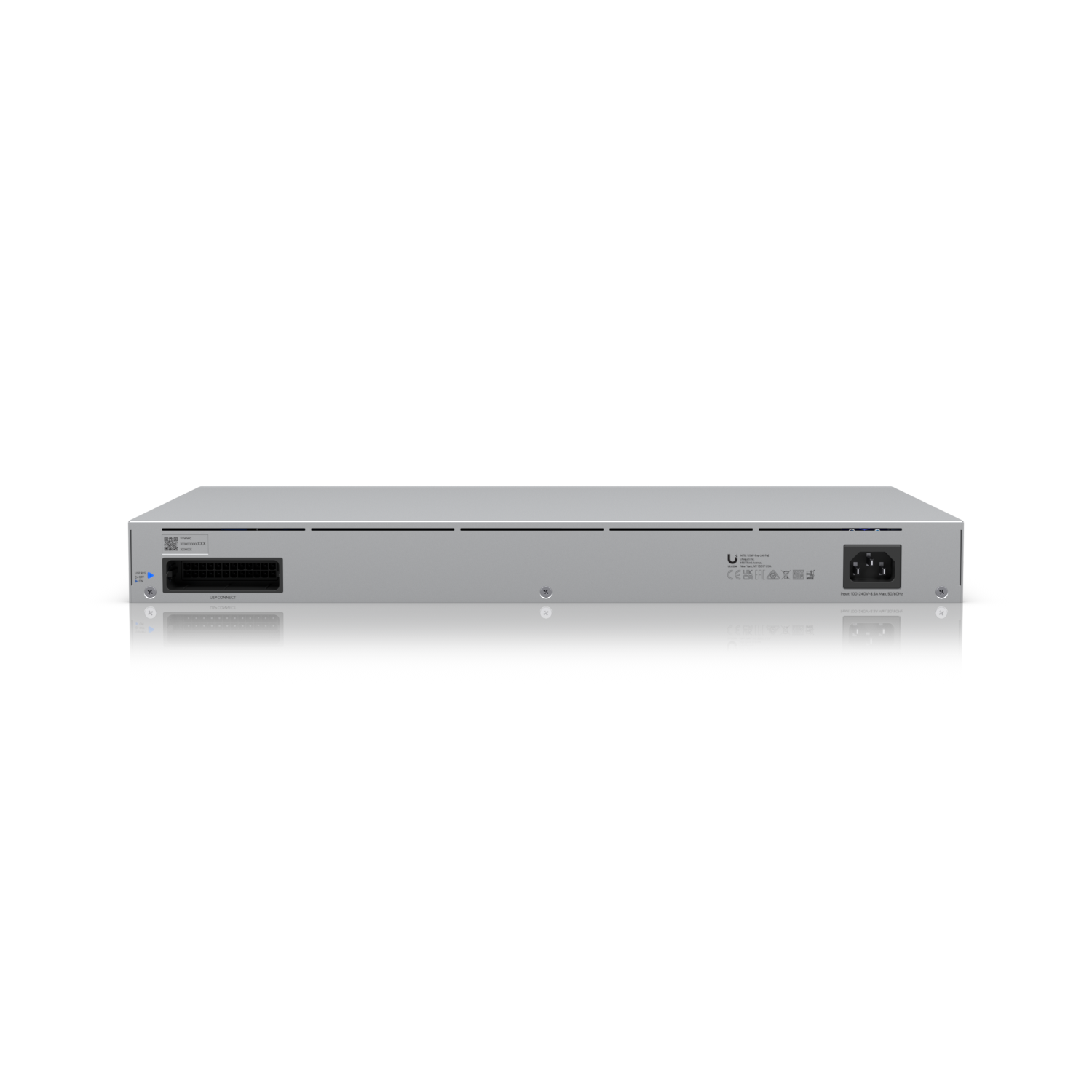

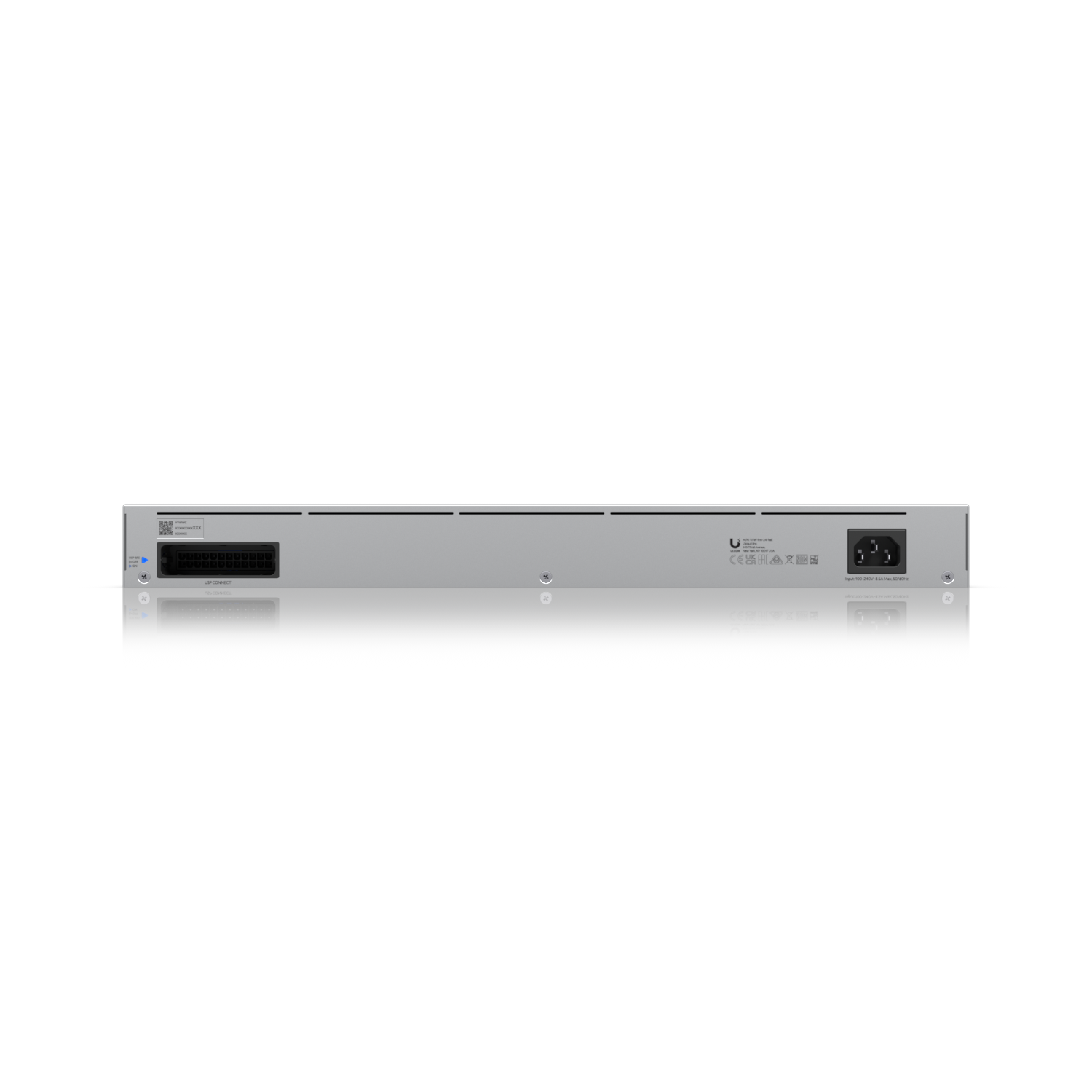

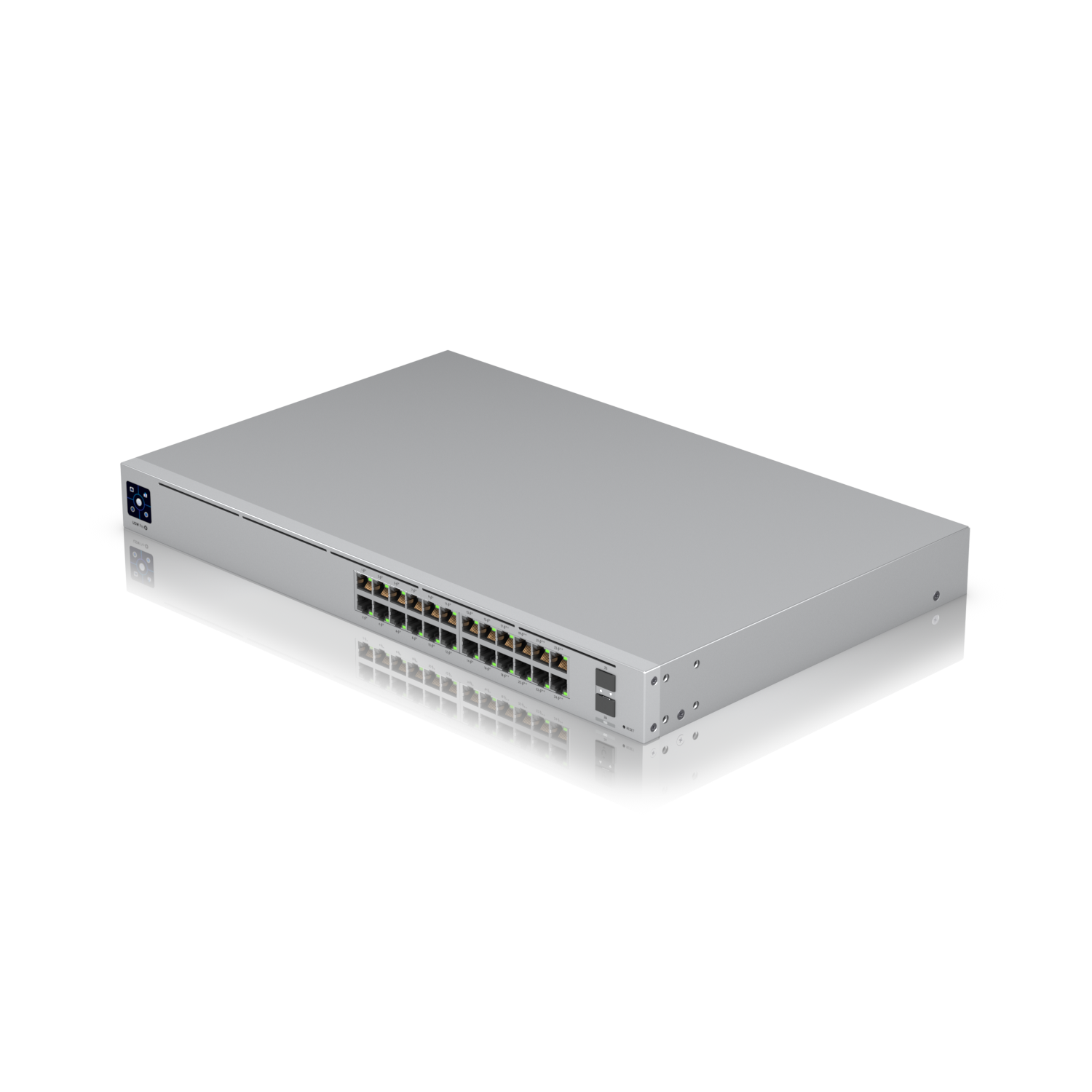

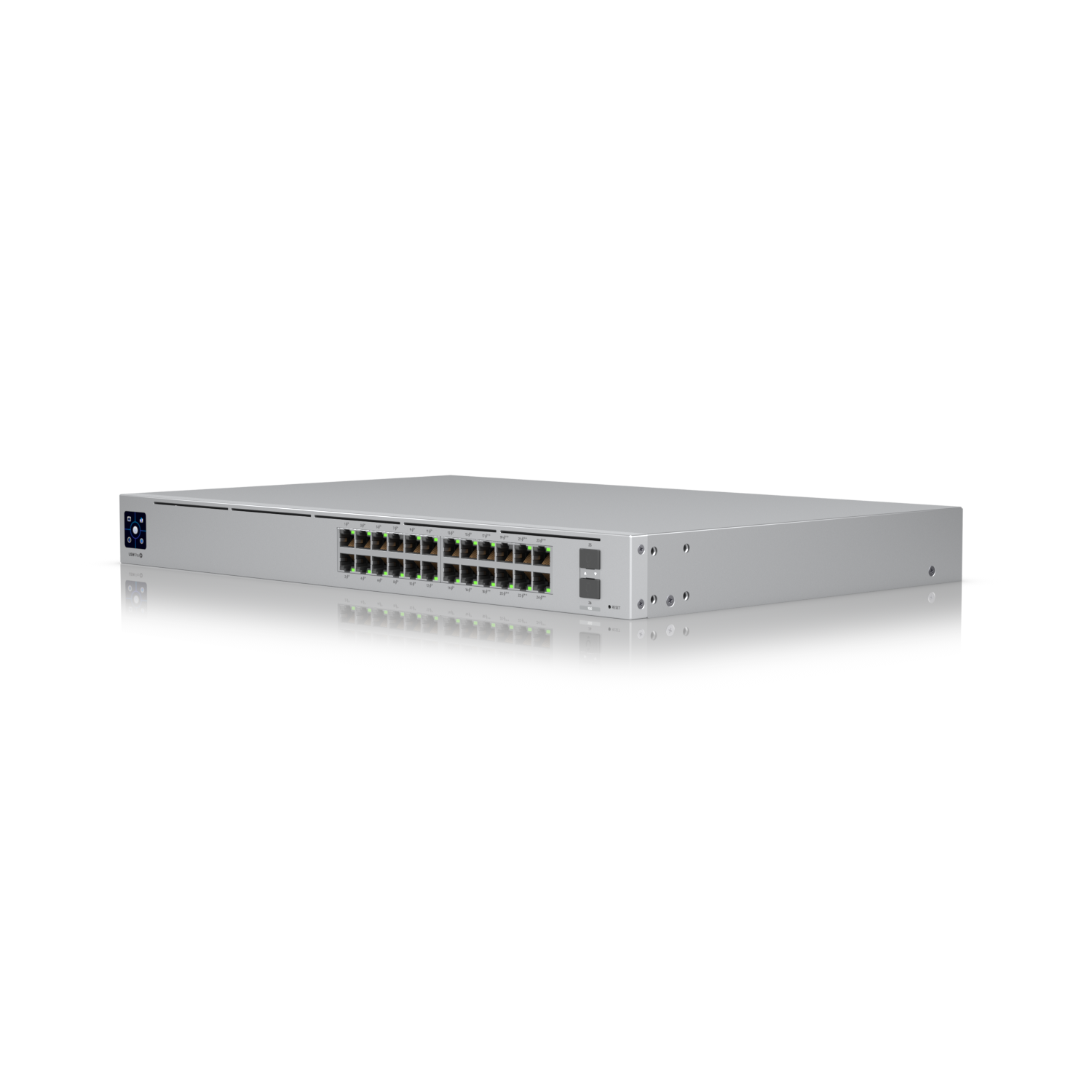

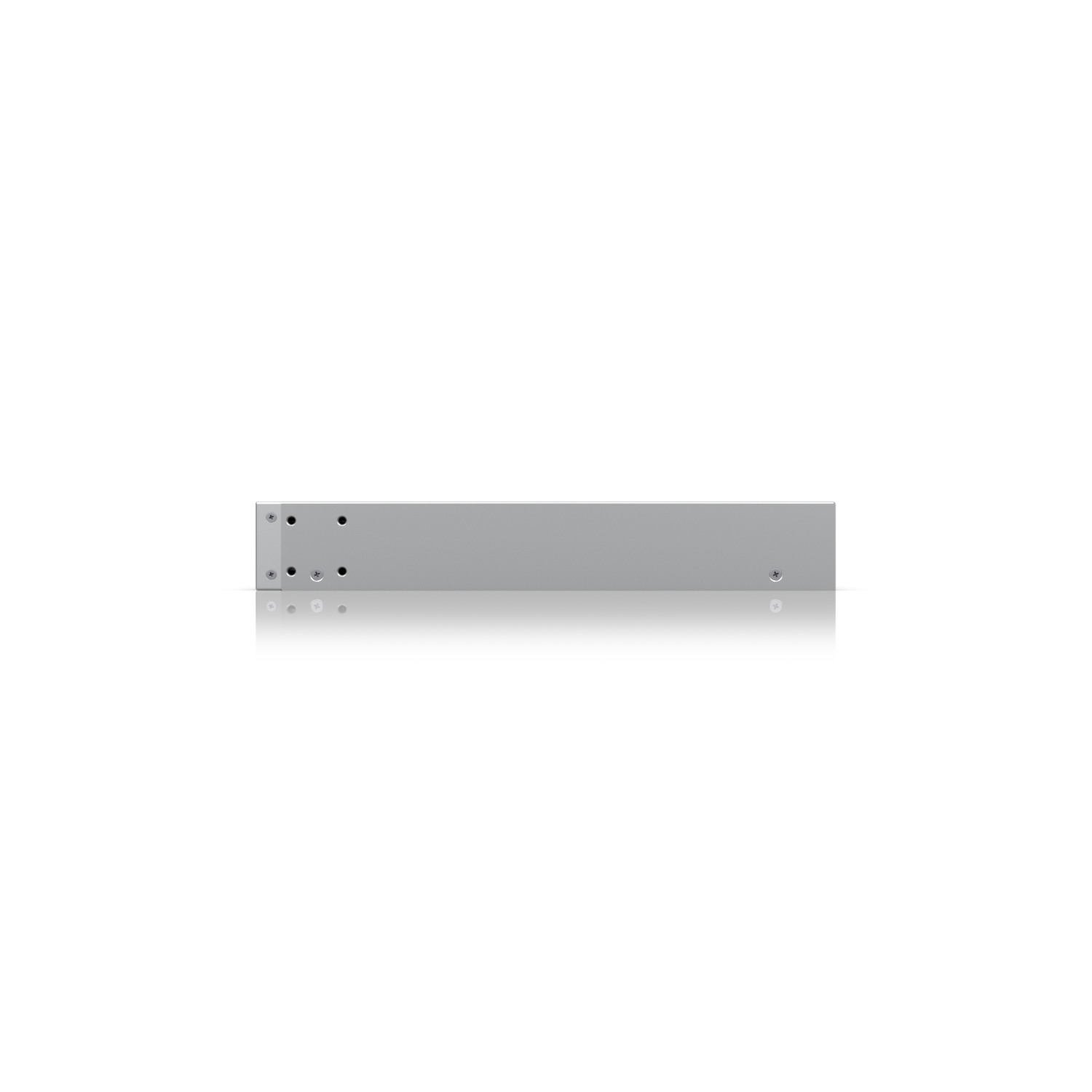

UniFi Pro 24-Port PoE Switch



Key Features

  • (16) Gigabit RJ45 ports with 802.3af/at

  • (8) Gigabit RJ45 ports with 802.3bt

  • (2) 1/10G SFP+ ports

  • 1U Rackmountable (hardware included)



Usage

  • UniFi Switch Pro 24 is a fully managed Layer 3 switch with (24) Gigabit Ethernet ports. (2) 10G SFP+ uplinks offer link aggregation for higher capacity and increased availability.

  • The UniFi Switch Pro 24 features a rich set of Layer 2 capabilities and integrates Layer 3 functionality such as inter-VLAN routing, static routing, and DHCP server.

  • The UniFi Switch Pro 24 is an ideal aggregation and access layer switch for any UniFi solution – it combines innovative near-silent cooling with UniFi SmartPower RPS power redundancy.

  • UniFi Network Controller and UniFi Network mobile app allow admins to configure and monitor virtually all of the switch features in an intuitive graphical user interface from anywhere.



Mechanical
Dimensions 442 x 285 x 44 mm (17.4 x 11.2 x 1.7")
Weight Without mounting brackets: 4.3 kg (9.5 lb)
With mounting brackets: 4.4 kg (9.7 lb)
Enclosure material SGCC steel
Hardware
Management interface Ethernet In-Band
Networking interface (24) GbE RJ45 ports
(2) 1/10G SFP+ ports
PoE interface (16) PoE/PoE+ (Pins 1, 2+; 3, 6-)
(8) 60W PoE++; PoE/PoE+ (Pins 1, 2+; 3, 6-) / PoE++ (Pair A 1, 2+; 3, 6-) (Pair B 4, 5+; 7, 8-)
Total non-blocking throughput 44 Gbps
Switching capacity 88 Gbps
Forwarding rate 65.472 Mpps
Power method (1) Universal input, 100—240V AC, 50/60 Hz
(1) USP-RPS DC input, 52V DC, 7.69A; 11.5V DC, 2.61A
Power supply AC/DC, internal, 450W
Supported voltage range 100—240V AC
Max. power consumption 50W (Excluding PoE output)
Total available PoE 400W
Max. PoE wattage per port by PSE PoE+: 32W
PoE++: 64W
Voltage range PoE mode PoE: 44—57V
PoE+: 50—57V
ESD/EMP protection Air: ± 16kV, contact: ± 12kV
LCM display (1) 1.3" touchscreen
Button Factory reset
Shock and vibration ETSI300-019-1.4 Standard
Operating temperature -5 to 40° C (23 to 104° F)
Operating humidity 10 to 90% noncondensing
Certifications CE, FCC, IC
LEDs
System Status
Ethernet PoE
Speed/link/activity
SFP+ Link/activity
RPS Status

Read More





(USW-Pro-24-PoE)

SKU USW-Pro-24-PoE
Brand Ubiquiti
Shipping Weight 7.5000kg
Shipping Width 0.130m
Shipping Height 0.510m
Shipping Length 0.520m
Shipping Cubic 0.034476000m3
