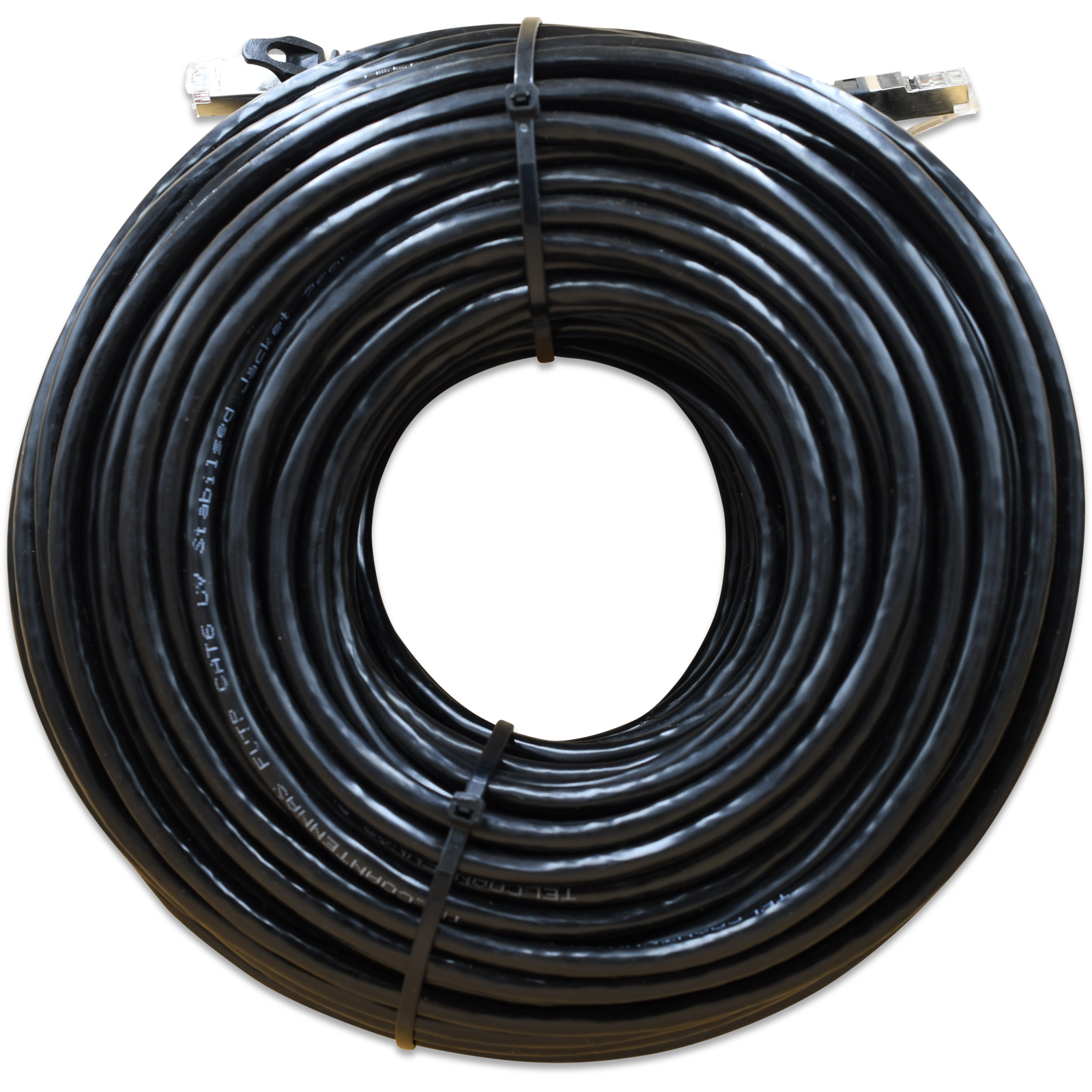

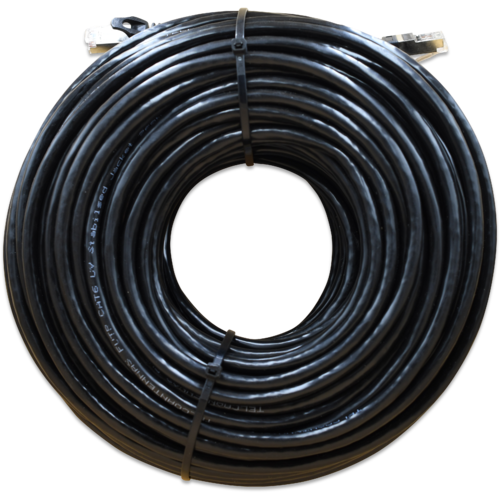

WildCat 40m Cat6a Outdoor SF/TP Shielded Ethernet Cable

  • We developed the Wildcat series specifically for outdoor microwave and point to point/multipoint networking



Key Features

  • Tough, Thick Black UV-stable Outer Jacket

  • 10GBASE-T

  • SF/TP - Shielded Foil Elements with a Braid Screen

  • Shielded RJ45 modular connectors

  • Anti-Crosstalk Divider

  • TIA/EIA 568-B Wiring

  • ESD Drain for Outdoor Installations

  • Reduced EMI Crosstalk and Improved SNR



Usage



  • Protect your network from electronic static discharge, reduce system noise, and improve long distance performance with our WildCat Category 6a SF/TP Ethernet cables

  • Heavily shielded from EMI/ESD and sporting a thick outdoor jacket (7.4mm OD), this cable series is designed for installation in exposed and harsh environments, as well as electrically-noisy indoor environments

  • Wildcat Outdoor Cat6 cables are fully AS/NZS 11801.1:2019 compliant and can be legally installed under your Open Cabling licence.




Specifications / Frequency

Mechanical Specifications

Standards

ANSI/TIA-568-C.2 IEC 61156-5

EN 50288-10-1

EN 50173

ISO/IEC 11801

EN 50575

AS/NZS 11801.1:2019

Conductor Material

99.99% Solid Bare Copper

Conductor Number

8C (4Pairs)

Cable AWG

23

Construction

1/0.585mm (±0.01mm)

Shielding Overlap

Aluminium/Polyester

Braided Shield

Tinned Copper

Insulation Material

Foam

Insulation Thickness

0.37mm

Insulation Diameter

1.38mm (±0.05mm)

Jacket Material

PE

Jacket Colour

Black

Jacket Thickness

0.60mm (±0.05mm)

Jacket Diameter

7.8mm  (±0.3mm)



Electrical Specifications

Max Conductor DC Resistance

73Ω/km

Min. Insulation Resistance

5000MΩ-km

1.0-100.0MHz Characteristic Impedance

100Ω±15

1.0-100.0MHz Delay Difference (20°C)

<45ns/100m

Pair to Ground Capacitance Unbalance

<330PF/100m

Resistance Unbalance Between Pairs

<4%

Max Mutual Capacitance

5.6nF/100m

Max DC Loop Resistance

19.2Ω/100m

Tensile Strength

>16.5Mpa

Velocity of Propagation NVP

78%

Read More



ACMA Austel compliant LAN ethernet cables

(C6a-SFTP-40)

SKU C6a-SFTP-40
Brand Telco Antennas
Shipping Weight 1.8000kg
Shipping Width 0.250m
Shipping Height 0.250m
Shipping Length 0.100m
Shipping Cubic 0.006250000m3
