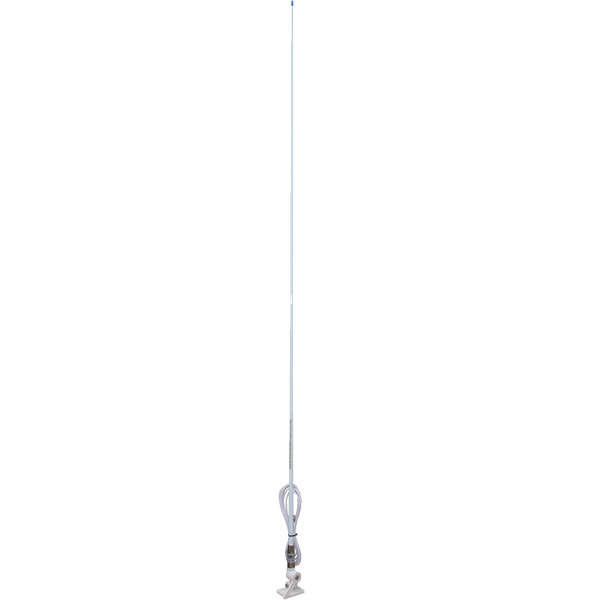

ZCG Scalar 2.2m 27MHz Marine Band Antenna

Key Features

• 4.5m white RG58 cable with FME Female connector

• 2.1dBi gain

• Full chromed brass ferrule

• Supplied with toughened plastic MM1 Marine Deck Mount

• All white fiberglass construction

• 100% Australian made.

Usage

• Suitable for 27.88 MHz marine radio communications, this ground independent deck mount antenna is a single piece construction

• The internal radiator is solid copper and the end fed half wave design provides excellent performance

• All components are of the highest quality to ensure long term survival in the harsh marine environment

• These antennas will deliver reliable performance for many years.

Specifications / Frequency

Electrical Specifications

• Frequency Range: 27-28MHz

• Input Impedance: 50Ω

• VSWR: <1.5:1

• Polarisation: Vertical

• Radiation: Omnidirectional

• Maximum Power: 25Watts

Mechanical/Environmental Specifications

• Construction: Single piece white fibreglass tapered radome, internal copper radiator, chromed brass ferrule with 1"–14 UNS female thread

• Cable: 4.5m White RG58 coaxial

• Connector: UHF connector supplied (unterminated)

• Length: 2200mm Weight: 1kg

Connection

• This antenna has a 4.5m cable that terminates with an FME Female connector

• The FME Female connector is the most common type of connector for mobile antennas and mates with the FME Male connector found on patch leads and phone cradles.

Important

• Special Delivery Information - this product is over 2m in length and must be sent by specialist freight companies - understandably a 2m long cardboard tube is easily damaged so this product is shipped in a custom made PVC enclosure

• Shipping of this item is very expensive, irrespective of whether we're shipping it to Sydney metro, or to Canada.

Contact us:

• Please email us if you would like a shorter length of cable, or a different connector so we can customise this antenna for you.
