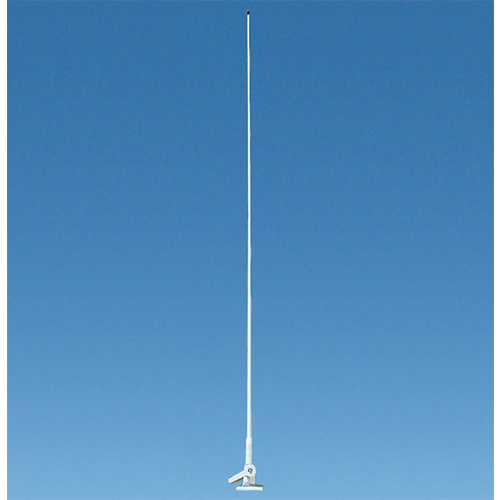

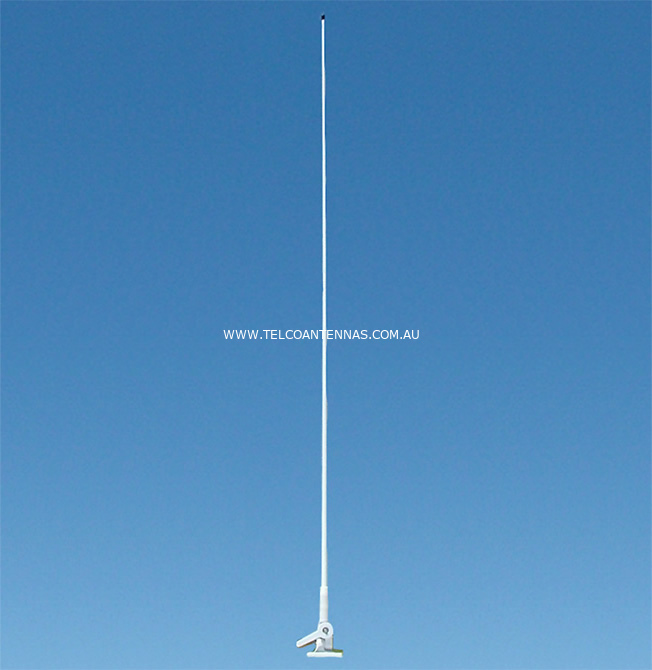

ZCG Scalar 2.1dBi VHF AIS Antenna



Key Features



  • Tuned for both Class A and Class B

  • Supplied with toughened plastic MM1 Marine Deck Mount

  • All white fiberglass construction

  • Australian made.



Usage



  • CM162AIS is a marine deck mount antenna factory tuned for the AIS Automatic Identification System operating in the VHF range 161.9 to 162.1 MHz.

  • The single piece white fibreglass radome stands 1.4 metres tall and the antenna delivers 2.1 dBi gain.

  • 300mm of white RG58 low loss cable side exits from the folding deck mount base and an N-Type Female connector is fitted to the cable for easy installation.



What is the Marine Automatic Identification System?



  • The Marine Automatic Identification (AIS) System, is a Very High Frequency (VHF) radio broadcasting system that transfers packets of data over the VHF data link (VDL) and enables AIS equipped vessels and shore-based stations to send and receive identification information that can be displayed on an electronic chart, computer display or compatible radar

  • The AIS Class A system is mandatory for vessels over 300 gross tonnage, whereas Class B has been developed for vessels such as work craft and pleasure craft with limited functionality

  • All components used are of the highest quality to ensure long term survival in the harsh marine environment

  • These antennas will deliver reliable performance for many years

  • The MM1 folding deck mount is supplied as standard and is constructed from toughened plastic

  • This base folds down in two directions and also swivels in the opposite plane by loosening the stainless steel pivot bolt. This versatility allows the antenna to be mounted in a variety of positions on any flat surface and at any angle using four screws or bolts.



Specifications / Frequency



Network Compatibility
Yes/No
Gain
AIS Class A/B (162MHz)
compatible
2.1dBi
All other networks
not compatible
-



Electrical Specifications



  • Frequency Range: 161.9-162.1MHz

  • Input Impedance: 50Ω

  • VSWR: <1.5:1

  • Polarisation: Vertical

  • Radiation: Omnidirectional

  • Maximum Power: 50Watts



Mechanical/Environmental Specifications



  • Construction: White fibreglass radome, white delrin ferrule

  • Cable: 300mm white RG58 coaxial cable

  • Connector: N Female

  • Temperature: -40°C +70°C

  • Weight: 900g

  • Height: 1.4m

  • Mounting: MM1 deck mount (supplied)



Connection



  • This antenna has a 300mm cable that terminates with an N Female connector.



n female connector

N Female Connector [pictured]



A heads up!



Special Delivery Information:

  • This product is over 1100mm long and can only be delivered by a courier (not Australia Post), therefore we cannot accept a PO Box

  • Please provide an address where someone will be present to sign for the package.



Read More





zcg scalar antennas logo

(ZM14-AIS)

SKU ZM14-AIS
Brand ZCG
Shipping Weight 2.4000kg
Shipping Width 0.100m
Shipping Height 0.100m
Shipping Length 1.400m
Shipping Cubic 0.014000000m3
