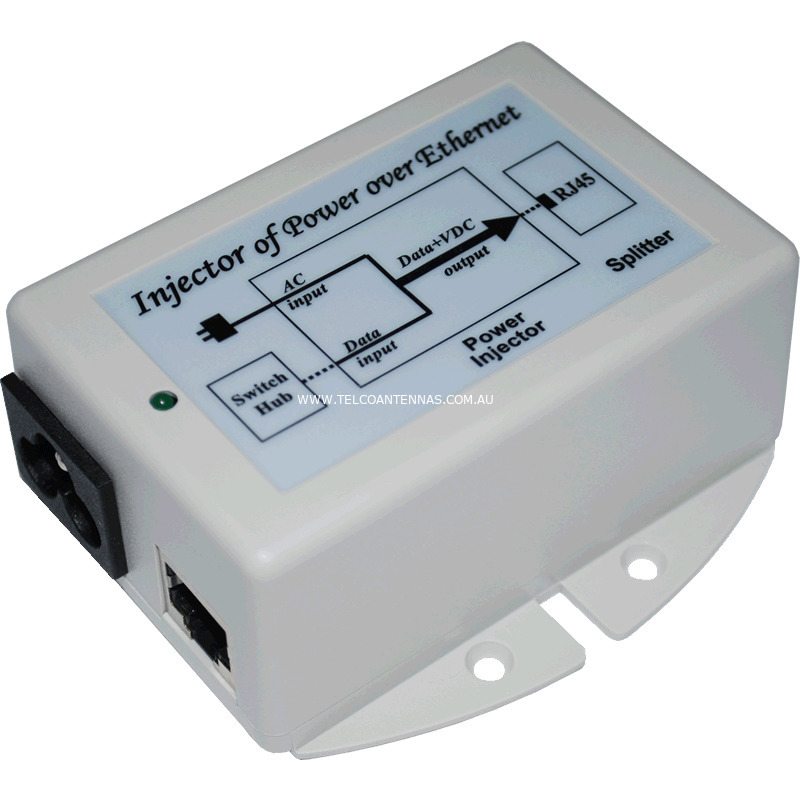

AC-DC Passive Power over Ethernet Injector & Surge Protector


Key Features


  • Drop in replacement for Ubiquiti PoE

  • 10/100/GigE

  • 100-240VAC systems

  • 24VDC 0.8A 802.3af Mode B PoE output (passive)

  • Dual block inputs for connecting 2 power sources

  • Short Circuit, Over Current and Reverse/Over Voltage Protection

  • High Temperature Operation

  • Supplied with 3-pin "clover" 240VAC Australian power plug

  • Ideal for Ubiquiti devices.




  • This series of AC to DC converters are a high reliability solution for those requiring 24VDC Power over Ethernet voltage from a mains AC system

  • They have an integrated POE injector to apply 24VDC to Ethernet cable in 802.3af Mode B (Passive) PoE pin arrangement (no handshake)

  • When using SFTP or FTP shielded Ethernet cables this unit provides inbuilt ESD and surge protection by detecting and arresting charge on the cables GND terminal

  • These units are recommended as a drop-in replacement for standard Ubiquiti PoE injectors in environments where Ubiquiti PoE failure (extremely common) will result in impact to business or critical systems

  • These hardened, industrial grade PoE injectors are strongly recommended for all harsh environment, and remote/regional links.


Electrical Specifications


  • Input Voltage: 100 to 240VAC

  • Input Frequency: 47-63Hz

  • Input Current: 0.45A @ 130VAC 0.25A @ 230VAC

  • Output voltage and current: +24V non-802.3af

  • Max load: 0.8A

  • Power: 19.2W maximum

  • Min load: 0A

  • Load regular percentage: 5%

  • Line regular percentage: 1%

  • Ripple percentage: 1%

  • Noise percentage: 1%

  • Total power: 19.2W

  • Noise bandwidth is from DC to 20Mhz.

  • Ripple & Noise is measured by Paralleling a 0.1Uf metalized capacitor on the test point.

  • Efficiency: 87% min at full load Short-circuit protected output Short GND terminal to prevent damage to power supply Auto-recovery Input fuse protection


Mechanical/Environmental Specifications


  • Construction: ABS Plastic

  • Operating temperature: -25 to 50°

  • Celsius Storage temperature: -40 to 85°

  • Celsius Operating humidity: 5 to 90%

  • Cooling: Free air

  • Dimension: 86 x 76 x 36mm (L x W x H)

  • Standards: IEC61000-4-2 (ESD) ±15kV (air), ±8kV (contact) / IEC61000-4-4 (EFT) 40A (5/50ns) / IEC61000-4-5 (Lightning) 20A (8/20μs)
