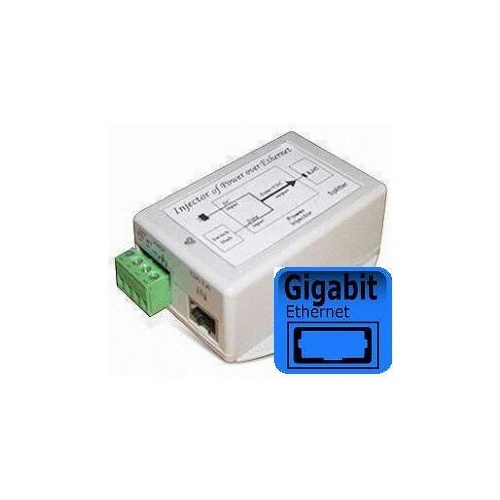

DC-DC Gigabit Passive Power over Ethernet Injector

Formerly MIT-45G-24



Key Features



  • Suits solar power systems

  • 10/100/GigE

  • 9-36VDC systems

  • 24VDC 0.8A 802.3af Mode B PoE output (passive)

  • Dual block inputs for connecting 2 power sources

  • Short Circuit, Over Current and Reverse/Over Voltage protection

  • High temperature operation

  • Ideal for Ubiquiti devices.



Usage



  • This series of DC to DC converters are low cost and highly reliable for those requiring 24VDC Gigabit Power over Ethernet voltage from a 12V battery system

  • They have an integrated POE injector to apply 24VDC to Ethernet cable in 802.3af Mode B (Passive) PoE pin arrangement (no handshake)

  • They have two isolated inputs for connecting 2 power sources, like a primary and backup power source

  • A metal enclosure model is available for industrial applications

  • They accept data-in to a shielded RJ45 Jack and provide data-out and POE power on the shielded RJ45 output jack

  • They work by supplying power on the unused Ethernet pins 4,5(V+) and 7,8(V-).



Electrical Specifications



  • Input voltage: 9 to 36V DC

  • Input current: 2.05A max at 12V DC at F.L 1.0A max at 24V DC at F.L

  • Output voltage and current: +24V non-802.3af

  • Max load: 0.8A Power: 19.2W maximum

  • Min load: 0.01A

  • Load regular percentage: 5%

  • Line regular percentage: 1%

  • Ripple percentage: 1%

  • Noise percentage: 1%

  • Total power: 19.2W

  • Ripple and noise bandwidth: from DC to 20MHz

  • Terminated with 47uF capacitor and 0.1uf MPE capacitor of proper polarity

  • Efficiency: 75% min at 12V/24V DC, input at F.L

  • Short-circuit protected output Short GND terminal to prevent damage to power supply

  • Auto-recovery Input fuse protection

  • Current limit: 120 to 160% at 9V to 36V DC



Mechanical/Environmental Specifications



  • Construction: ABS Plastic

  • Operating temperature: -25 to 50° Celsius

  • Storage temperature: -40 to 85° Celsius

  • Operating humidity: 5 to 90%

  • Cooling: Free air

  • Dimension: 85 x 78 x 36mm (L x W x H)

  • Standards: EN60950-1, FCC Class B, EN55022 Class B



Read More





(MIT-69G-1224BNNN)

SKU MIT-69G-1224BNNN
Shipping Weight 0.8900kg
Shipping Width 0.200m
Shipping Height 0.150m
Shipping Length 0.050m
Shipping Cubic 0.001500000m3
