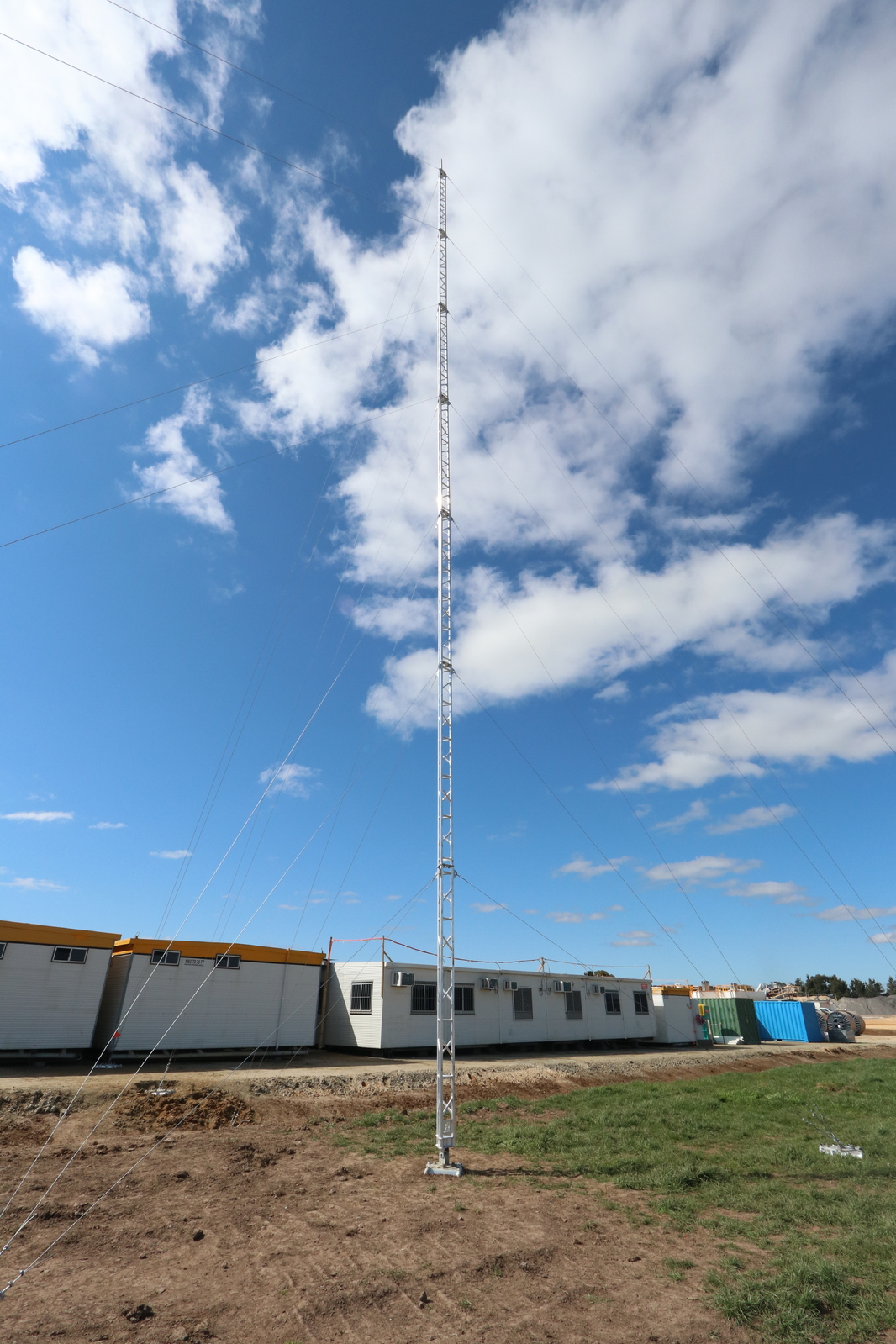

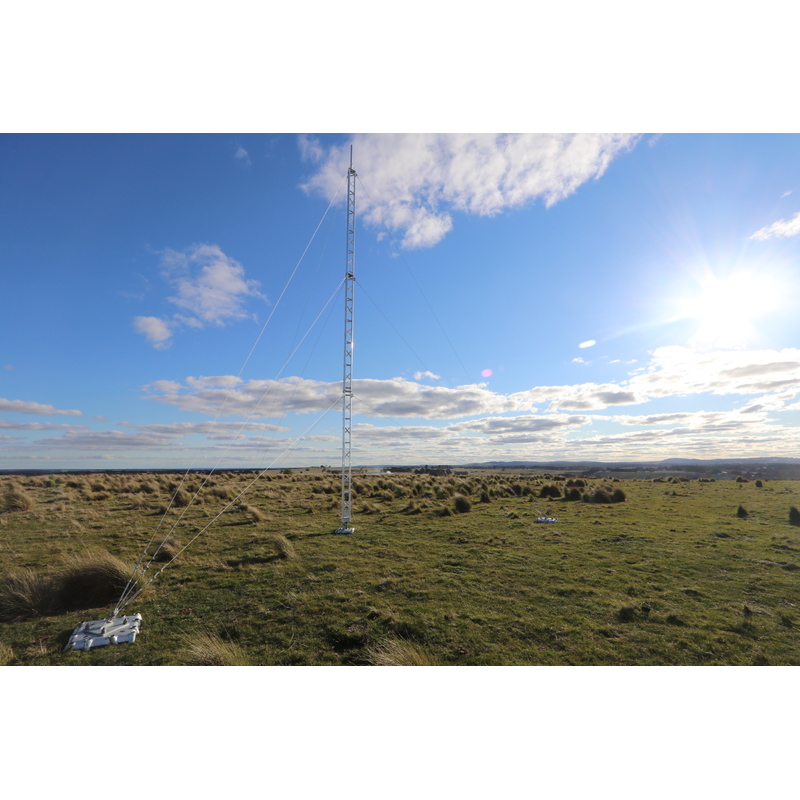

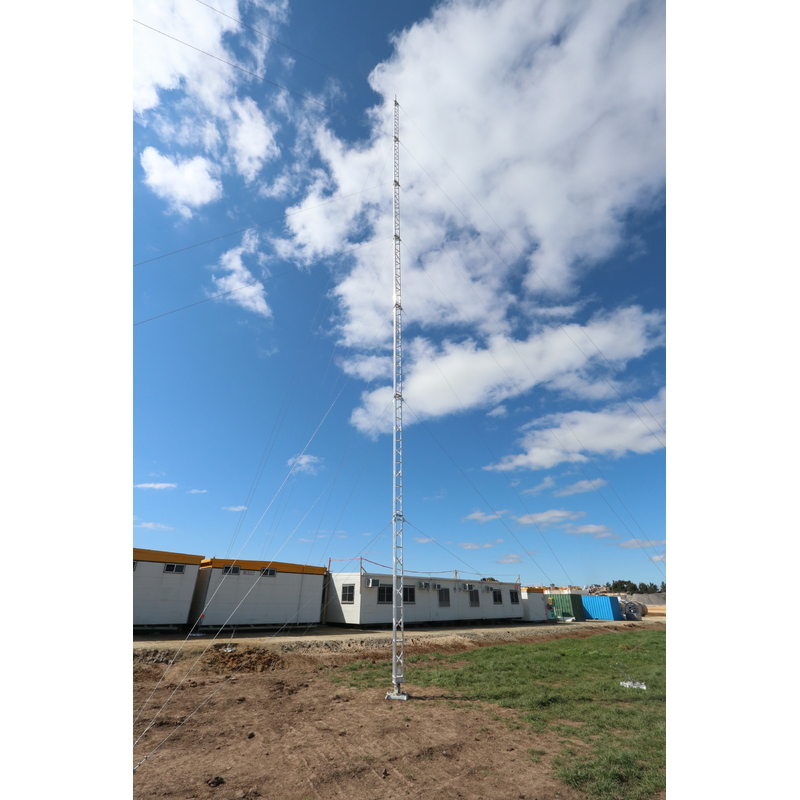

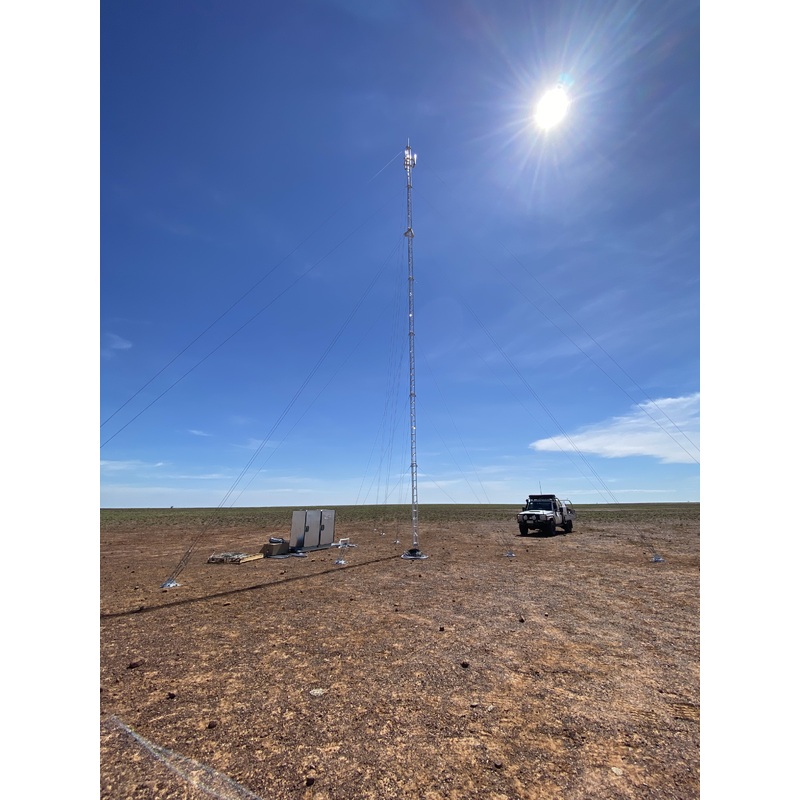

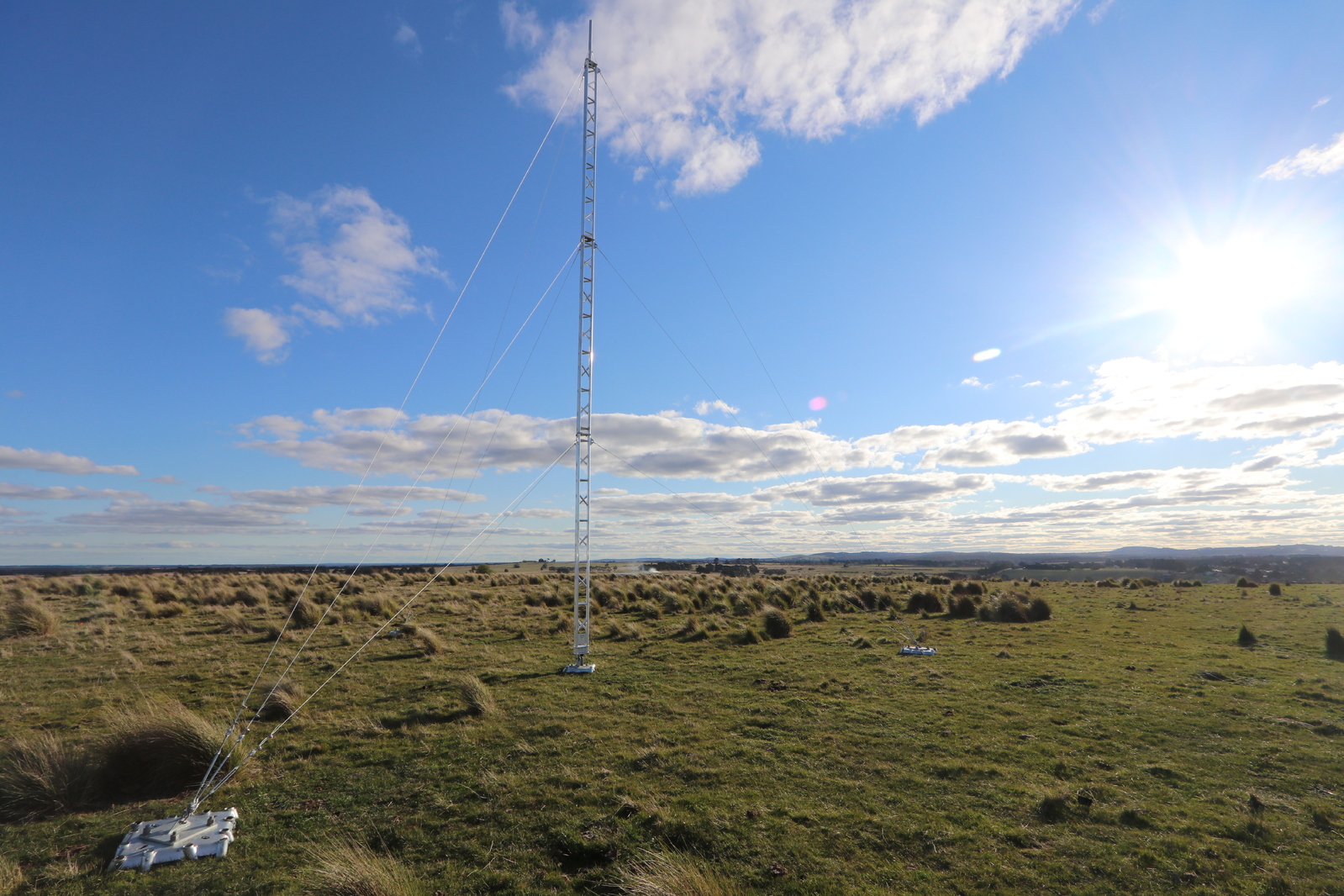

18m Aluminium Guyed Lattice Mast - 210mm Faced Roof Mount or Ground Mount - Light weight Modular Sections


Key Features

  • Engineer Certified to support a variety of communication, ecology and Meteorological equipment in wind regions A through to D

  • Modular design can reach heights from 3m to 21m or enquire for a customised height for your specific application

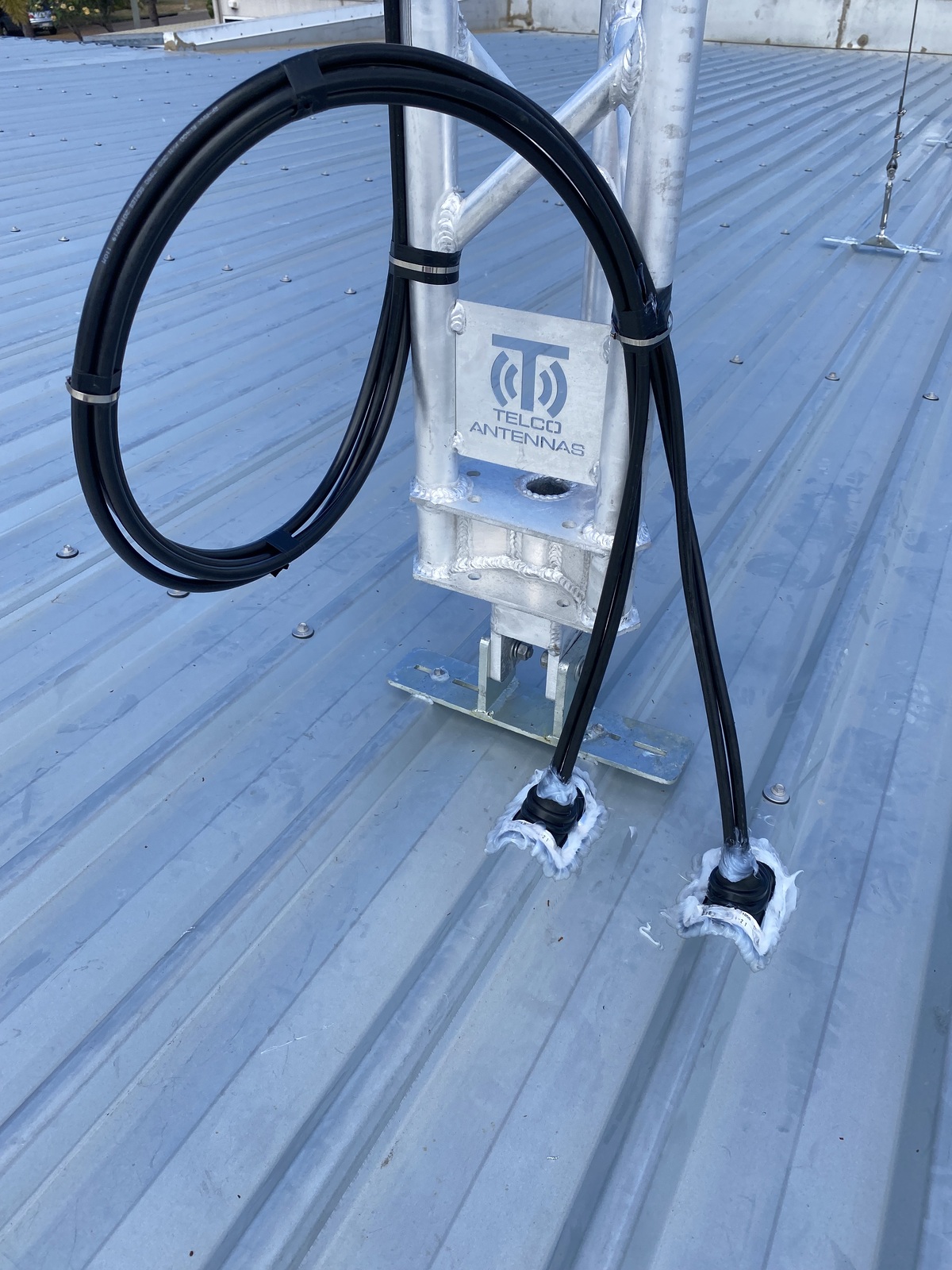

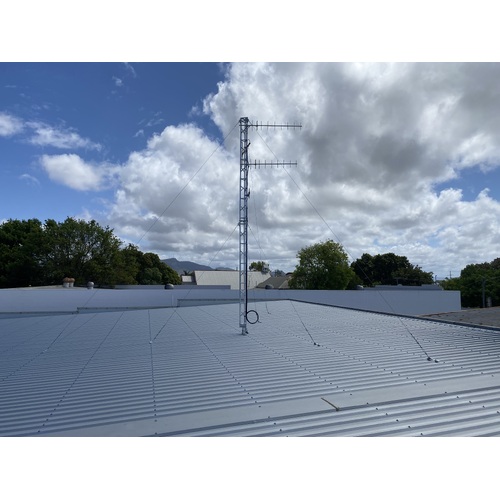

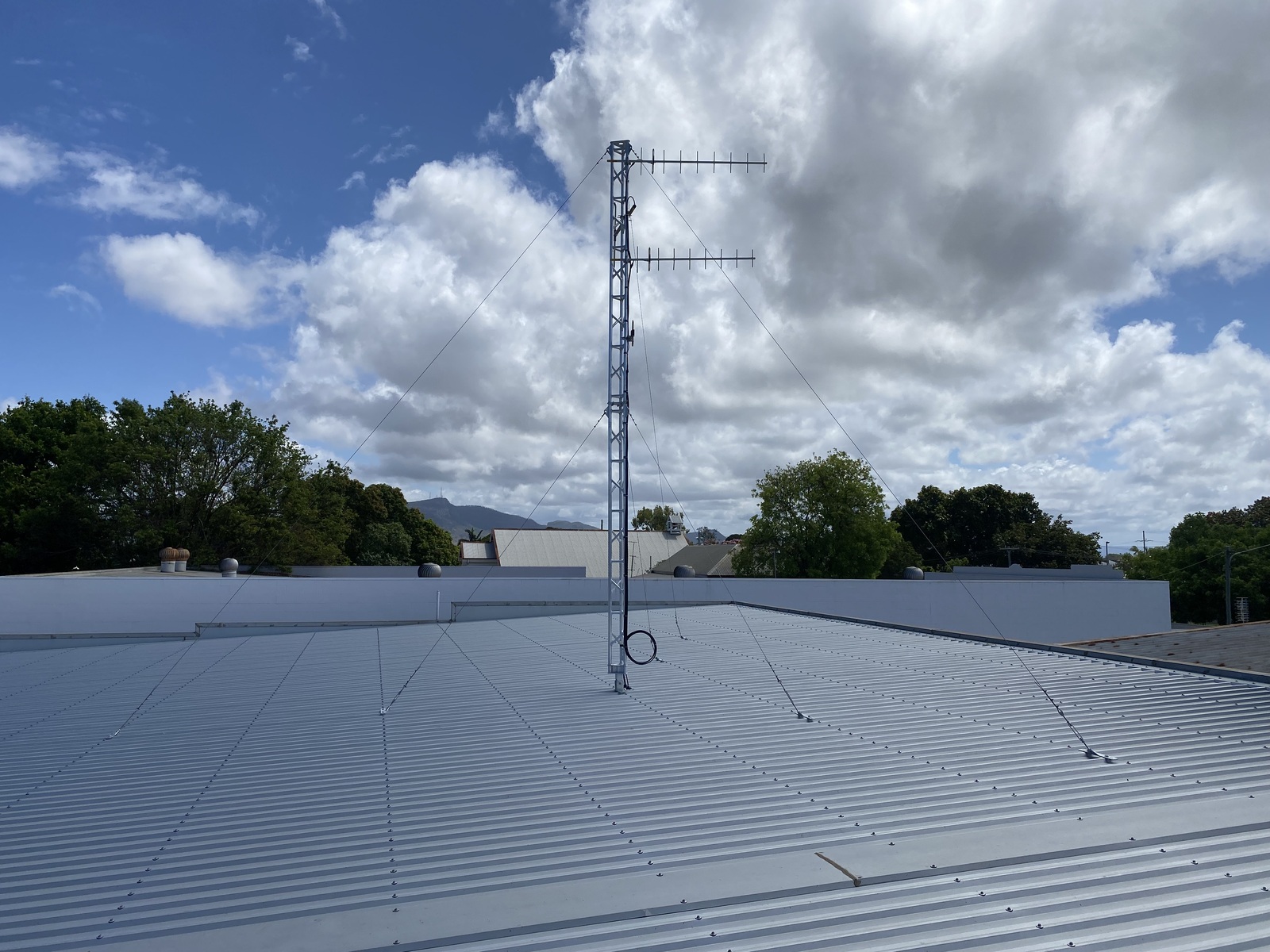

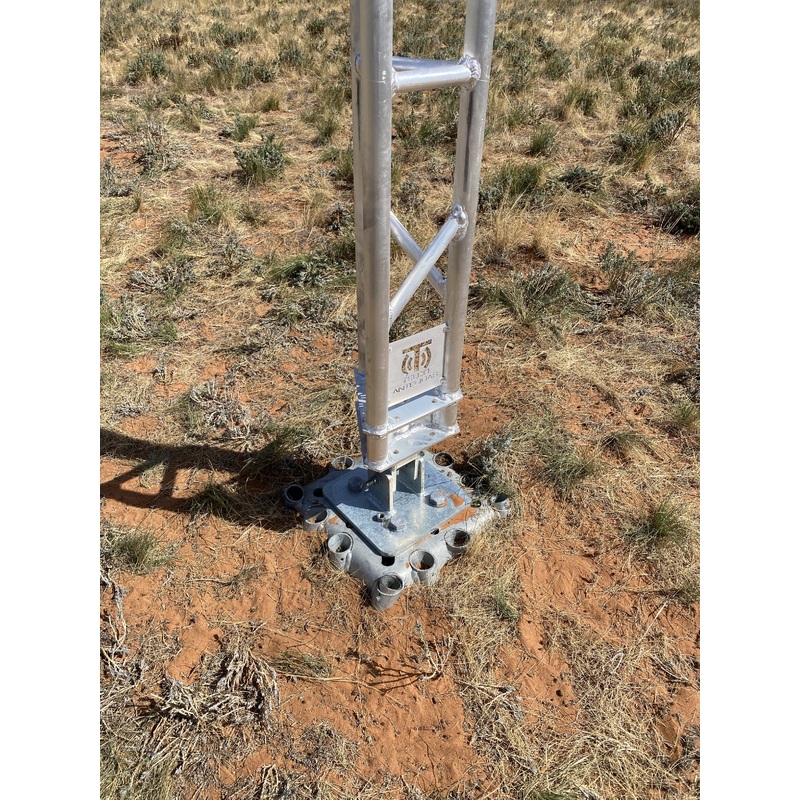

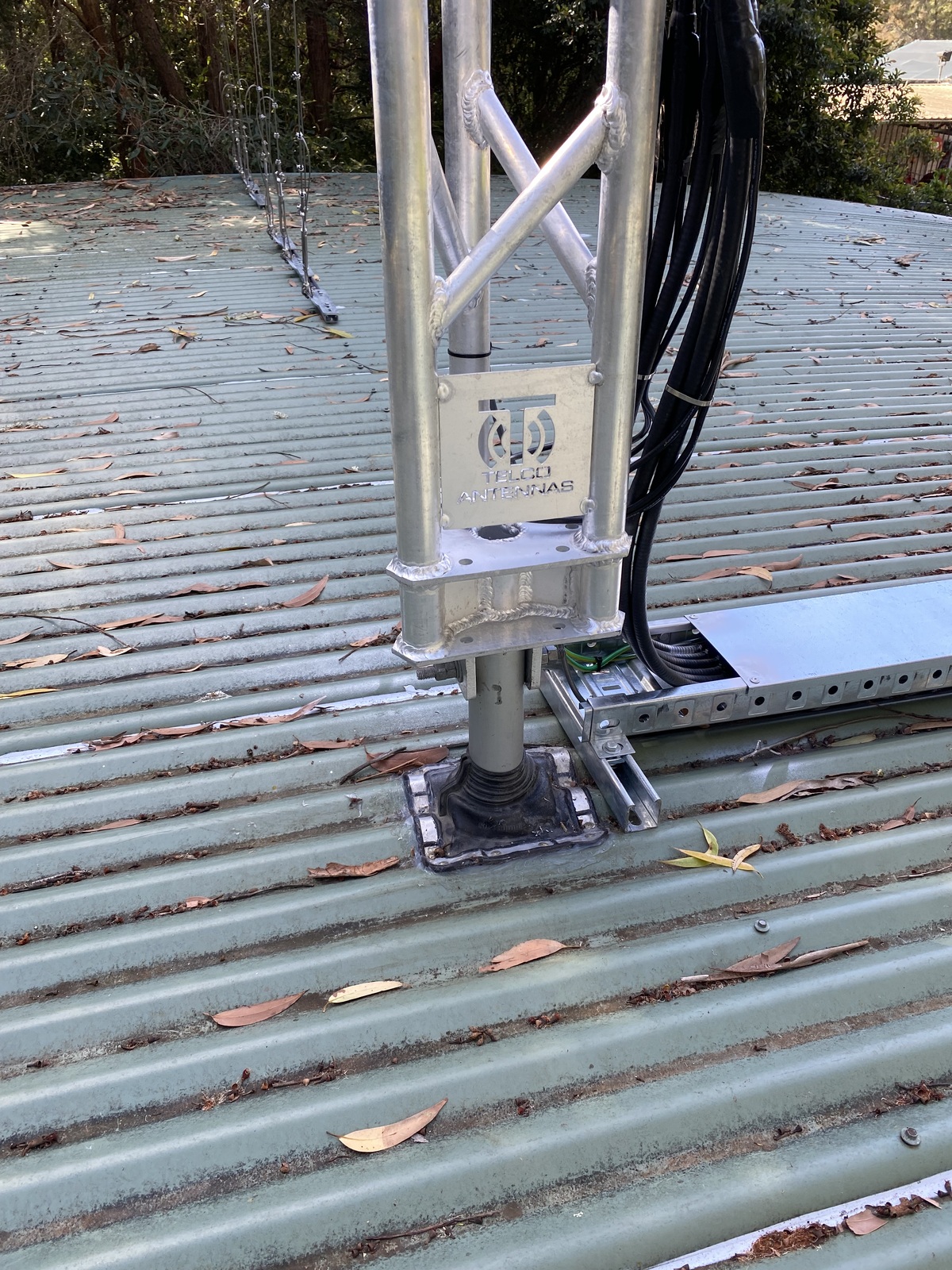

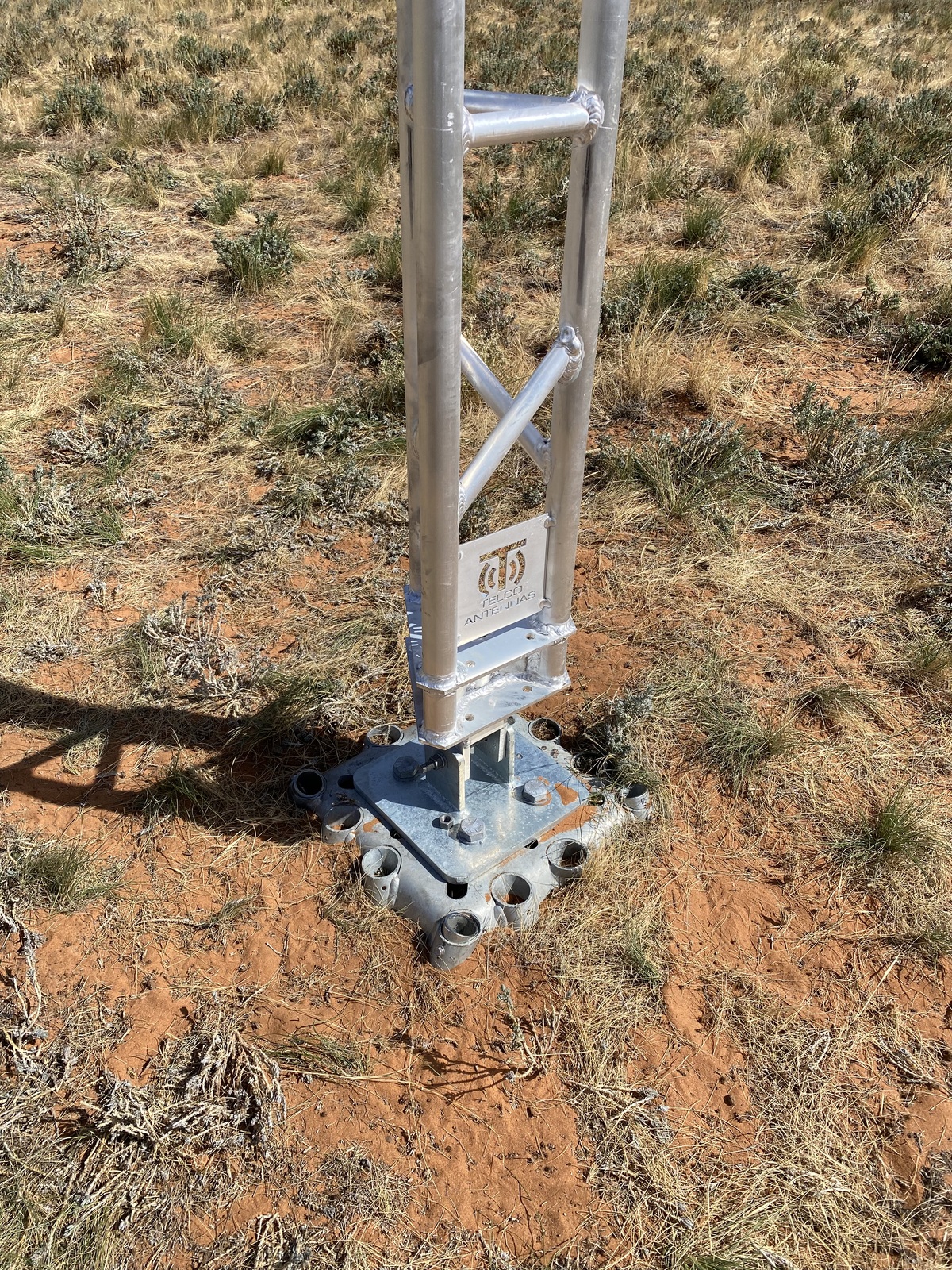

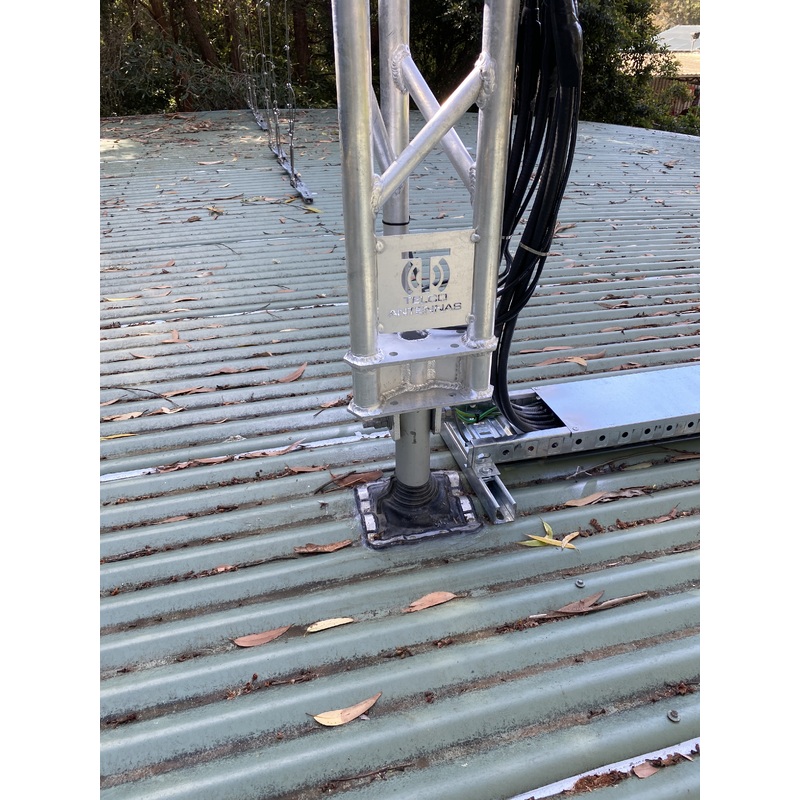

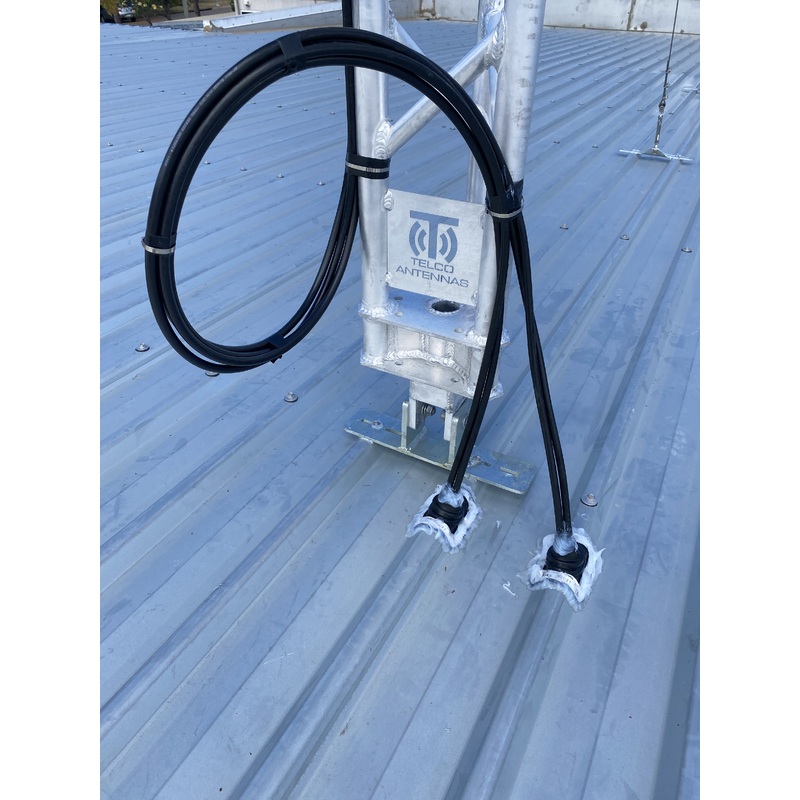

  • Hinged base options for either ground or roof mounted applications

  • Designed and Certified to be climable for ease of installation, maintenence and access to equipment

  • Supplied in a complete kit form including all components required for installation and mounting of your specific equipment, and shipped directly to your preffered location

  • Fabricated in house at Telco Antennas to ensure masts and components are always on hand and ready for shipping



Applications include, but arent limited to :

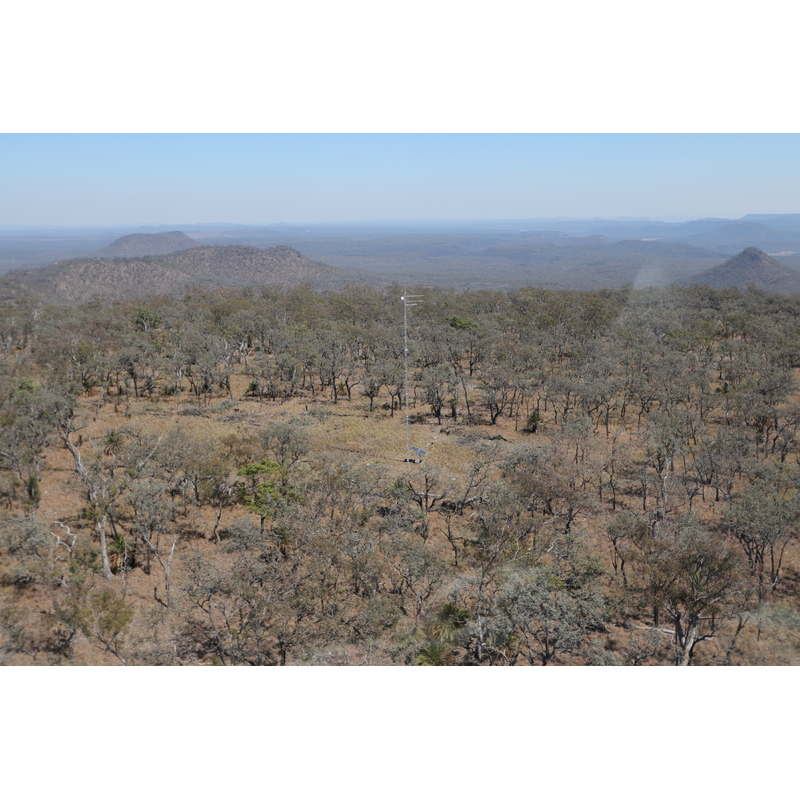

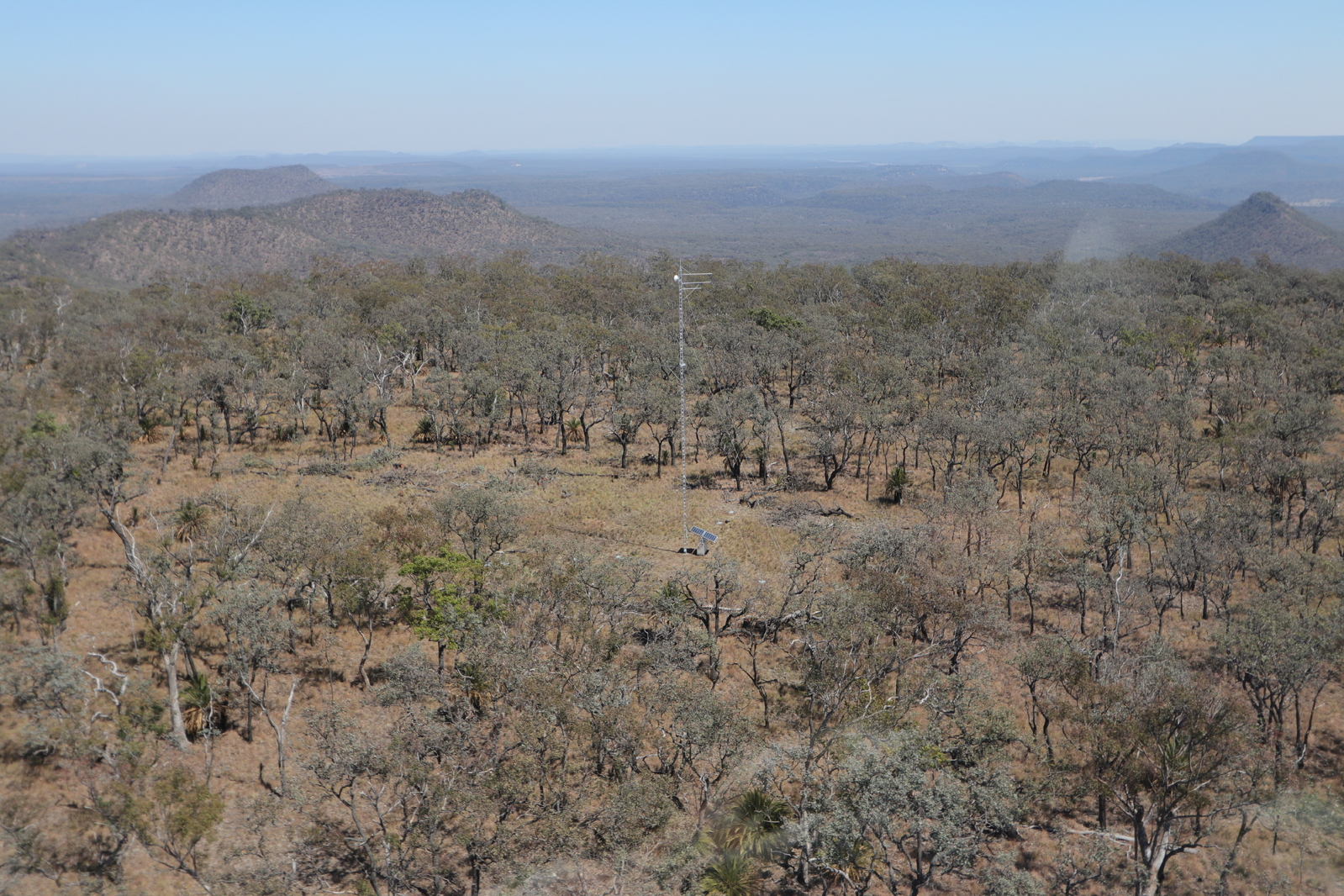

  • Meteorlogical and Ecology applications for scientific data collection
  • Surveilance systems

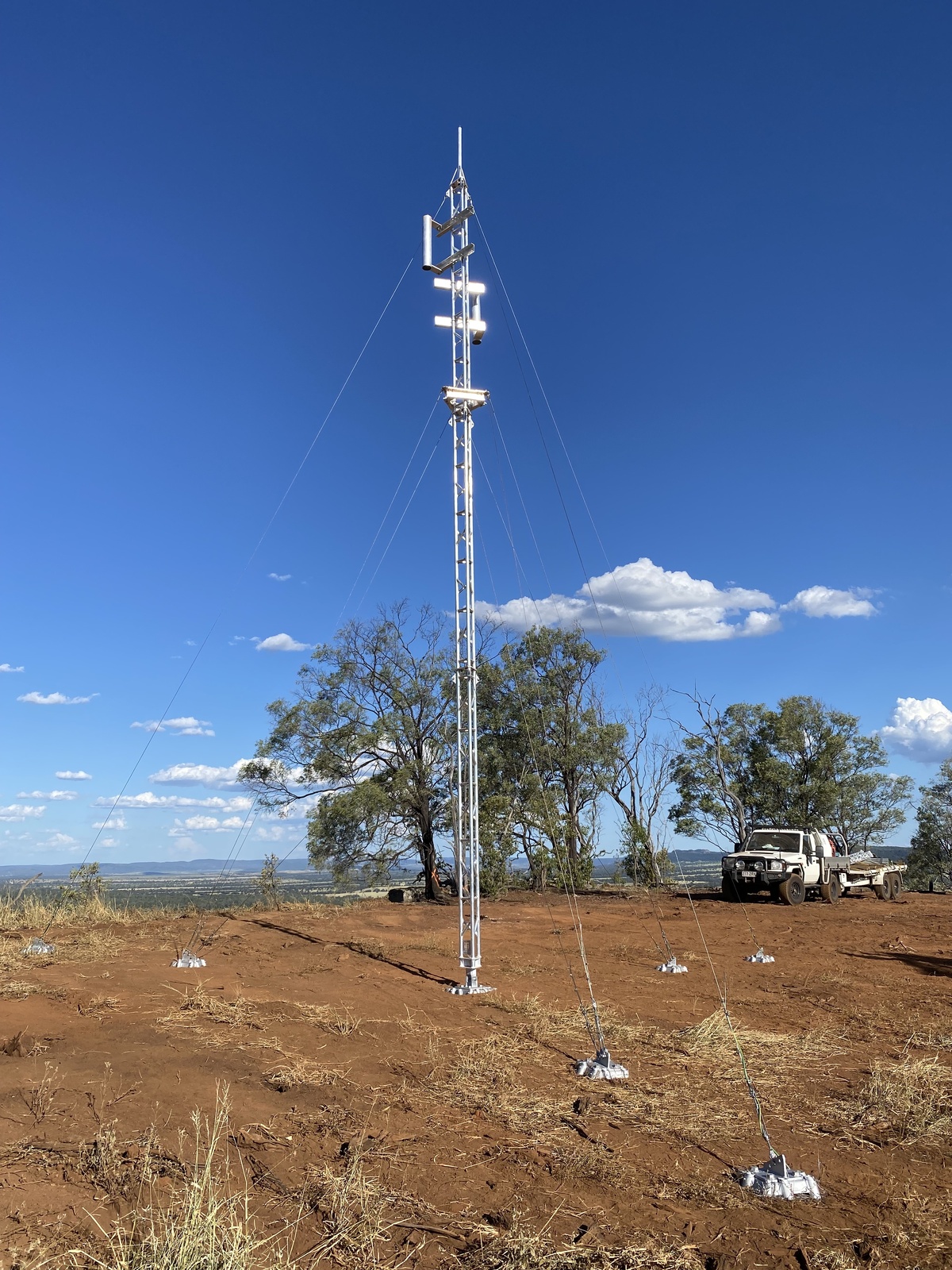

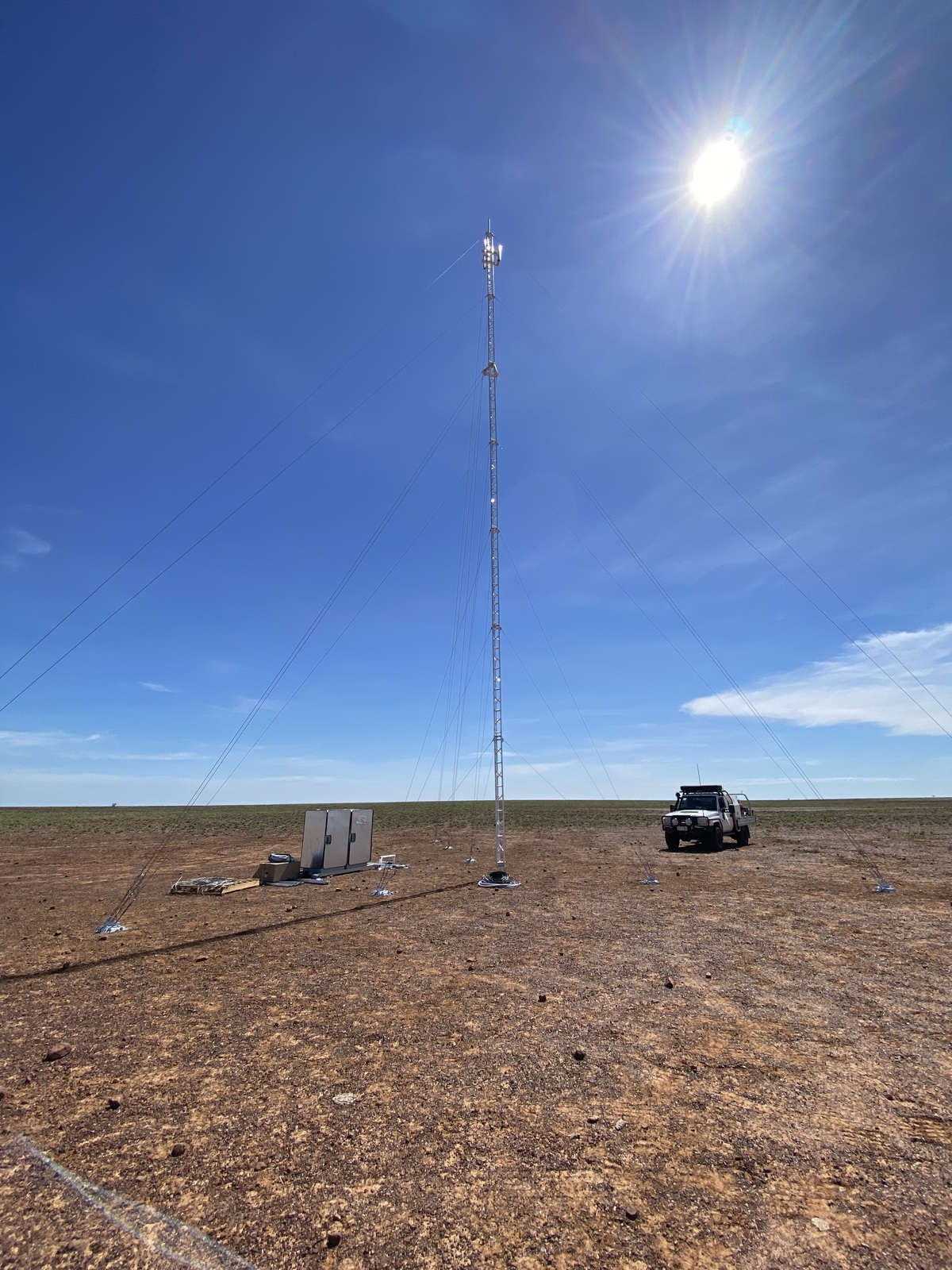

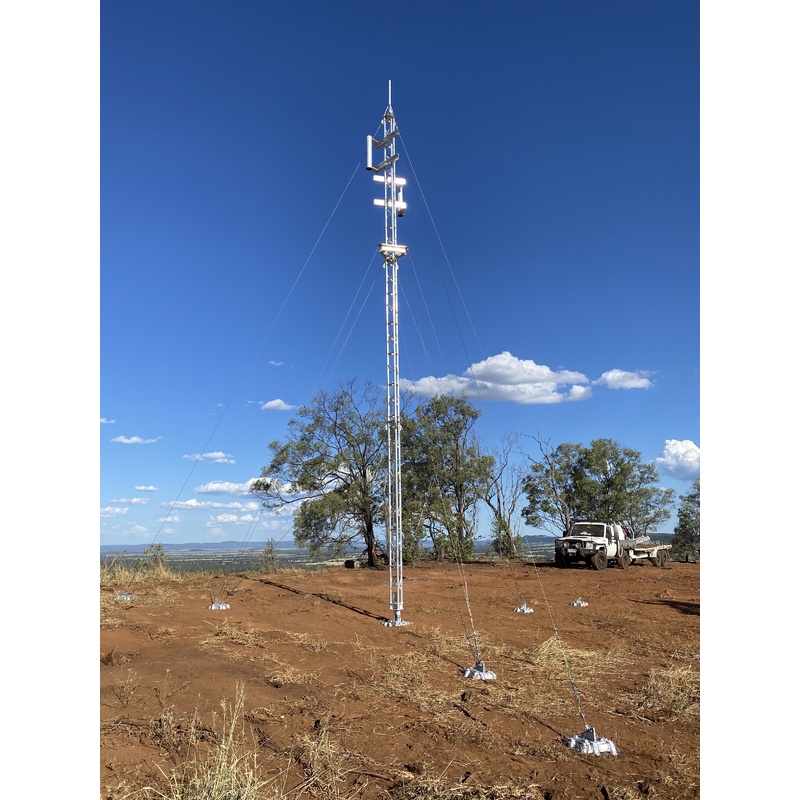

  • communications systems including Point to point links, UHF, VHF, Cell and WiFi Extensions and Starlink installations


  • Aluminium fabrication in accordance to AS1664

  • Aluminium welding in accordance to AS1665

  • 304 Stainless Steel bolts and rigging components in accordance to ISO 3506 U.N.O.

  • Guy cables in accordance to AS3569, Class 7x19 Grade 304 Stainless Steel

  • Guy wire preload tension to 1.0 kN

  • Cable joins and attachments in accordance to AS2579

  • Structure classification per AS3995 is Type II


Engineer approved recommendations

  • Due to the complicated nature of tower infrastructure, it can prove invaluable to have an engineer approved recommendation for solutions that will accommodate your particular project.

  • We offer a Tower Recommendation Proposal Consultation Service, providing a detailed report that you can use for the planning of communication assets.


Please contact us for:

  • orders of multiple towers, trade pricing, lead times, and to discuss customisation of mast for a specific project

  • maximum dish size, heights and bracing information for your application.


tower foot print


tower configuration plan



Shipping Weight 90.0000kg
Shipping Width 1.100m
Shipping Height 0.800m
Shipping Length 3.125m
Shipping Cubic 2.750000000m3
