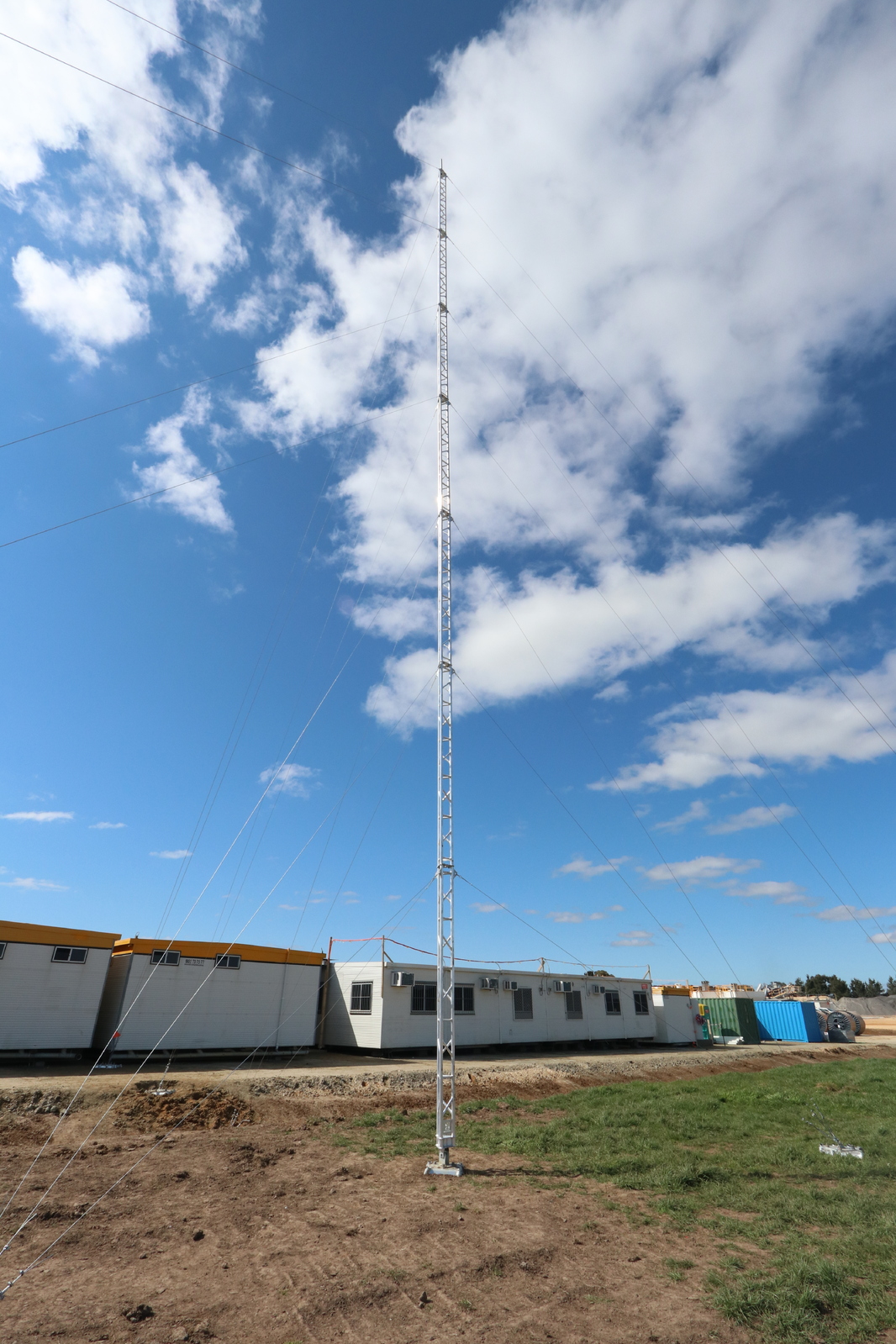

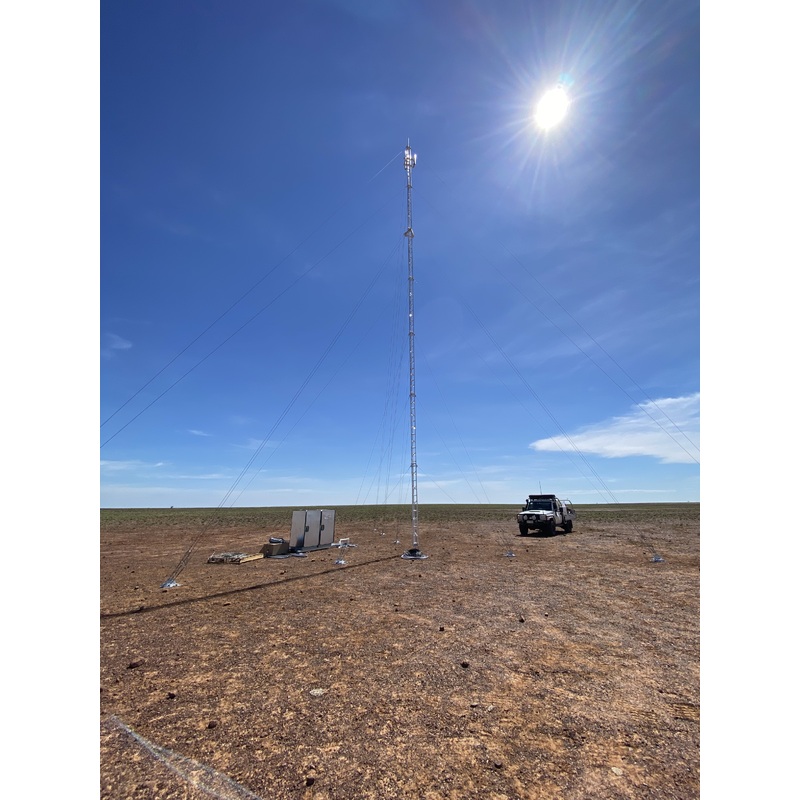

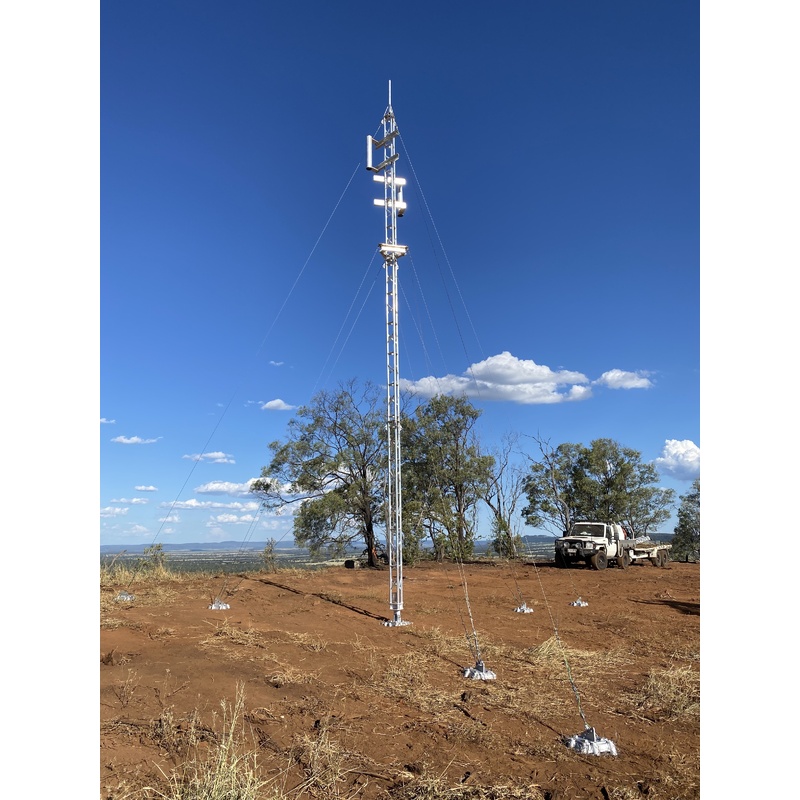

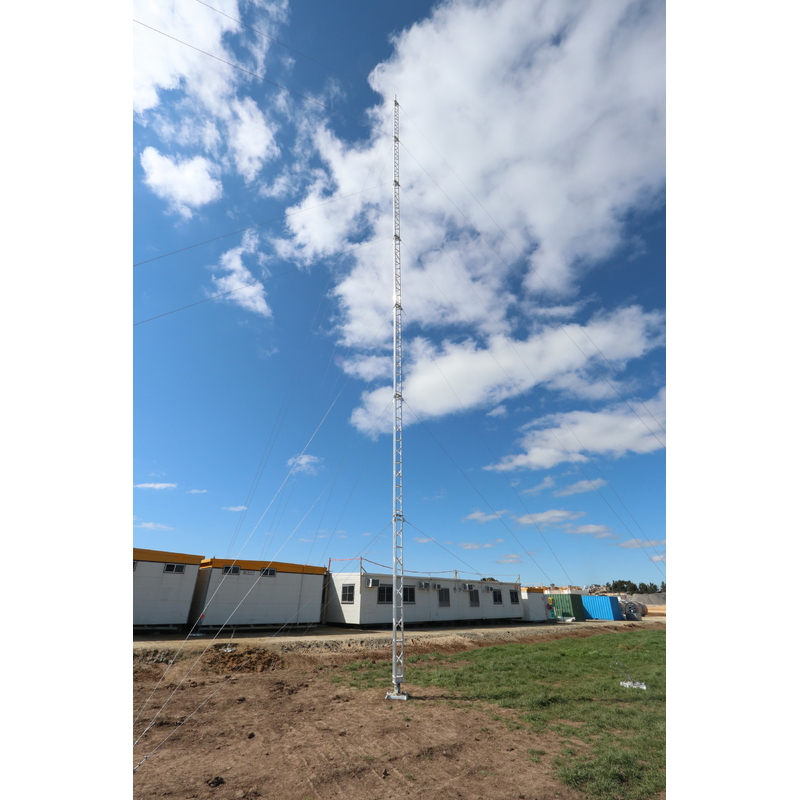

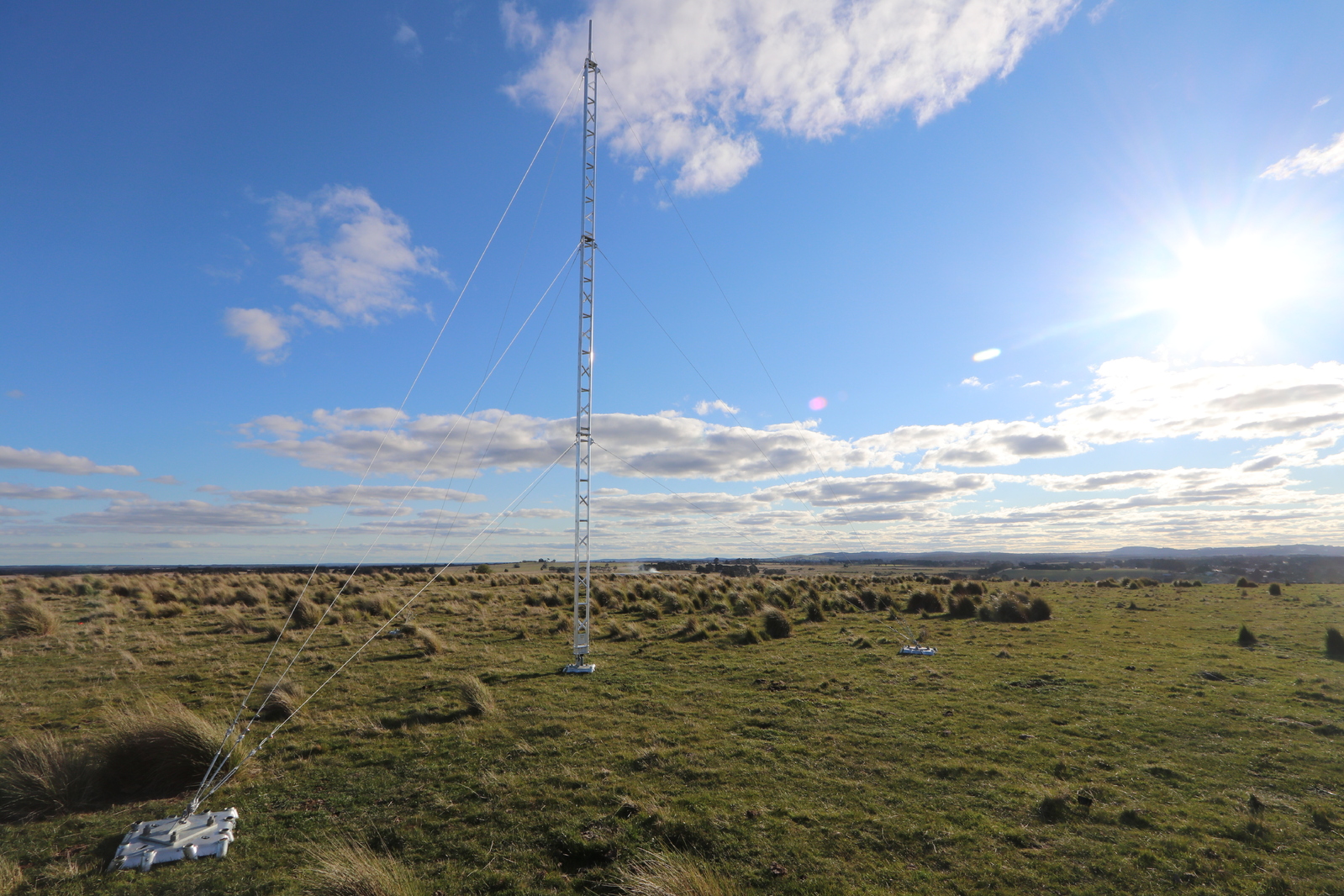

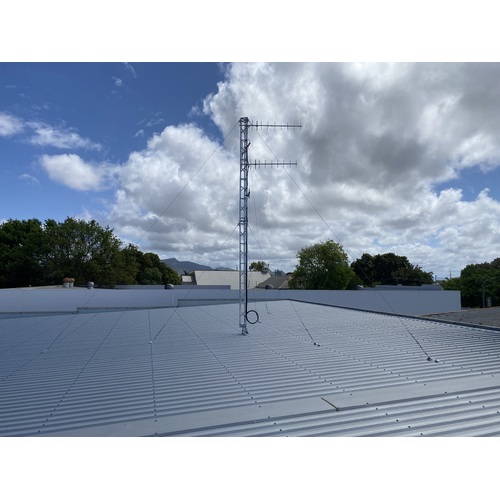

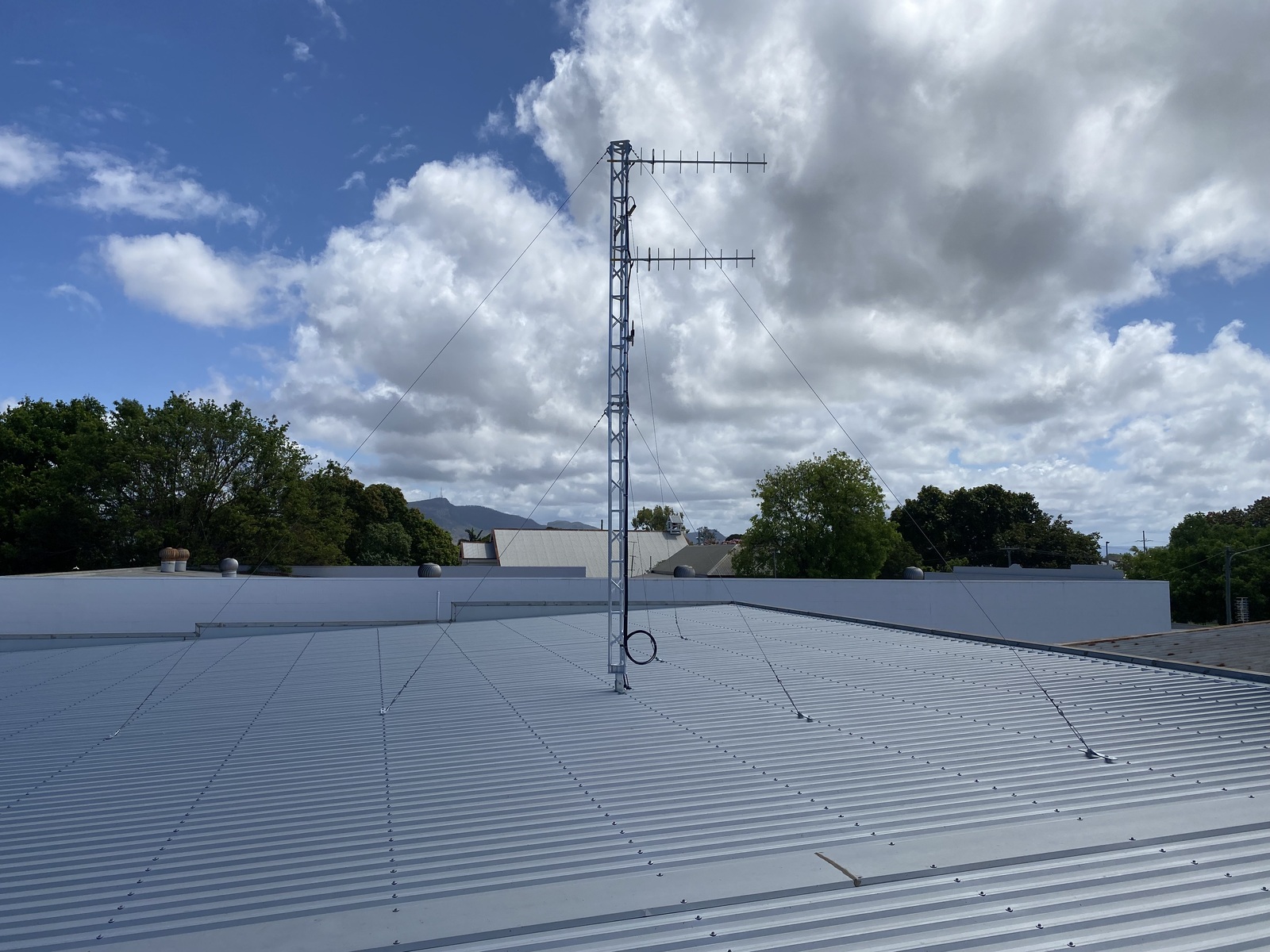

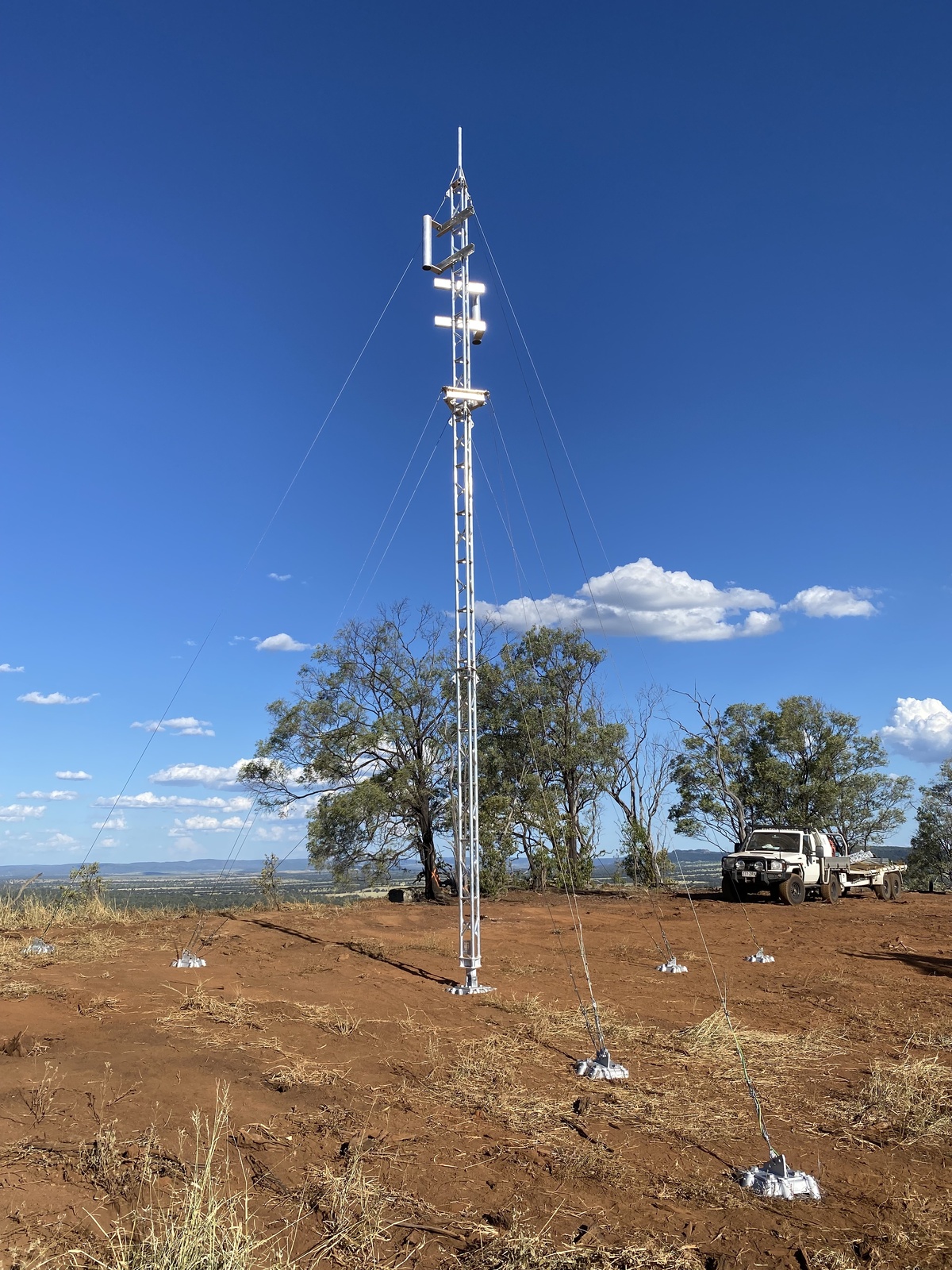

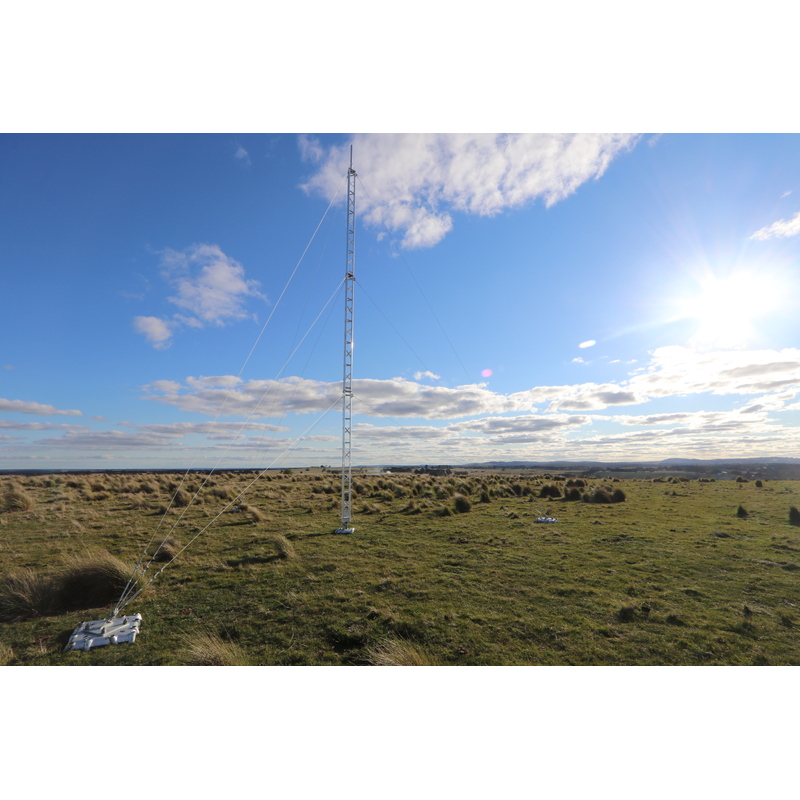

Guyed Serviceable Aluminium Lattice Tower Roof Mount (210mm Faced) - Modular, Lightweight 3m Sections


Key Features


  • Engineer certified to support dish antennas up to 900mm in diameter in 100km/h winds

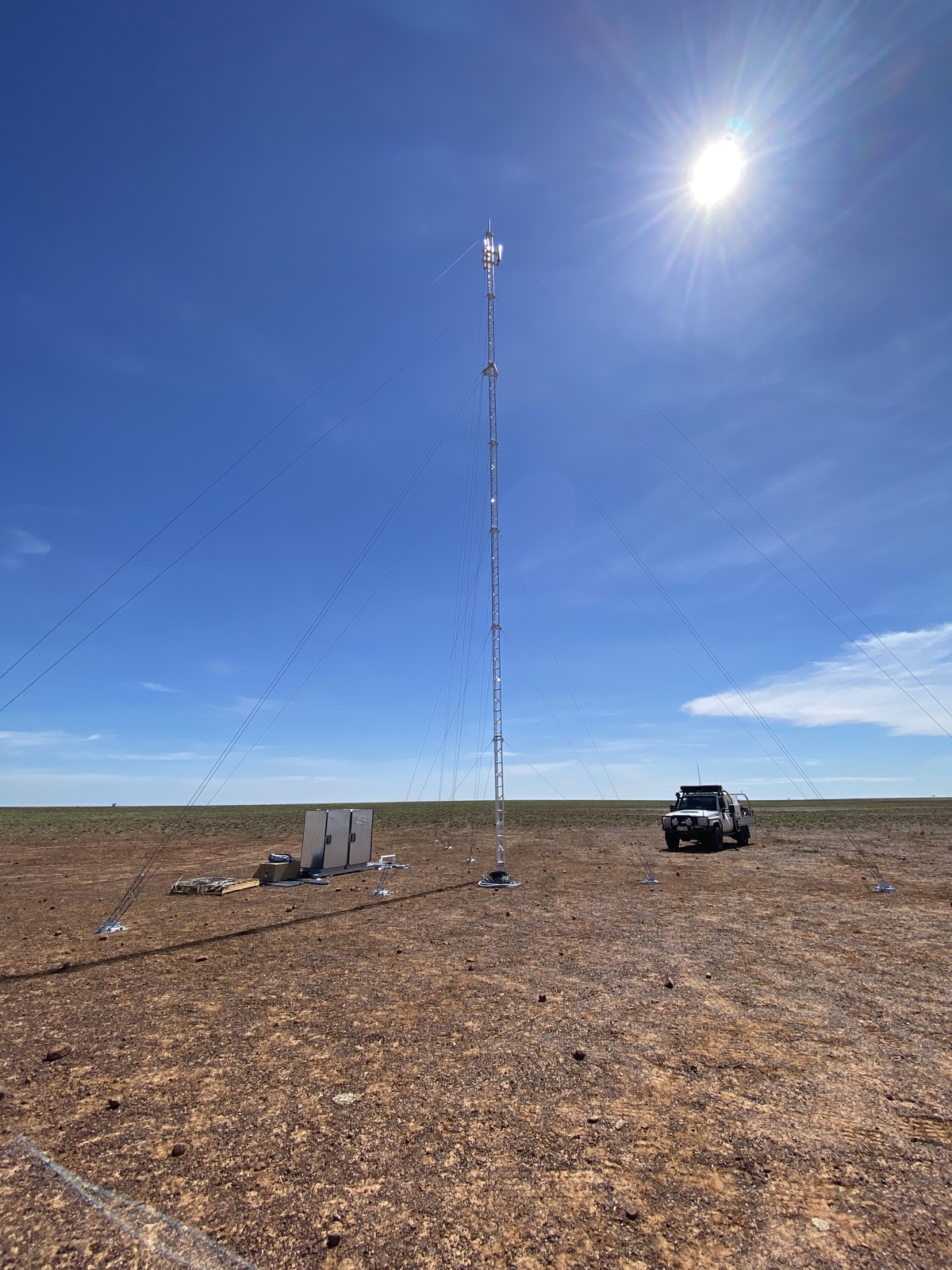

  • Modular design can reach heights up to 21m and be couriered directly to your location like a standard package

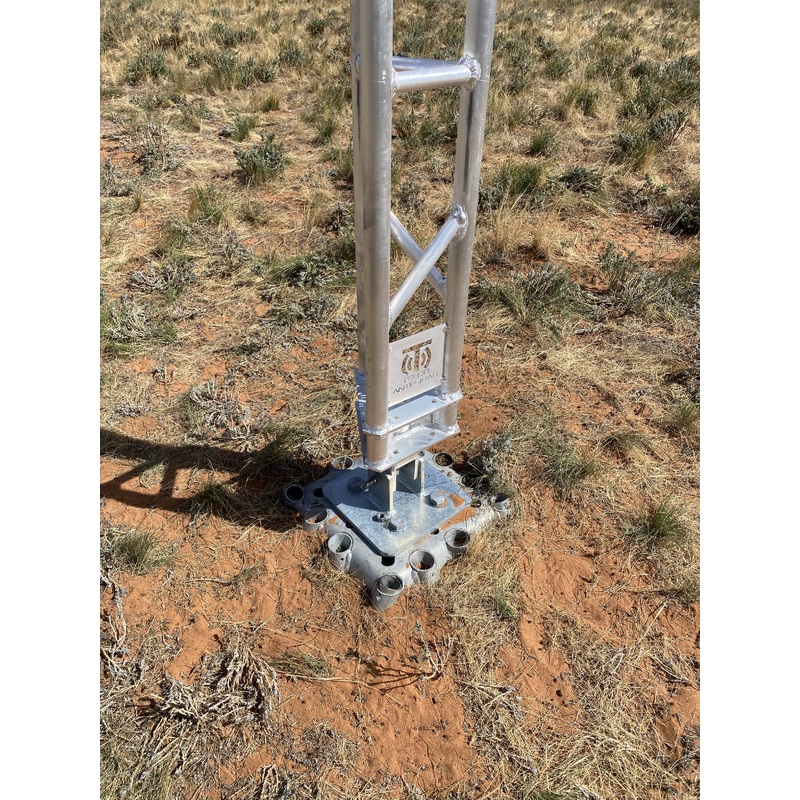

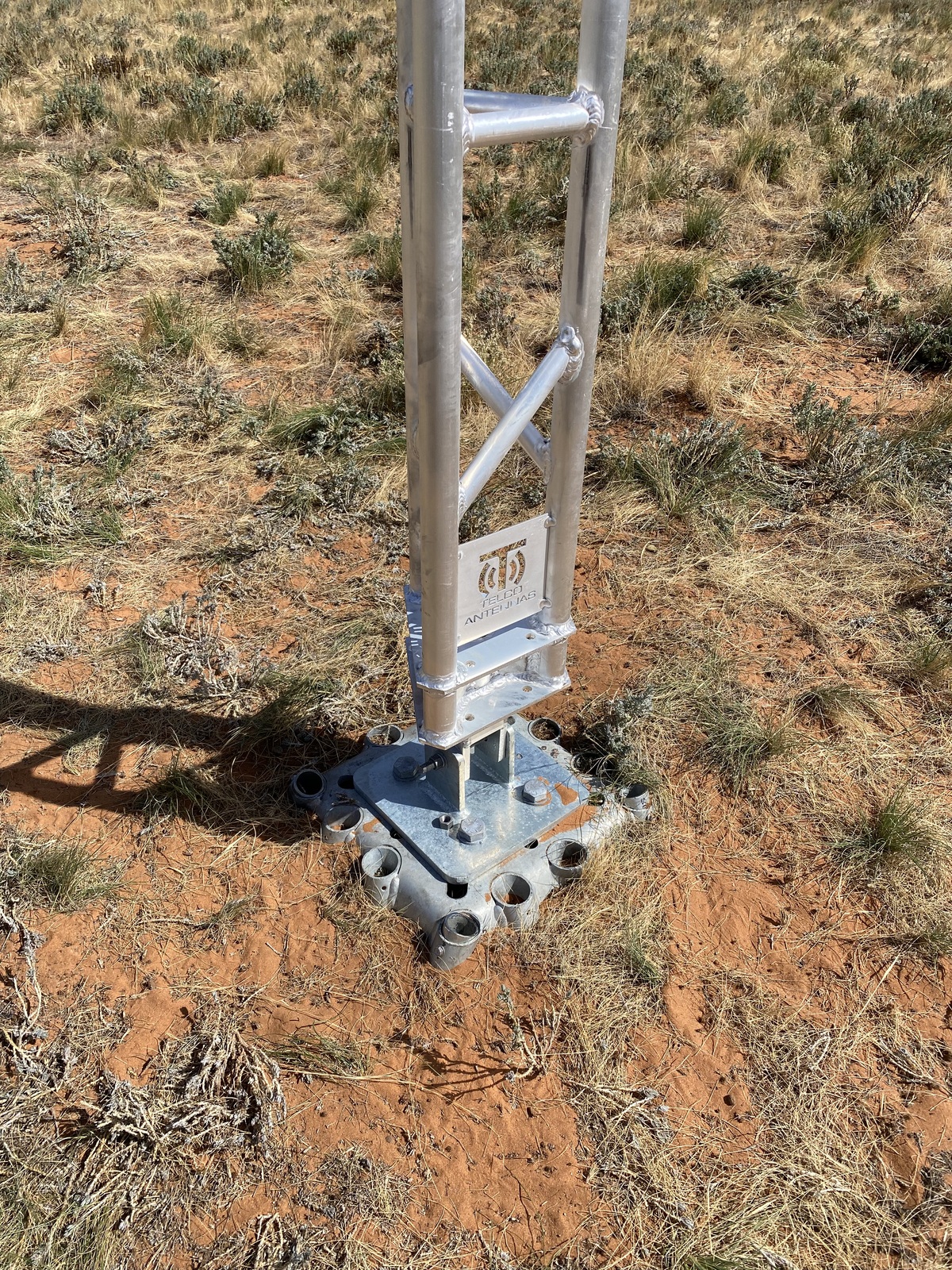

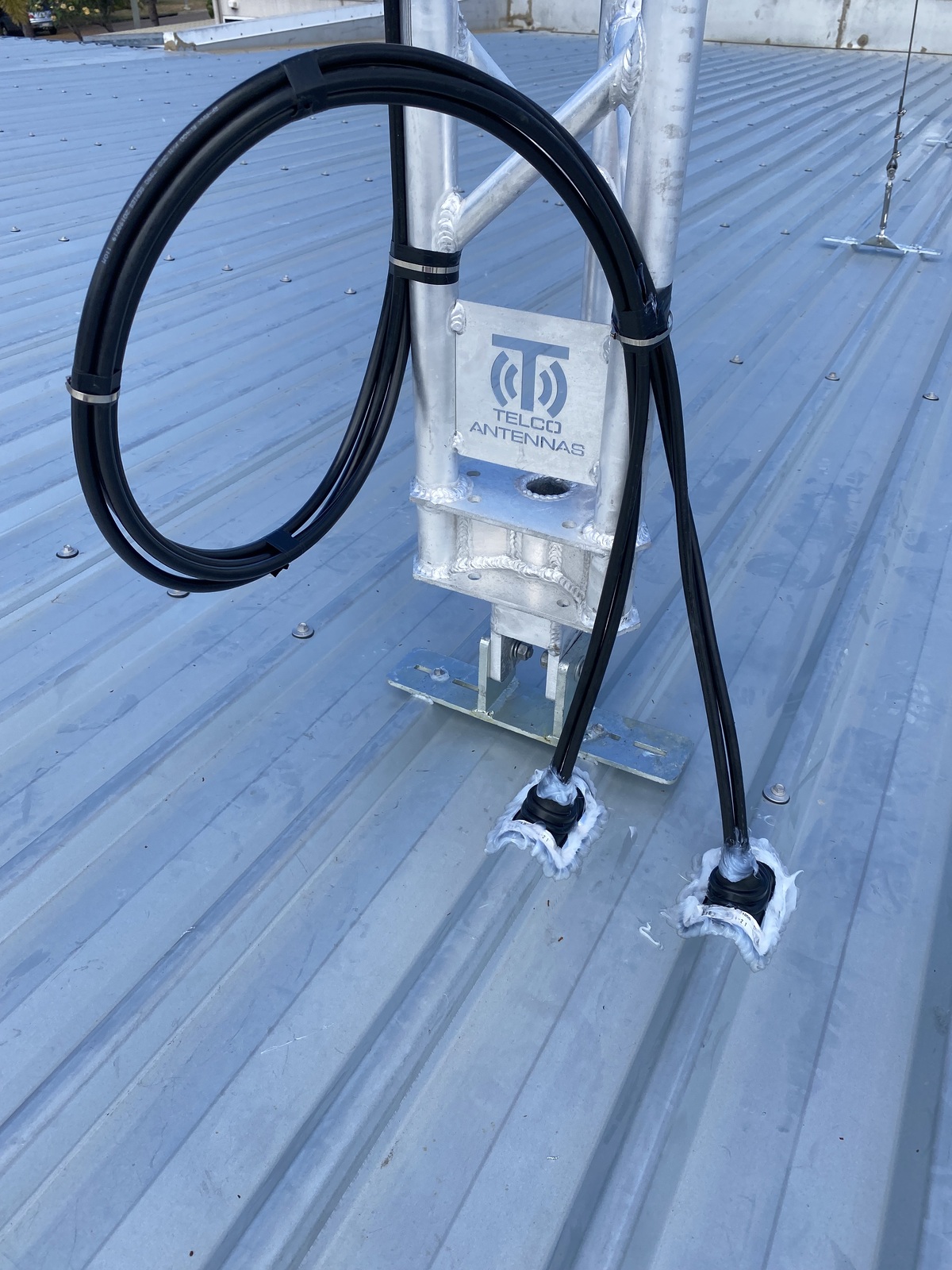

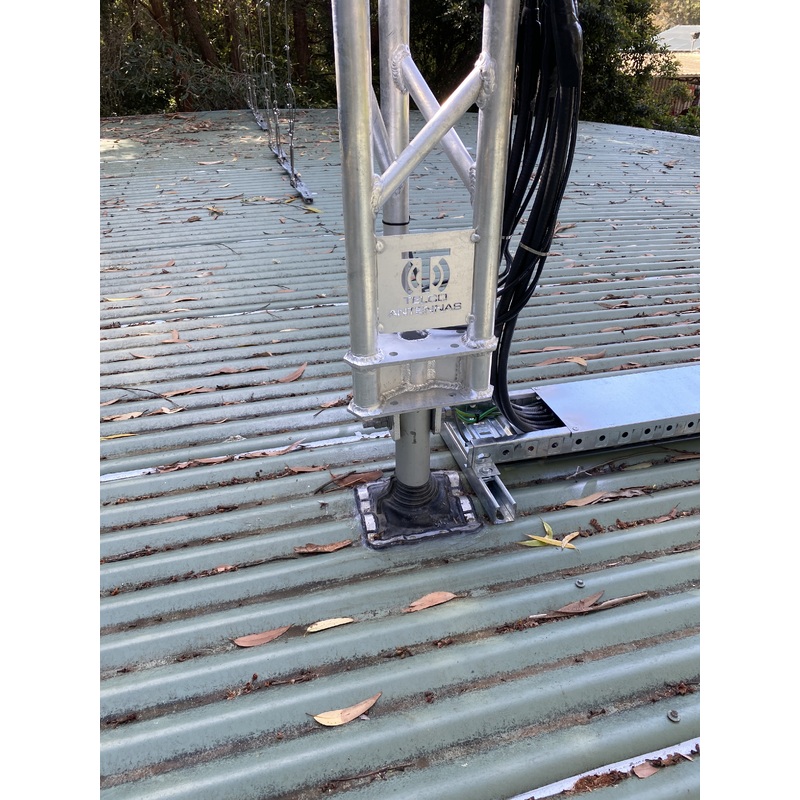

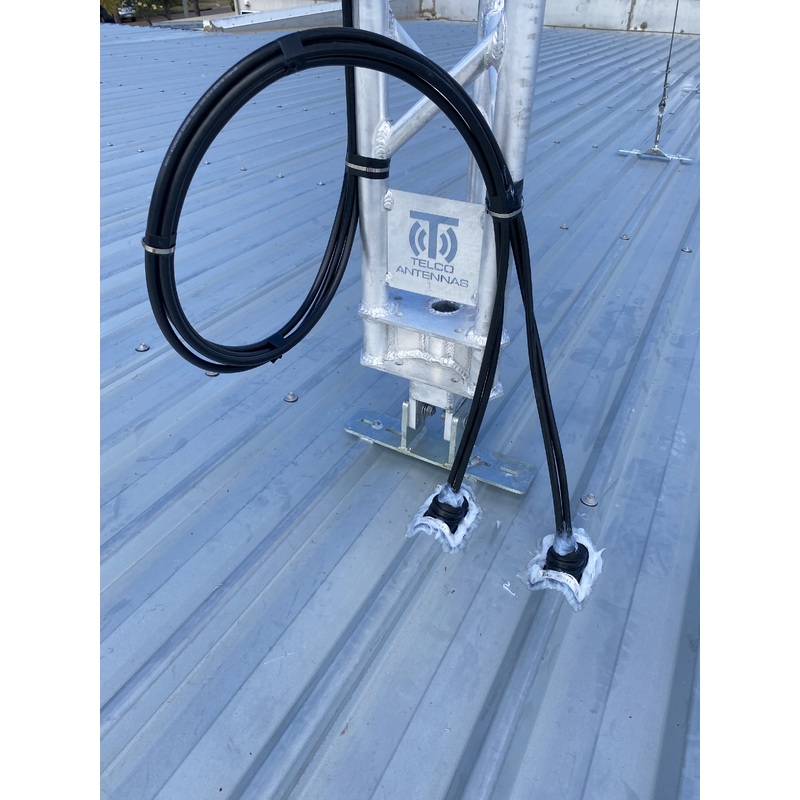

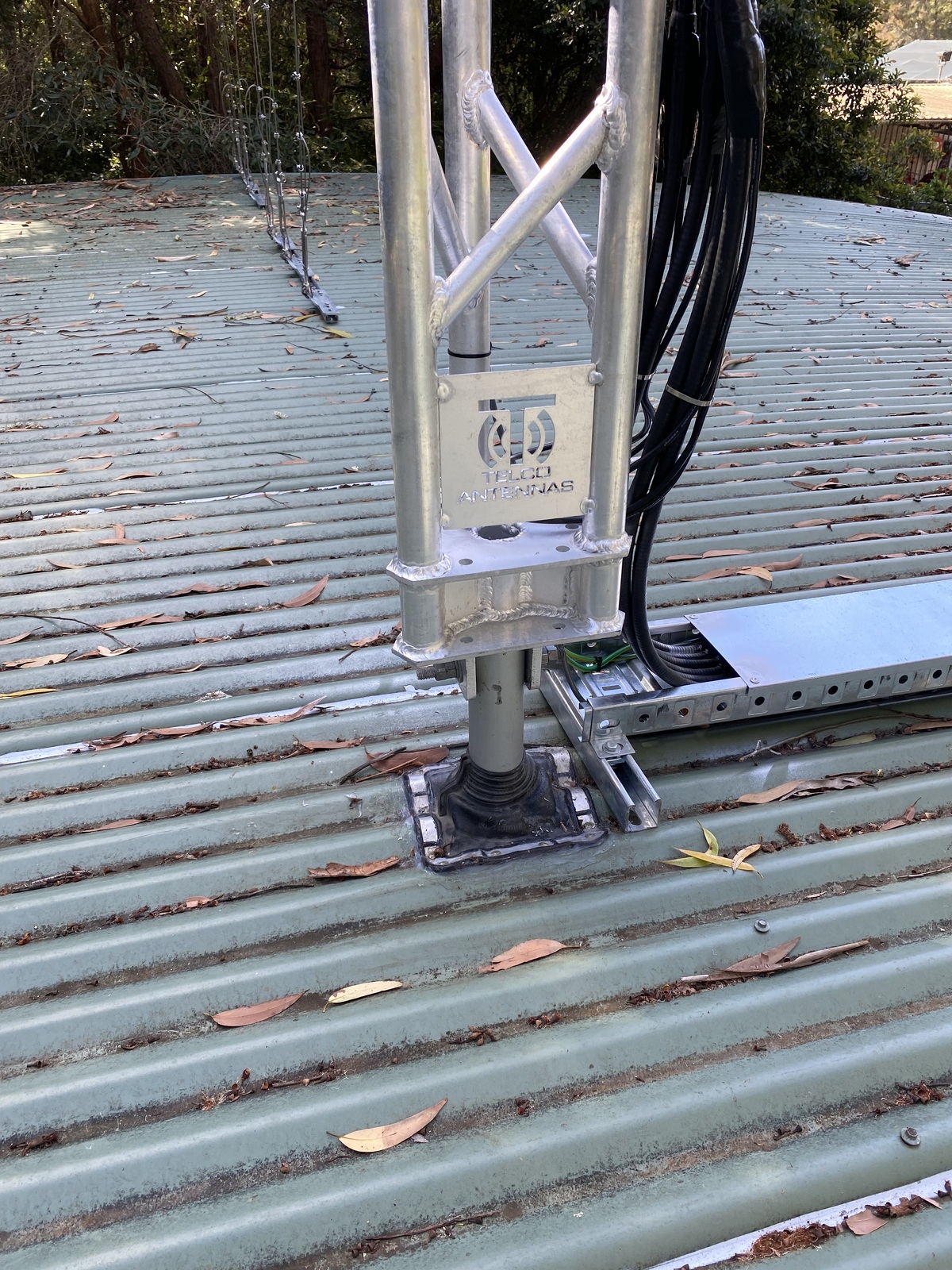

  • Custom swivel baseplate allows the mast to be installed on a wide range of roof angles/pitches, and the entire mast can be lowered down to the roof level

  • Design facilitates easy access to the headload and makes performing maintenance or adjustments a simple procedure

  • Regular production runs ensure we have a large number of sections in stock and can supply components quickly.




  • Modular designed mast that can be easily adapted to suit height applications.









  • Aluminium fabrication in accordance to AS1664

  • Aluminium welding in accordance at AS1665

  • 7/16" Zinc or stainless steel bolts in accordance to ISO3506 U.N.O

  • Guy cables in accordance to AS3569, Class 7X19 Grade 2070

  • Guy wire preload tension to 1.0 kN

  • Cable joins and attachments in accordance to AS2579

  • Structure classification per AS3995 is Type II



Engineer approved recommendation

  • Due to the complicated nature of tower infrastructure, an engineer approved recommendation can prove invaluable for solutions that will accommodate your particular project

  • We offer a Tower Recommendation Proposal Consultation Service, providing a detailed report for the planning of communication assets.


Please contact us for:

  • maximum dish size, heights and bracing information for your application

  • orders of multiple towers, trade pricing, lead times and to discuss customising your mast for a specific project.




tower configuration plan


tower foot print



tower configuration plan



Shipping Weight 60.0000kg
Shipping Width 1.100m
Shipping Height 0.600m
Shipping Length 3.125m
Shipping Cubic 2.062500000m3
