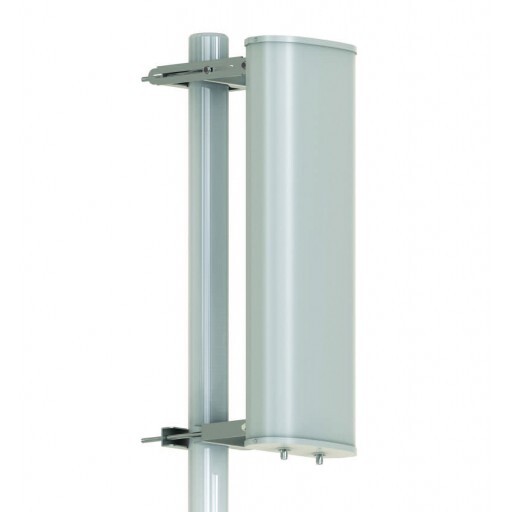

Cambium Networks 2x2 ISM 13dBi Panel Antenna - 915Mhz - Dual Slant



Key Features

  • The Sector Antenna is compatible with the PMP 450i 900 MHz





Specifications / Frequency



Network Compatibility
Yes/No
ISM (915MHz)
compatible



Electrical Specifications

  • Frequency 900-930 MHz
  • Gain 13 dBi
  • VSWR <1.7:1
  • Polarization Dual slant, ±45°
  • Horizontal Beamwidth 65°
  • Vertical Beamwidth 23°
  • Front-to-back ratio >30dB
  • Isolation >30dB
  • Cross-polar ratio >15dB (±60°≥10)
  • Impedance 50 Ohms
  • Max Input Power 100W
  • Lightning Protection DC Ground

Mechanical Specifications

  • Connector 2*N Female
  • Connector Position Bottom
  • Dimensions 880*288*132mm
  • Length / Width / Height 34.6*11.3*5.2in
  • Weight 8.5kg
  • Randome Material UV Resistance PVC
  • Mounting Method Mast
  • Mast Size Ø30-Ø120mm
  • Rated Wind Velocity 210km/h
  • Operating Temperature -40~+65°C
