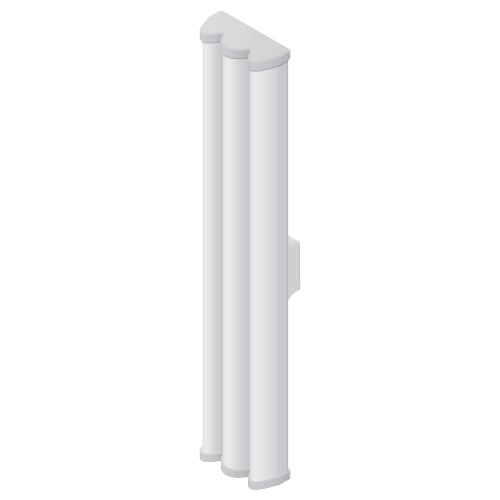

Ubiquiti airMAX 5.8GHz (M5) 19dBi Sector Antenna


Key Features


  • Integrated mount for Rocket

  • Ideal for sectored base station deployment

  • 120 degree sector with 4 degree vertical beam

  • 2x2 MIMO 5.8GHz

  • Designed specifically for airMAX Rocket M5.




  • AirMAX Sector is a Carrier Class 2x2 Dual Polarity MIMO Base Station Antenna that was designed to seamlessly integrate with Rocket M5 radios

  • Pair a Rocket M5 radio with an airMAX Sector reach to create a high powered PtMP base station, covering a 120 degree sector. 120 degree sectors are ideal for when deploying a conventional 3 sector airMAX node

  • The 4-degree vertical beam with high 19dBi gain is ideal for macro-cell base stations. When sectoring in this fashion it's important that each node is integrated with a Rocket M5 GPS in order to take advantage of airMAX's proprietary AirSync protocol

  • AirSync replaces the radio's conventional carrier-sense timing protocol with a inter-radio synchronised TDMA protocol. Instead of each radio polling for a quiet channel before transmitting (and potentially colliding), AirSync detects the GPS coordinates of each unit and synchronises transmissions into separate time slots

  • In addition to GPS synchronisation, multi-sector deployments will require additional antenna shielding (RF-deadening material is strongly advised).


airmax TDMA and packet prioritisation


airMAX TDMA multi-user access scheme permitting up to 100 clients per airMAX antenna. Note this diagram does not depict AirSync protocol.


Specifications / Frequency


Network Compatibility
AirMAX M5 2x2 MiMo (5800MHz)


Electrical Specifications


  • Frequency Range: 4900-5850MHz

  • Input Impedance: 50Ω

  • VSWR: <1.5:1

  • Polarisation: Dual Linear (V & H)

  • Cross-Pol Isolation: >28dB

  • H-Pol Beamwidth: 123° (6dB)

  • V-Pol Beamwidth: 123° (6dB)

  • Vertical Beamwidth: 4°

  • Electrical Downtilt: 2°

  • Radiation: Sector


Mechanical/Environmental Specifications


  • Cable: 2x RP-SMA jumper cables included

  • Connector: 2x RP-SMA Female

  • Wind Rating: 200km/hr

  • Weight: 5.9kg

  • Mounting: Pole mounting bracket included

  • Dimensions: 700 x 135 x 73mm (L x W x H) EN 302 326 DN2
