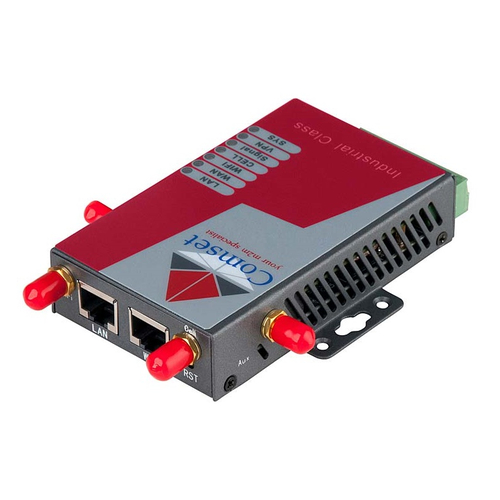

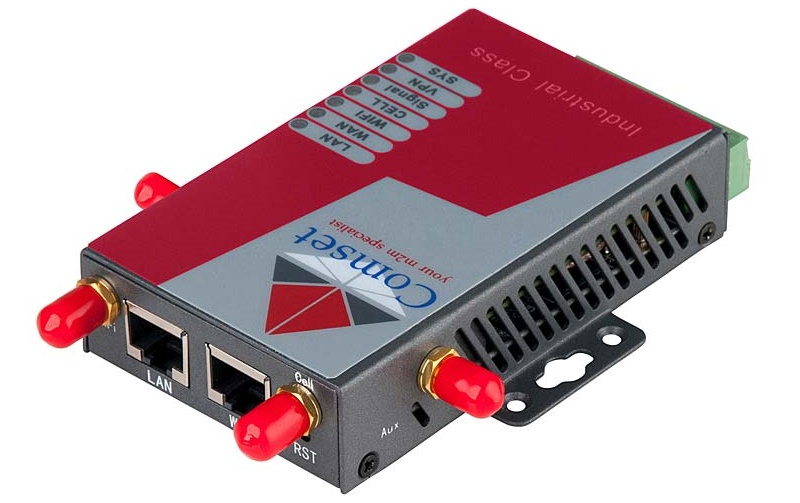

Comset LTE CAT-6 WiFi Router with SIM Card Slot (CM685V-6)



Key Features



  • 3G, 4G, 4GX, 4G+ Capable Modem Router

  • Band B28 700 MHz (Telstra 4GX and Optus 4G Plus)

  • Fully operational on telstra.corp APN

  • LTE CAT6 with 300Mbps Download Speeds

  • Automatic failover between ADSL/NBN and 4G LTE

  • DIO control via SMS

  • OpenWrt Fully Featured Linux OS

  • OpenVPN Server and Client

  • Remote web management

  • RS-232 interface transparent communication (DTU modem function).



Usage





  • The Comset CM685V-6 is a CAT-6 industrial grade 3G/4G/4GX LTE WiFi Modem Router built on the OpenWrt Linux operating system.

  • With download speeds of up to 300 Mbps and upload speeds of up to 50 Mbps, it is one of the few routers on the Australian market that support band B28 (700MHz).

  • The Comset CM685V-6 is designed to suit Australian conditions.  It supports the latest LTE Advanced technology that performs fast and reliable data communication.

  • It enables users to quickly create a secure and fast wireless network.

  • It features a built-in WiFi N300 with speeds of up to 300 Mbps, one Ethernet WAN port for fixed internet connection and one Ethernet LAN port, as well as a GPIO with four digital output ports to control electrical devices via SMS such as turning on a pump or opening a gate.

  • The four DIO ports can also be used as digital input ports that can send an email or an SMS when triggered for alarm notification.

  • Other features include VPN IPSEC, PPTP, L2TP and Open VPN to establish a secure connection over the 3G/4G network.

  • The durable and rugged design makes the CM685V-6 the router of choice for Australia’s harshest and most remote environments. The compact design, easy integration and rich built-in features make it suitable for a wide range of industrial M2M applications, including industrial automation, building automation, smart metering, security, surveillance, transportation, health, mining and environmental monitoring.



Specifications / Frequency



Connection Specifications



  • WiFi: IEEE 802.11b/g/n; 300Mbps

  • Ethernet: • 1 x 10/100M LAN port (RJ45 interface) • 1 x 10/100M LAN/WAN port (RJ45 interface)

  • 3G- WCDMA: 850Mhz - 900Mhz - 1800Mhz - 2100Mhz

  • 4G LTE Cat-6: B1 (2100) - B3 (1800) - B5 (850) - B7 (2600) - B8 (900) - B20 (800) - B28 (700) - B32 (1500)



Carrier Aggregation:



  • B1+B1/B5/B8/B20/B28

  • B3+B3/B5/B7/B8/B20/B28

  • B7+B5/B7/B8/B20/B28

  • B20+B32

  • B38+B38

  • B40+B40

  • B41+B41



Hardware Specifications



  • Weight: 285g

  • Dimensions: 80 x 106 x 46mm (H x W x D)

  • Input Voltage: 9-30 Vdc

  • Operating Temperature: -20 to 55 °C

  • Power Input: 100-240 Vac > 9 Vdc wall adaptor



(CM685V-6)

SKU CM685V-6
Brand Comset
Shipping Weight 0.7000kg
Shipping Width 0.150m
Shipping Height 0.200m
Shipping Length 0.100m
Shipping Cubic 0.003000m3
