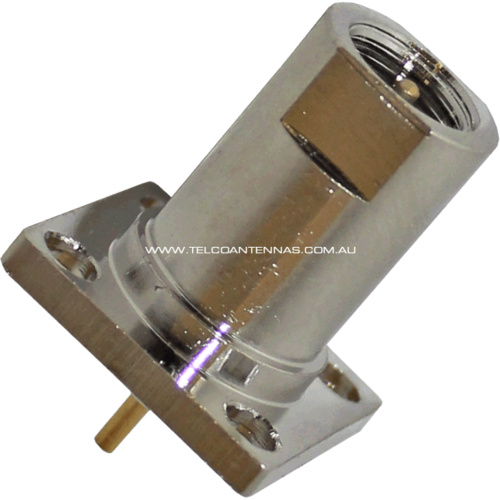

FME Male Panel Mount - Square Flange



Key Features



  • FME Plug

  • Solder termination

  • Flange mount panel bulkhead



Automatic Price Breaks



  • The price listed for this item is for a quantity of 1-24 units.

  • Prices will automatically incur a bulk-buy discount during checkout depending on quantity ordered.

  • For large orders please contact our team to arrange a quote.



Discounts:



  • 25-49 units = 10% Discount

  • 50-74 units = 15% Discount

  • 75-99 units = 20% Discount

  • 100-249 units = 24% Discount

  • 250-499 units = 29% Discount

  • 500-999 units = 33% Discount

  • +1000 units = 37% Discount



Product image representative only, for exact dimensions and/or specification please contact us for a copy of the CAD drawing.



Specifications / Frequency



Electrical Specifications



  • Resistance: 50Ω

  • Frequency Range: DC-3GHz

  • Working Voltage: 500V RMS

  • Withstand Voltage: 1000V RMS

  • Contact Resistance: - (1) Centre Contact: <10mΩ - (2) Outer Contact: <5mΩ

  • Insulation Resistance: >5000MΩ

  • Insertion Loss: <0.2dB/2GHz

  • VSWR: <1.20:1



Mechanical/Environmental Specifications



  • Durability: >500 cycles

  • Body Material: Brass

  • Plating Material: Nickel

  • Pin/Socket Contact: Brass/Beryllium

  • Pin/Socket Plating: Gold

  • Crimp Ferrule Material: Copper-alloy

  • Crimp Ferrule Plating: Nickel

  • Insulator: PTFE

  • Operating Temperature: -55° to 155° C



Read More





(FMEM-PANEL-SQ)

SKU FMEM-PANEL-SQ
Shipping Weight 0.0450kg
Shipping Width 0.050m
Shipping Height 0.050m
Shipping Length 0.030m
Shipping Cubic 0.000075000m3
