Intuitive User Interface

A combination of the directional keypad and soft keys provides simple, smooth operation. Most used functions are assigned to soft keys for quick one push function access.

New Speaker Delivers Dynamic, Clear Audio

A newly designed speaker delivers distortion-free clear audio even at full volume. It provides dynamic and clear audio over a wide bass and treble range.

Class Leading Receiver Performance

The IC-M330GE's receiver provides reliable communication in RF busy environment like a marina. (Selectivity and IMD: more than 70 dB)

Built-in Class D DSC

The radio monitors CH 70 continuously, even while you are receiving another channel. DSC functions include: distress, individual, group, all ships, urgency, safety, position request/report, polling request and DSC test calls.

GPS Receiver Built-in

Supplied GPS antenna

A built-in GPS receiver provides your location, bearing and speed by using information from GPS, GLONASS and SBAS. The acquired position information can be used for DSC calls.

Made in Japan Quality and Reliability

All Icom products are tested to pass rigorous in-house tests as well as environmental tests at the Wakayama Icom plant before shipping. Our world-leading products and quality is tradition.

And More

  • IPX7 waterproof (1 m depth of water for 30 minutes)
  • AquaQuake™ prevents audio degradation from a water-logged speaker
  • Common NMEA interface for external GPS/NAV connection
  • MA-500TR Class B AIS transponder compatible
  • Tag scan and favorite channel functions
  • Dual/tri-watch function for monitoring CH16 and/or call channel
  • Priority scan function
  • Display and keypad backlighting
  • External speaker connection
  • 3-digit or 4-digit channel display selectable
  • Supplied hand microphone, HM-235B/W, with channel up/down keys and a CH16/Call channel key

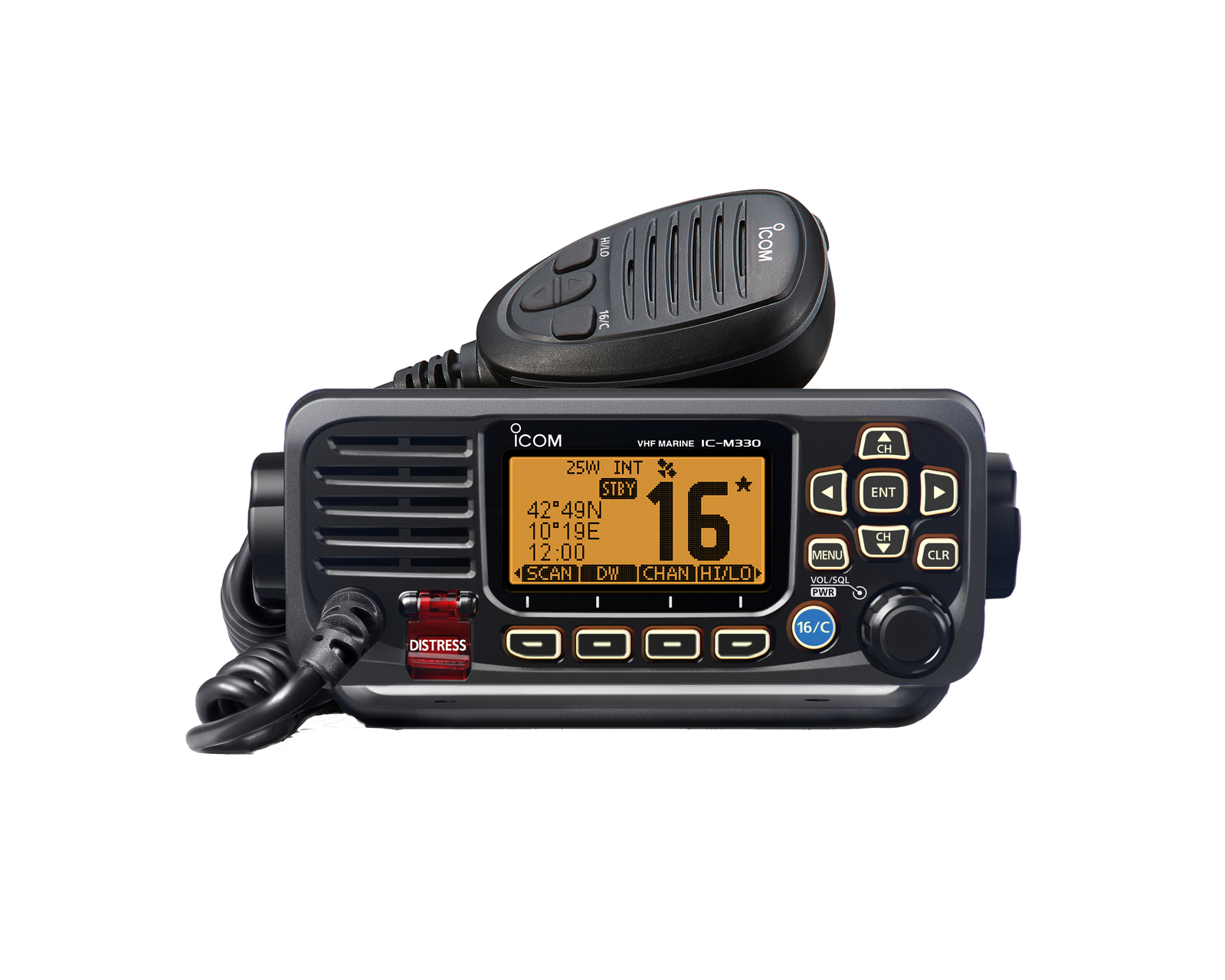

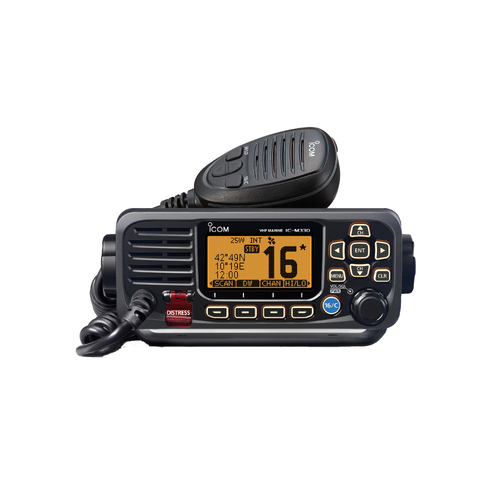

(IC-M330GE-B)

Ultra Compact Body, Flexible Installation The compact IC-M330GE measures only 156.5 (W) × 66.5 (H) × 110.1 (D) mm making it ideal for a cockpit where space is limited. Intuitive User Interface A combination of the directional keypad and soft keys provides simple, smooth operation. Most used functions are assigned to soft keys for quick one push function access. New Speaker Delivers Dynamic, Clear Audio

General

Frequency range TX 156.000–162.000 MHz
RX 156.000–163.425 MHz
CH70 156.525 MHz
Usable channels INT, USA* channels
* Available depending on version
Type of emission 16K0G3E (FM), 16K0G2B (DSC)
Power supply requirement 13.8 V DC nominal
(10.8-15.6 V DC)
Current drain TX 25 W output 5 A
RX Max. audio 1 A
Operating temperature range -20°C to +60°C
Antenna impedance 50 Ω (SO-239)
Dimensions (W×H×D)
(projections not included)
156.5 × 66.5 × 110.1 mm
Weight (approx.) 730 g
NMEA formats In RMC, GGA, GNS, GLL, VTG
Out DSC, DSE, RMC, GSA, GSV

Transmitter

Output power 25 W, 1 W
Max. frequency deviation ±5.0 kHz
Frequency stability Less than ±0.75 kHz
Spurious emissions Less than 0.25 μW

Receiver

Sensitivity Main -5 dBμ emf typ. (20 dB SINAD)
DSC -5 dBμ emf typ. (1% BER)
Squelch sensitivity Main Less than -2 dBμ emf
Adjacent channel selectivity Main More than 70 dB
DSC More than 73 dBμ emf (1% BER)
Spurious response Main More than 70 dB
DSC More than 73 dBμ emf (1% BER)
Intermodulation Main More than 70 dB
DSC More than 68 dBμ emf (1% BER)
Hum and noise More than 40 dB
Audio output power
(at 10% distortion, 4 Ω load)
More than 2 W

Measurements made in accordance with EN 301 025-2, -3. All stated specifications are subject to change without notice or obligation.

Applicable IP Rating

Ingress Protection Standard
Water IPX7 (Waterproof protection)




Supplied Accessories

  • HM-235B/W hand microphone
  • DC power cable
  • Mounting bracket kit
  • GPS antenna (5 m cable)
