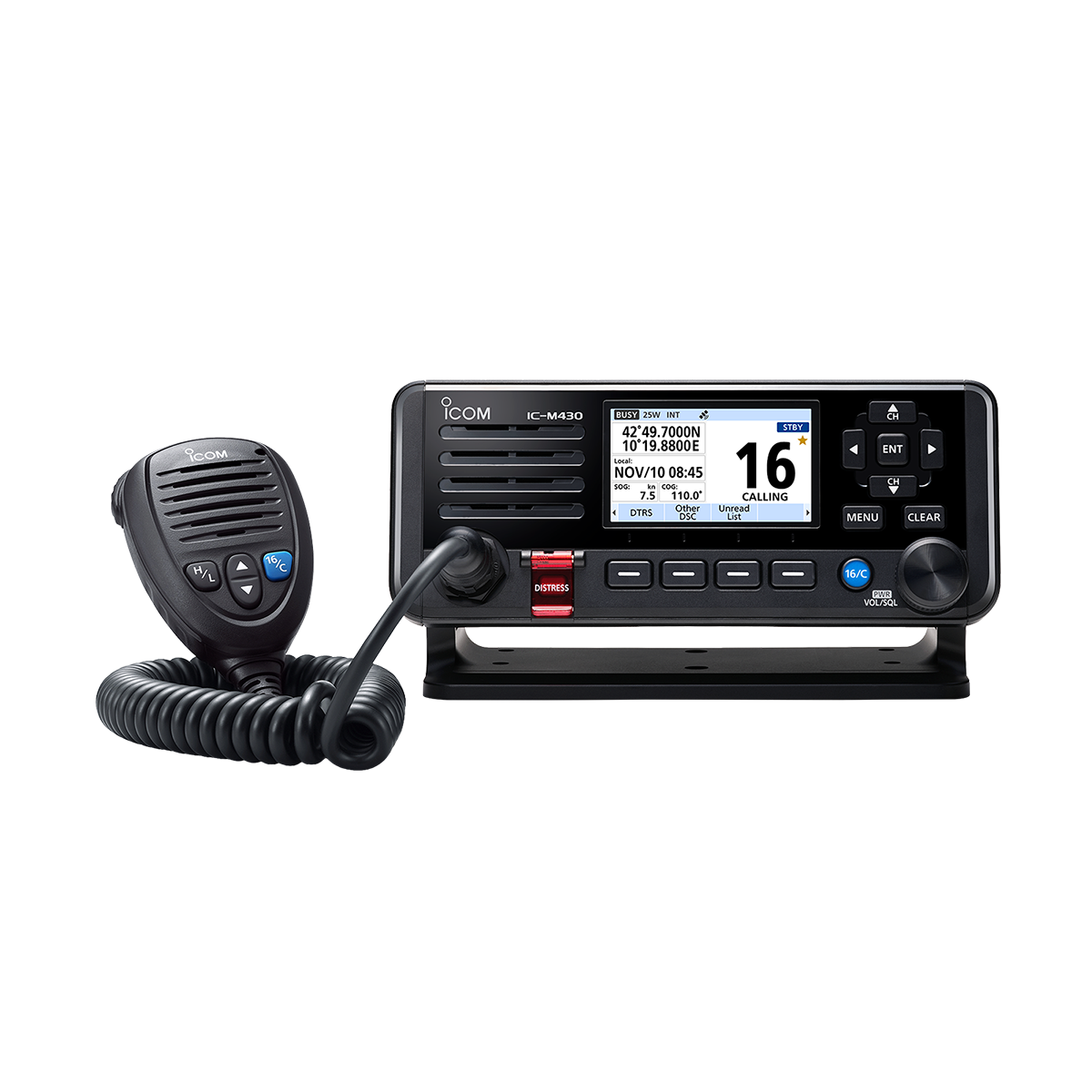

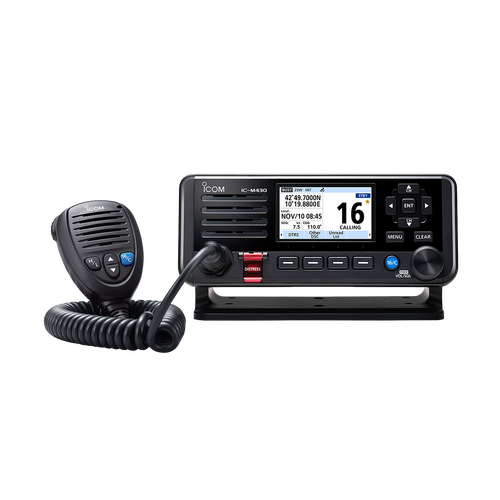

Icom IC-M430E

VHF Marine Transceiver

The Icom IC-M430E is a fixed-mount VHF marine transceiver with built-in Class D DSC, a colour TFT display and NMEA 2000™ connectivity, designed for modern vessels where helm space is limited. With 25 W of transmit power, a built-in GNSS receiver, AquaQuake™ water draining and IPX7 waterproof protection, it delivers the safety features and network integration that Australian boaters expect in a compact, stylishly designed unit.

Key Features and Benefits

  • 25 W RF Output with Class D DSC: Transmits at 25 W for maximum range on the water. Built-in Class D DSC provides a dedicated DISTRESS button for immediate digital distress alerting and direct calling to other DSC-equipped vessels and coast guard stations.
  • Colour TFT Display - Three Modes: Choose from Light, Dark or Night mode depending on conditions. The wide viewing angle and bright screen remain clearly visible in direct sunlight or complete darkness. Modes switch with a single button press and backlit keys allow confident operation at night.
  • Built-in GNSS (GPS) Receiver: An internal GNSS antenna provides position data for DSC distress calls without requiring an external GPS connection. For enclosed installations with limited satellite reception, the optional external GNSS antenna UX-241 is available.
  • NMEA 2000™ and NMEA 0183-HS Connectivity: Plug-and-play integration with chartplotters, AIS transponders and other marine electronics via NMEA 2000. Also supports NMEA 0183-HS for broader compatibility. Compatible with the Icom MA-510TR AIS transponder, enabling DSC calls to be
  • transmitted directly to a selected AIS target.
  • Compact Slim Body for Tight Helm Spaces: The 202 x 82 x 52.6 mm body is designed to fit in limited dash and pod spaces. The slim depth profile keeps ample clearance behind the radio for cable management.
  • Simplified Flush Mounting: MFD-style mounting allows the radio to be screwed directly into place. Snap-on body covers hide all mounting hardware for a clean finish - well suited to side pod installations on centre console hardtops. A conventional flush mount kit (MBF-9) is available as an optional accessory for panels up to 38 mm thick.
  • Hailer and Foghorn: 25 W hailer function for crew communication from the helm, plus an automated foghorn function, both delivered through an external horn speaker (SP-37, optional).
  • AquaQuake™ Water Draining: Icom's AquaQuake function vibrates the speaker to expel water, restoring audio clarity immediately after the radio is exposed to spray or rain.
  • Active Noise Cancelling: Reduces background noise on both transmit and receive for clearer audio in open-air and high-noise environments.
  • Dualwatch and Tri-watch: Simultaneously monitors Channel 16 (the international distress and calling channel) and your working channel, with Tri-watch adding a third channel to the monitoring rotation.
  • VSWR Detection: Built-in Voltage Standing Wave Ratio (VSWR) monitoring alerts you to antenna connection issues before they affect performance at sea.
  • Remote Microphone Options: The included HM-205RB speaker microphone can be mounted directly to the front panel or extended using the OPC-1000 cable. The optional CommandMic™ HM-195GB (Black) or HM-195GW (White) provides full remote control from a second helm position up to 18.3 m away, with intercom functionality between stations - ideal for sailboat installations.

(IC-M430E)

  • 3 Display Modes for Comfortable Operation
  • Remote Microphone Installation Options
  • Flexible System Integration - Supports NMEA 2000 and NMEA 0183-HS
  • Built in GNSS Antenna, plus optional UX-241 GNSS antenna available
  • VSWR Detection to notify antenna issues
  • 25W loud Audio, hailer and foghorn functions
  • Active Noise Cancelling
  • Dualwatch and Triwatch
  • Flush Mount kit included
  • IPX7 waterproof protection
  • Aquaquake water draining function
  • Priority and Normal Scan modes
  • Supports 4 digit channels

Icom IC-M430E Key Specifications

Radio Type Fixed-mount VHF marine transceiver with Class D DSC
Frequency - TX 156.025–161.425 MHz
Frequency - RX 156.050–162.000 MHz
Frequency - DSC 156.525 MHz (Channel 70)
Channels International (INT) channels; supports 4-digit channels
TX Output Power 25 W / 1 W
Power Supply 12.0 V DC (10.8–15.6 V DC)
Current Drain (TX at 25 W) 5.0 A maximum
Audio Output - Hailer 25 W typical
Audio Output - External Speaker More than 10 W (at 10% distortion with 4 Ω)
Audio Output - RX Hailer 16 W typical
Receiver Sensitivity (20 dB SINAD) -5 dBµ typical
GPS / GNSS Built-in GNSS receiver with internal antenna; external antenna port (optional UX-241)
Connectivity NMEA 2000™ and NMEA 0183-HS
Display Colour TFT LCD - Light, Dark and Night modes
Waterproof Rating IPX7 (waterproof protection)
Operating Temperature -20 °C to +60 °C
Antenna Impedance 50 Ω
Dimensions (W x H x D) 202 x 82 x 52.6 mm
Weight 640 g (not including microphone)
SKU IC-M430E
Brand Icom
Shipping Weight 1.8000kg
Shipping Width 0.220m
Shipping Height 0.165m
Shipping Length 0.190m
Shipping Cubic 0.006897000m3
Unit Of Measure ea
