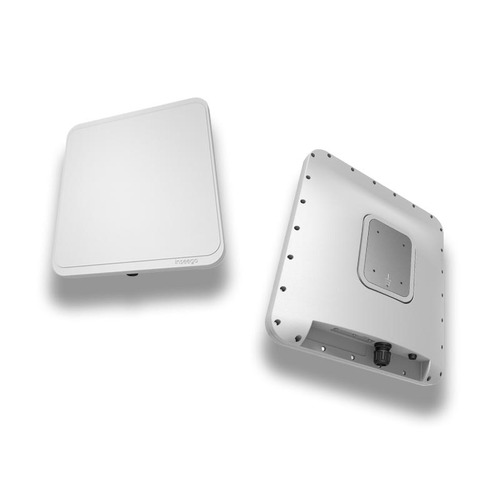

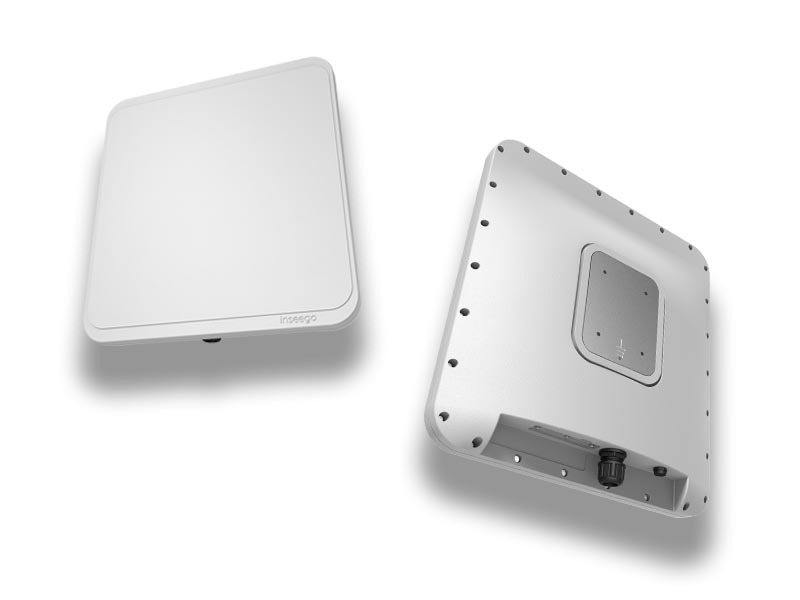

Inseego Wavemaker 5G outdoor CPE FW2000 Series



Key Features

  • In Built High Gain Antennas
  • Fast 5G connectivity
  • Advanced networking and security
  • Device management + Inseego Connect™
  • Inseego Mobile app
  • IP67 Rated



Usage

Whether you’re offering high-speed internet connections to rural and suburban customers at the edge of your network or providing new 5G connectivity for private enterprise networks, the FW2000 series is designed to deliver best-in-class performance.

The FW2000 series outdoor Customer Premises Equipment (CPE) uses high-gain directional antennas to extend the reach of carrier networks, providing 5G fixed wireless access (along with 4G LTE fallback at LTE CAT 22 speeds*) to serve customers in more places.

The intuitive Inseego Mobile app makes it easy to find the strongest network signal and best mounting location for the FW2000 series outdoor CPEs. Once up and running the, IP67-rated FW2000 series is designed to stand up to harsh weather conditions and temperature extremes while protecting your network with enterprise-grade security.  



Network Connectivity

• 5G sub-6 GHz

• 4G LTE Cat 22

• 4x4 MIMO sub-6 GHz

• 256 QAM sub-6 GHz Bands Supported

• 5G NR: n1/n2/n3/n5/n7/n12/n20/n25/n28/n38/ n40/n41/n46/n48/n66/n71/n77/n78

• 4G LTE: B1/B2/B3/B4/B5/B7/B8/B12/B13/B14/ B17/B20/B25/B26/B28/B29/B30/B32/B38/B39/ B40/B41/B42/B43/B46/B48/B66/B71

• Band support varies by regional SKU Chipset

• Qualcomm® Snapdragon™ SDX55 Ports

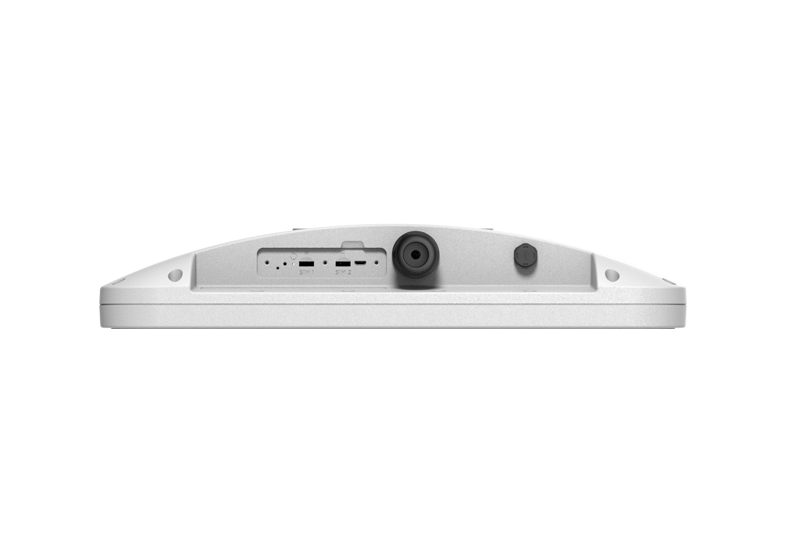

• (1) 5Gbps Ethernet LAN port LED Indicators

• (1) Power and status LED Power

• Power over Ethernet (PoE) - 802.3bt Type 3 High Gain Antennas

• 14dBi: 3.3GHz - 4.2GHz

• 12dBi: 1.7GHz - 2.7GHz

• 5dBi: 1.5GHz

• 0-4dBi: 600MHz - 1.0GHz

Accessories

• PoE injector (included)

• SIM tool (included)

• J-arm mount (optional, sold seperately)

• Wall mount (optional, sold seperately)

• Pole mount (optional, sold seperately)

Dimensions & Weight

• 430mm x 400mm x 71.7mm (16.9” x 15.75” x 2.8” )

• 4.22 kg (9.3 lbs) Operating Temperature

• -30°C to 70°C (-22 to 158°F)

Environmental

• IP67 rating for water and dust ingress protection

• Internal heating element for startup and operation in cold environments SIM

• Dual SIM, (2) Nano 4FF SIM slots

• Multi-carrier support with auto-switching Web UI Operating Systems Supported

• Windows 10 and later • MacOS 10.14 and later • Linux® Ubuntu 18.04 LTS and later

Security

• 3rd Party cybersecurity penetration testing verified

• Security hardened web interface

• Password hash

• Anti-CSRF

• Session timeout

• Incorrect password lockout

• IP passthrough

• Firewall with adjustable settings and rules

• Port filtering, port forwarding, MAC filtering
