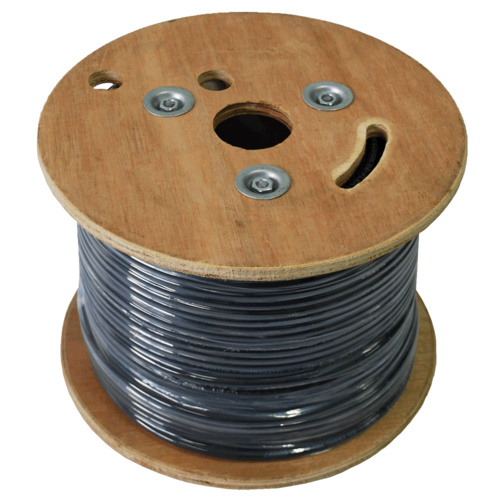

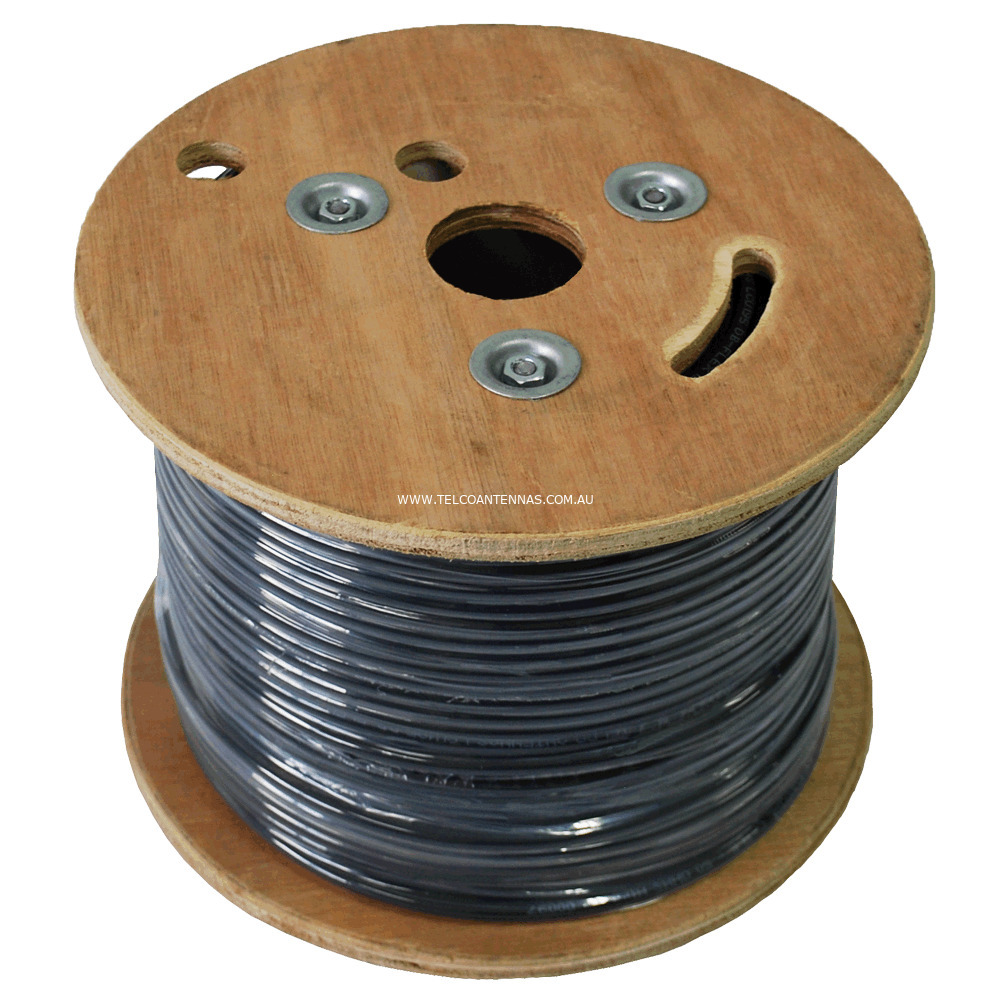

100 Metre Reel LCU195 Low Loss Coaxial Cable Spool


Key Features


  • This is our flagship subtype of LCU195 cabling

  • LCU195 50Ω series cabling - designed for maximum weather resistance and usability

  • Telco DB-FLEX 7 stranded copper centre conductor permits repeated bending and greater flexibility and allows an incredibly tight bend radius, similar to Times Microwave's LMR-195 UltraFlex

  • Both DB-FLEX and UltraFlex cables achieve this by trading off for a marginally higher per-metre loss, up from 0.36dB/m to 0.42dB/m @ 850MHz

  • UV stable rubberised TPFE Jacket designed for harsh outdoor environments while maintaining maximum flexibility and minimising plastic memory (for improved wall-cavity feeding).


Specifications / Frequency


Electrical Specifications


  • Resistance: 50Ω

  • Capacitance: 83.3pF/m

  • Signal Loss: 0.42dB/m @ 850MHz, 0.63dB/m @ 1800MHz

  • Frequency Range: DC-6GHz

  • Velocity of Propagation: 76%

  • Nominal Delay: 4.17ns/m

  • Voltage Withstand: 1000Volts DC

  • Peak Power: 2.5kW


Mechanical Specifications


  • Weight/100m: 3.0kg

  • Operating Temperature: -40° ~ +85°C

  • Minimum Bend Radius: 12.7mm

  • Conductor Material: Seven Strand Solid Copper (0.94mm)

  • Insulating Material: Foam PE (2.79mm)

  • Outer Shield Material:

    • (1) Bonded Aluminium Polyester Tape 100% Coverage (2.95mm)

    • (2) Tinned Copper Wire 88% Coverage (3.53mm)

  • Outer Jacket Material: TPE Weather & UV Resistant (4.95mm ±0.15mm)


A heads up!


  • Emergency stock fulfilment may use standard LMR-195 cable

  • If you specifically require DB-FLEX cable please advise us when placing your order.
