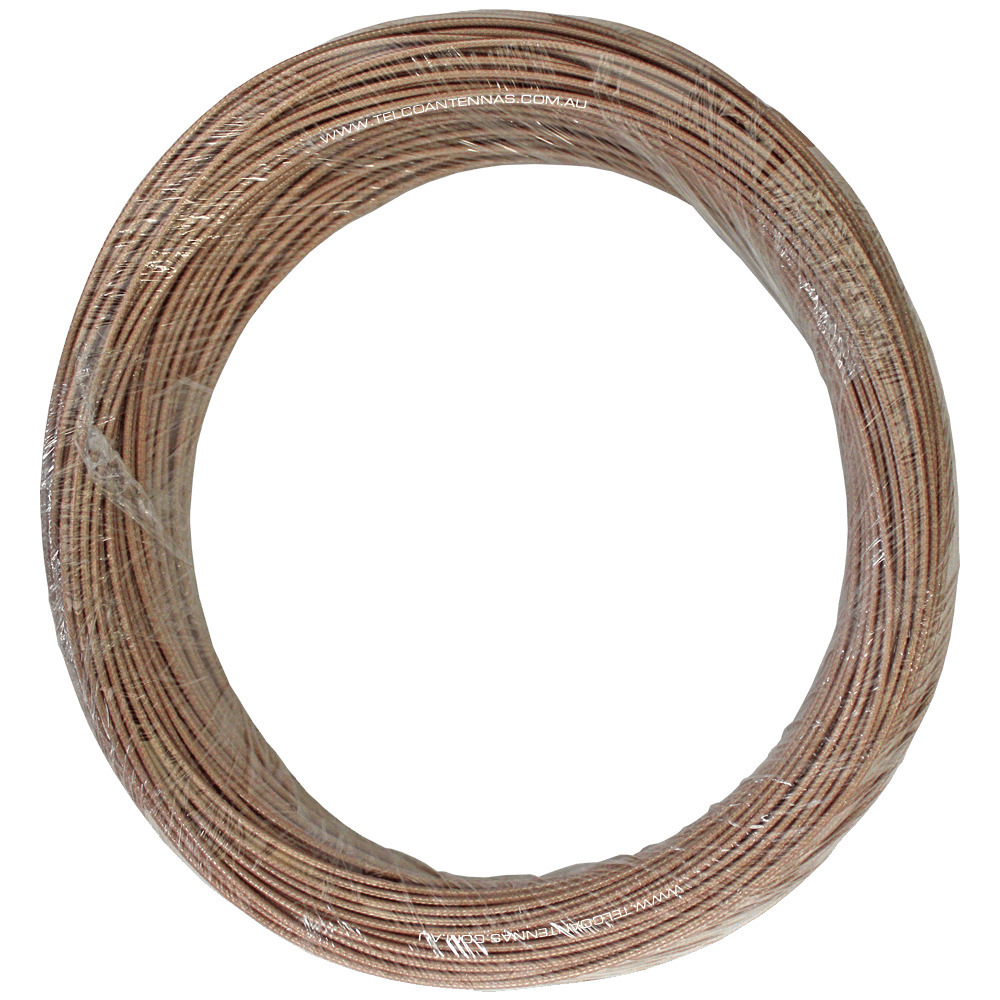

100 Metre Reel RG316 Low Loss 50 Ohm Cable



Key Features



  • RG316/U or RG316 cabling is a very high quality patching cable

  • Buy in bulk and save.

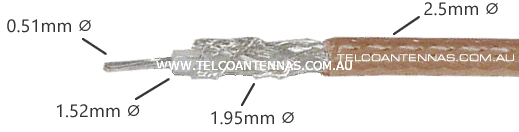

rg316 coaxial cable cutaway specifications



Usage



  • RG316 is a low loss, FEP jacketed miniature coaxial cable capable of withstanding operating temperatures up to 200°C

  • The cable's stranded silver-coated CCS inner conductor and silver-plated copper braid provide superior shielding and low attenuation losses, making it by far the preferred accessory/patch cable over similar 2.5mm cables such as RG174.



Specifications / Frequency



Electrical Specifications



  • Resistance: 50Ω

  • Capacitance: 96pF/m

  • Signal Loss:

    • 0.79dB/m @ 850MHz

    • 1.27dB/m @ 2100MHz

  • Frequency Range: 0-3GHz

  • Maximum Recommended Length: 50cm (cellular bands)

  • Velocity of Propagation: 70%

  • Nominal Delay: 5.08ns/m

  • Voltage Withstand: 1200Volts DC



Mechanical Specifications



  • Weight/100m: 1.8kg

  • Minimum Bend Radius: 13mm

  • Conductor Material: Silver coated CCS (0.51mm)

  • Insulating Material: Teflon PTFE (1.52mm)

  • Outer Shield Material: Silver coated copper braid 95%

  • Coverage (1.95mm)

  • Outer Jacket Material: Brown FEP (2.5mm)



(RG316-100M)

SKU RG316-100M
Shipping Width 0.050m
Shipping Height 0.050m
