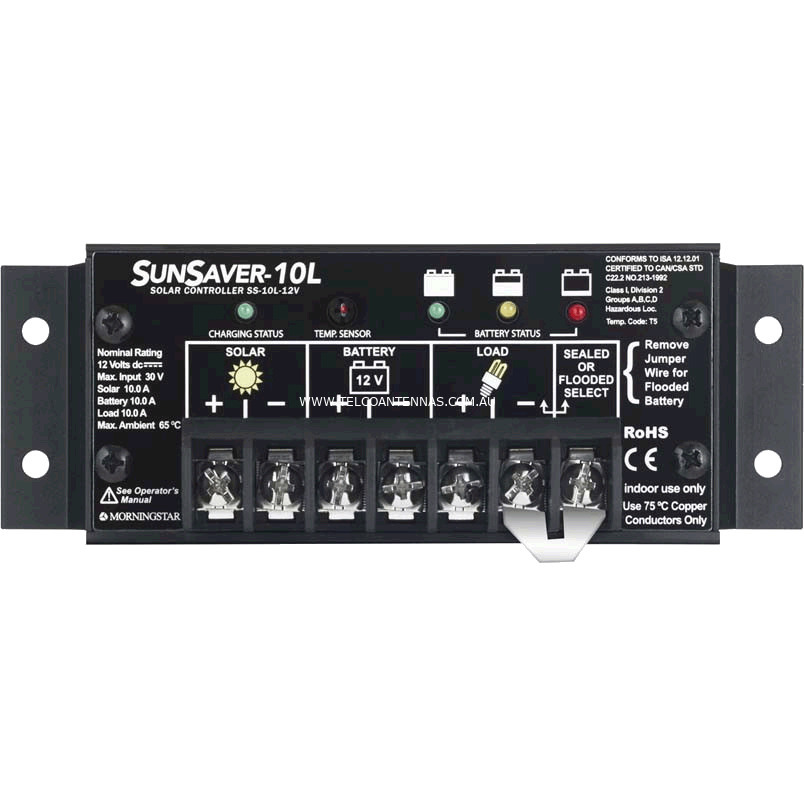

Morningstar SunSaver 10A Solar Regulator Controller 12V LVD Gen-3



Key Features



  • True 0 to 100% PWM duty cycle

  • Rated for 25% overloads

  • Fully encapsulated in epoxy potting

  • Marine rated terminals/anodised case

  • Sealed/Flooded battery select

  • High quality USA engineering with 5 year warranty.



Generation 3 of the SunSaver series has new features:



  • Full electronic protections

  • 4 stage battery charging

  • Self-diagnostic to detect critical faults

  • Multi-color status LED

  • 3 LED battery charge level

  • Dead battery recovery

  • Telecom mode for sensitive loads

  • 15V max charge limit for sensitive loads.



Usage



  • Morningstar’s SunSaver series are the world’s leading small solar controller for micro industrial, professional and consumer applications

  • This series is preferred for all remote, harsh, and hazardous (Class 1, Division 2, Groups A, B, C, D) environment installations due to their solid state design and exceptional build quality.



Specifications / Frequency



Electrical Specifications



  • Nominal DC voltage: 12V

  • Maximum charge current: 10A

  • Load control: 10A

  • Low voltage disconnect (LVD): YES



Mechanical/Environmental Specifications



  • Battery Type: Sealed or flooded - jumper selectable

  • Adjustable Regulation Set-points: No

  • Temperature Compensation: Yes

  • Display: 3 LED

  • Mounting: Wall

  • IP Rating: Epoxy Encapsulated, marine-rated terminals

  • Operating Temperature: -25 to +85°C

  • Ground Type: Negative ground

  • Weight: 230g

  • Warranty: 5 years



Read More





(SS-10L-12VG3)

SKU SS-10L-12VG3
Shipping Weight 0.6000kg
Shipping Width 0.300m
Shipping Height 0.300m
Shipping Length 0.300m
Shipping Cubic 0.027000000m3
