Solar Battery Charger, 10A Solar or DC18V~57V Input, 2x 56V PoE+ 2x 12VDC 10A output


Key Features

  • Dual Input, from solar panel and/or DC (Solar First) to charge 12V battery

  • Up to four outputs: two 56VDC PoE output s on front and two 12VDC outputs at terminal block on rear

  • Active PoE Output support 802.3at handshake

  • DIN Rail Mountable


  • Remote Power Systems; Surveillance, Sensors

  • Wireless Station; AP/Client/Repeaters

  • UPS Systems; Lighting, Fences, Gates


  • Battery Polarity Reverse Protection

  • Battery Over Charge Protection

  • Battery Over Discharge Protection

  • Solar Panel Polarity Reverse Protection

  • Solar Panel Over Charge Protection

  • Output Short Circuit Protection

  • POE Output Short Circuit Protection

  • External fuse with a standard replaceable fuse




  • Solar Panel: 18V~25V (or instead by DC14.4V connect front panel terminal)

  • DC: 18V~57V, 3A minimum at @18V in

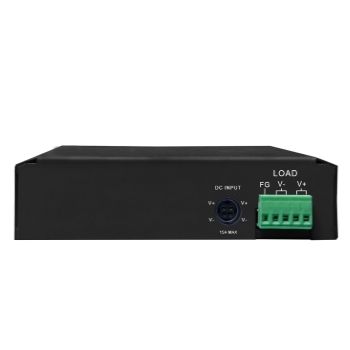

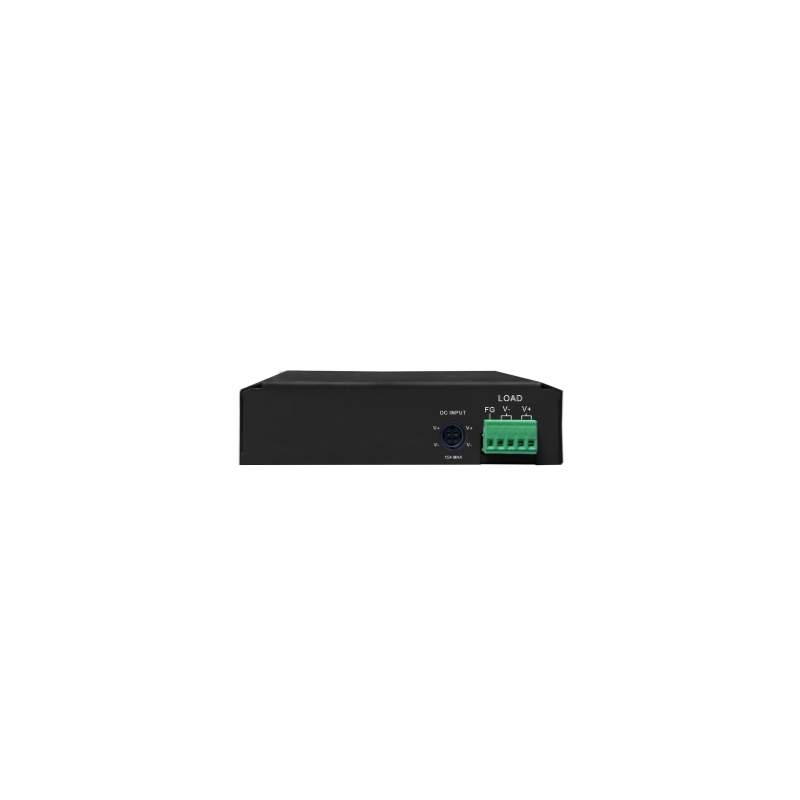

  • DC Output(rear terminal): 12V/3.5A*1 (as Bat. Volt.)*2

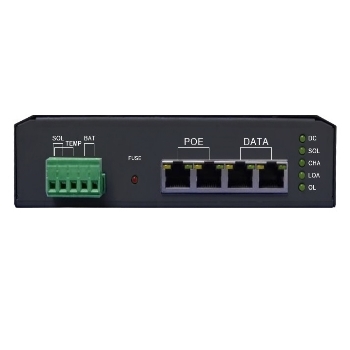

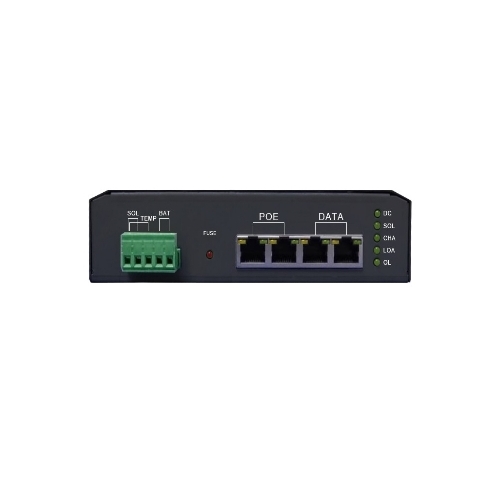

  • PoE Output 1(front RJ45 left): 56V/0.625A(regulated)*3

  • PoE Output 2(front RJ45 right): 56V/0.625A(regulated)*3

    • *1 : continue 3.5A, maximum 8A, off @10~11 A

    • *2 : the same voltage as battery

    • *3 : 802.3at x1,or 802.3af x2 (Output1+ Output2= 35W max)

  • Battery Charge Types:

    • Solar Panel: charge current 10A maximum, depends on the solar panel.

    • DC: constant 2.6 A current at @18V/3A in or 56V/0.9A in

  • Battery Types:

    • 12V LFP26650 LiFePO4 Battery (200Wh~800Wh)

  • Battery Charge Voltage : (DC Input)

    • E/Q = 14.5V ± 0.1V

    • F/L = 13.5V ± 0.2V

  • When the charger is in charging mode and charge current is more than 1.8A charge voltage for battery is 14.5V ± 0.1V

  • When charge current is lower than 1.67A charge voltage for battery is 13.5V ± 0.2V


  • Operation Temperature: -40~+60 Degree
  • Storage Temperature: -40~+85 Degree
  • Operation Humidity: 5%~90% with conformal coating
  • Cooling: Free air cooling
  • SIZE: 180*150*40mm (W*D*H)

Read More



Brand MS Tronic
Shipping Weight 1.0000kg
Shipping Width 0.150m
Shipping Height 0.050m
Shipping Length 0.200m
Shipping Cubic 0.001500000m3
