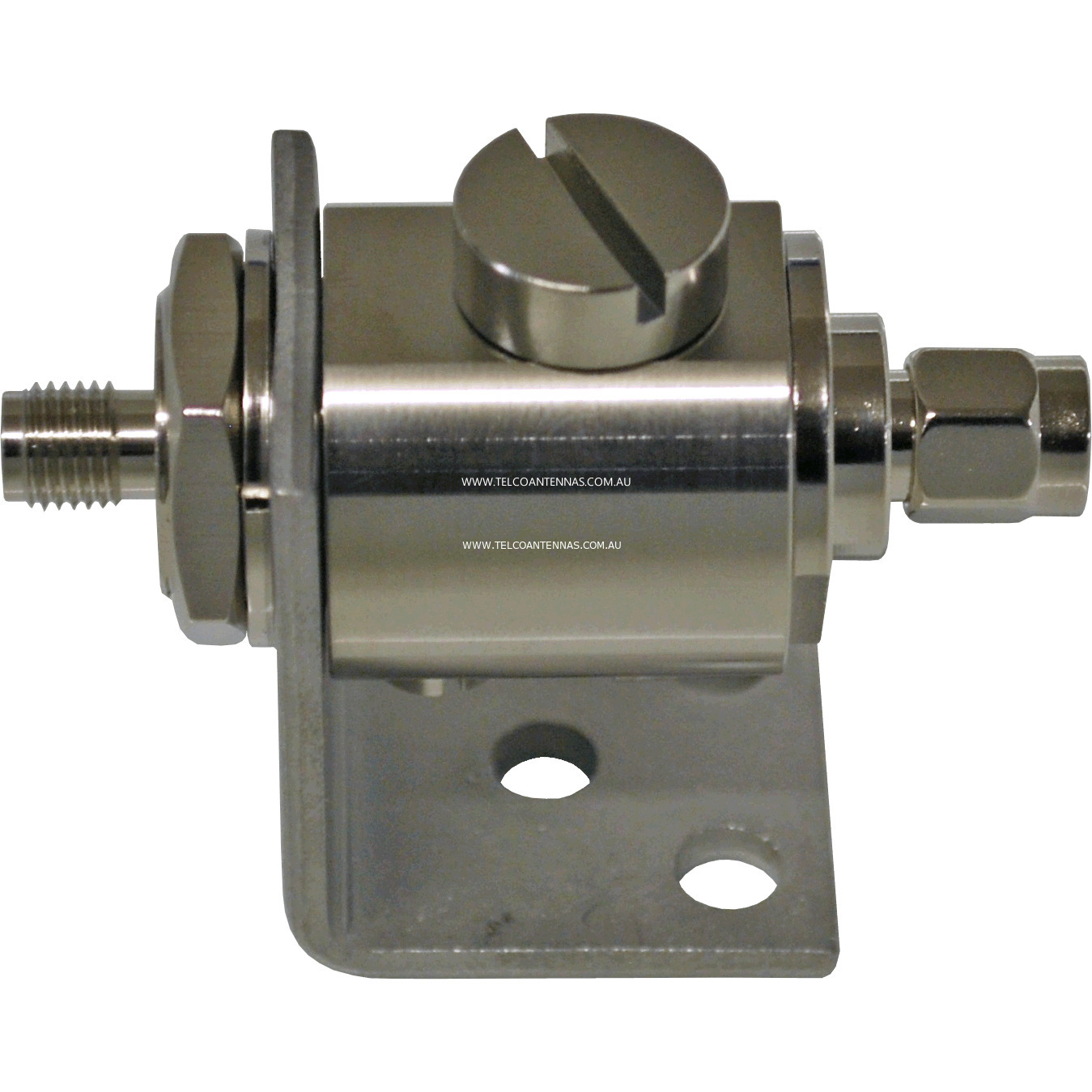

Phaseblocker SMA Male to Female Surge Arrester - up to 6GHz



Key Features



  • SMA Male to SMA Female bulkhead connectors

  • For devices operating 0-40W

  • Bi-directional protection

  • DC Pass

  • Removable L bracket for bulkhead panel mounting

  • Protect your hardware from dangerous electrical surges.



Usage



  • Gas tube lightning protection with excellent VSWR and superior RF performance characteristics for equipment operating DC to 6GHz with up to 40W RF power

  • Male to Female arresters are designed for installation in-line between an antenna and feeder cable

  • By installing at the tower-top position, this arrester helps protect the end user equipment and the cabling itself

  • The arrester features a bulkhead SMA Female connector to mount through an enclosure wall or to tower mount with the included stainless steel bracket

  • Given the critical nature of remote communications, this high grade surge suppressor is  designed with safety as a priority

  • This device has a built-in multi-strike gas-charging surge arrester element, which discharges and grounds the surge the moment the surge voltage exceeds the pre-specified level

  • This device makes the actions of surge discharge and restoration repeatedly, with tube replacement rarely required.



Specifications / Frequency



  • Electrical Specifications

  • Frequency Range: 0.1 to 6000 MHz

  • Input Impedance: 50 Ω

  • VSWR: <1.2:1

  • Insertion Loss: <0.4 dB

  • Return Loss: >26 dB

  • Power Rating: 0 to 40 W

  • Sparkover Voltage: <90 Vdc

  • Voltage protection level @ 3 kA (8/20 μs): <600 V

  • Maximum Discharge Current: 10 kA @ IEC 61000-4-5 8/20 μs waveform



Mechanical/Environmental Specifications



  • Construction: Nickel plated brass

  • Durability: >500 cycles

  • Connector: SMA Male to SMA Female

  • Temperature: -40 to +85 ºC / 5 to 95% non-condensing

  • Environmental Protection Level: IP55

  • Weight: 155 g

  • Dimensions: 52 x 27 mm (L x Ø)



Read More





(LA-SMAMF-6GHZ)

SKU LA-SMAMF-6GHZ
Shipping Weight 0.0450kg
Shipping Width 0.050m
Shipping Height 0.050m
Shipping Length 0.080m
Shipping Cubic 0.000200m3
