QMA (QSMA) Female Bulkhead Crimp Connector



Key Features



  • QMA (QSMA) Socket

  • Nickel plated

  • Suits 2.5mm diameter cables such as RG174, RG178, RG188, RG316, and LMR100



Usage



  • A crimp connector is used to terminate the end of a coaxial cable to allow connection to an RF device or antenna

  • Each series of connector differs by method of connection, size, and electrical properties, allowing a technician to select a connector to best match the intended purpose

  • Most crimp connectors consist of three components - the connector body, pin/socket, and crimping ferrule

  • Terminating a coaxial cable with a crimp connector requires three tools - a wire stripper/cutter, soldering iron, and hex crimp

  • You can find instructional videos on crimping most connectors on YouTube.



Crimp Hex Die Sizing



  • RG316/RG174 - 0.128"

  • RG58/LMR195 - 0.213"

  • LMR400/RG8 - 0.429"



Automatic Price Breaks



  • The price listed for this item is for a quantity of 1-24 units

  • Prices will automatically incur a bulk-buy discount during checkout depending on quantity ordered

  • For large orders please contact our sales team to arrange a quote.



Discounts:



  • 25-49 units = 10% Discount

  • 50-74 units = 15% Discount

  • 75-99 units = 20% Discount

  • 100-249 units = 24% Discount

  • 250-499 units = 29% Discount

  • 500-999 units = 33% Discount

  • +1000 units = 37% Discount



Specifications



Electrical Specifications



  • Resistance: 50Ω

  • Frequency Range: DC-18GHz

  • Working Voltage: 335V RMS

  • Withstand Voltage: 1000V RMS

  • Contact Resistance:

    • - (1) Centre Contact: <3mΩ

    • - (2) Outer Contact: <2.5mΩ

  • Insulation Resistance: >5000MΩ

  • Insertion Loss: <0.15dB/6GHz

  • VSWR: <1.2:1 (right angle)



Mechanical/Environmental Specifications



  • Durability: >500 cycles

  • Body Material: Brass

  • Plating Material: Nickel

  • Pin/Socket Contact: Brass/Beryllium-Copper

  • Pin/Socket Plating: Gold

  • Crimp Ferrule Material: Copper-alloy

  • Crimp Ferrule Plating: Nickel

  • Insulator: Teflon

  • O-Ring: Silicone Rubber

  • Operating Temperature: -55° to 155° C

  • CECC 22110

  • MIL-C-39012

  • IEC 60169-15

  • RoHS Compliant (Pb Free)

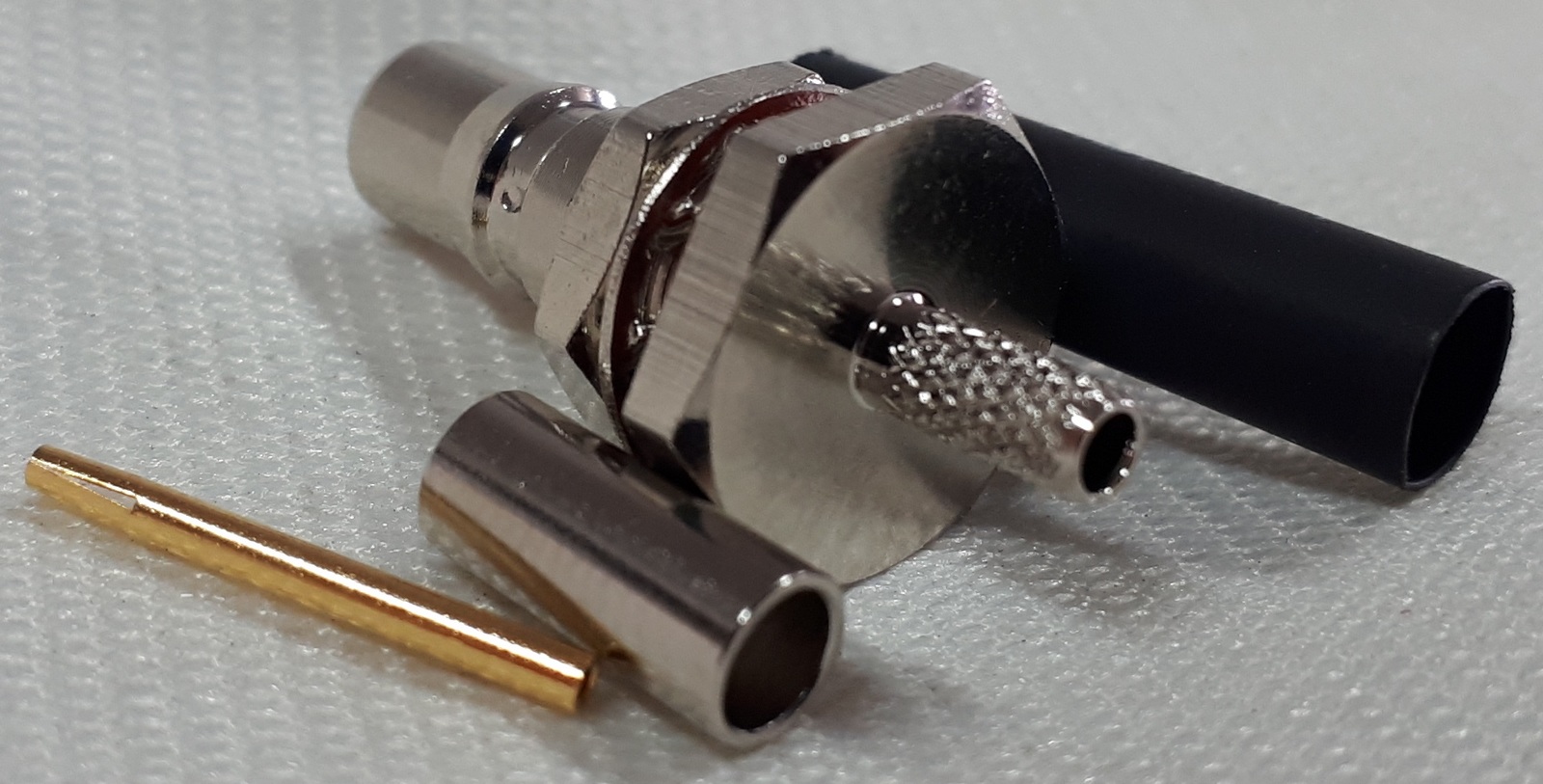

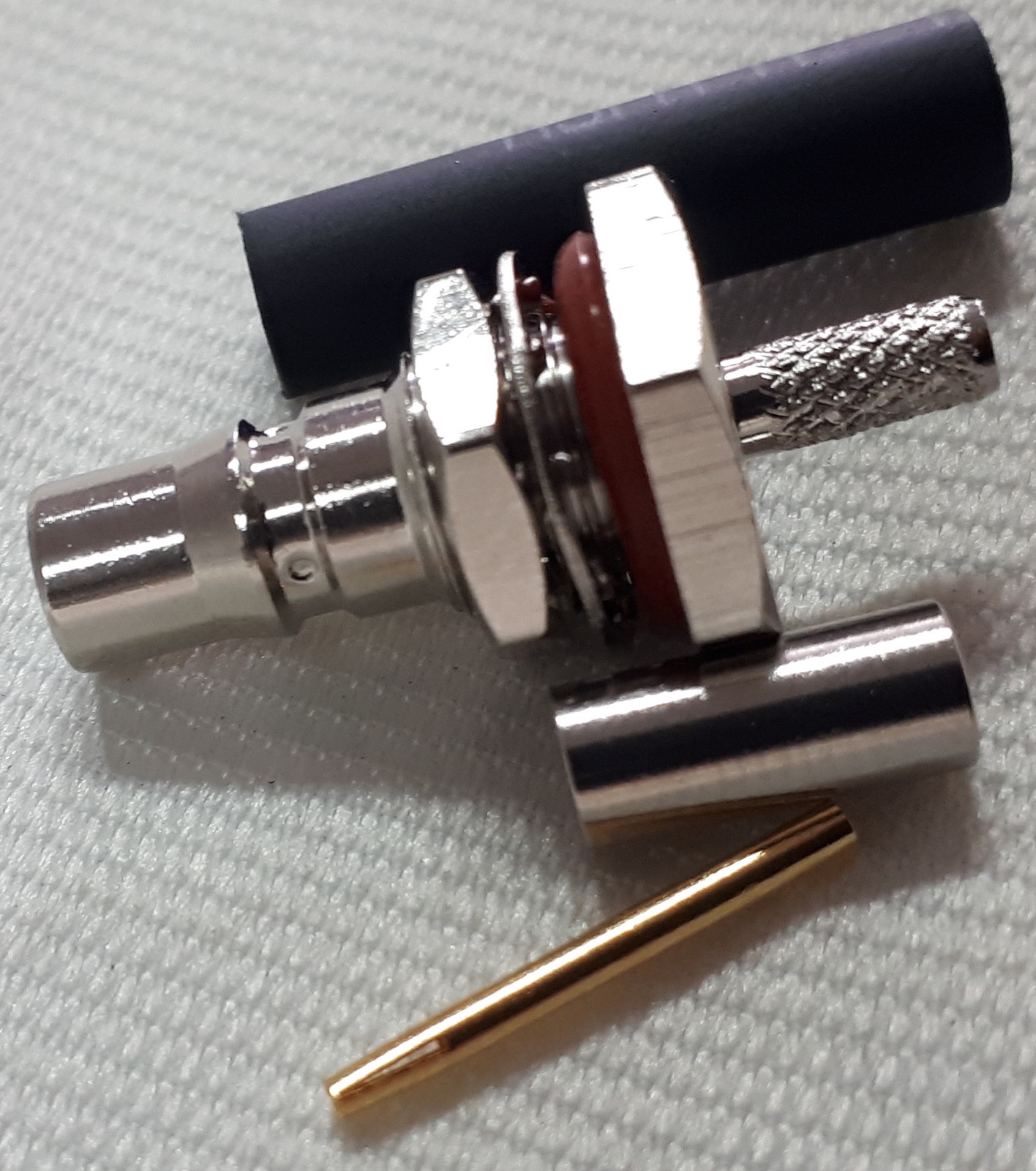

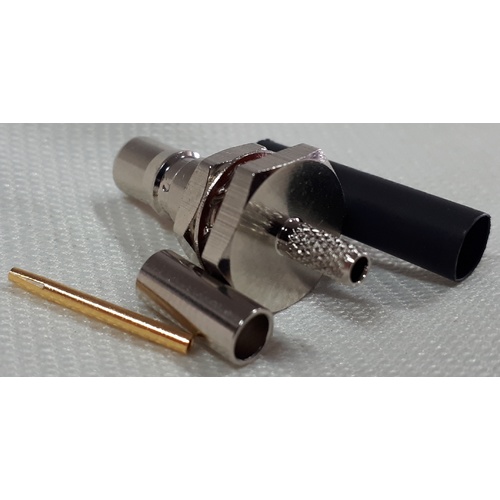

Product image representative only, for exact dimensions and/or specification please contact us for a copy of the CAD drawing.



tick rohs compliant lead free

(QMAF-174)

SKU QMAF-174
Shipping Weight 0.0450kg
Shipping Width 0.050m
Shipping Height 0.050m
Shipping Length 0.050m
Shipping Cubic 0.000125000m3
