QMA Male Solder Connector



Key Features



  • QMA plug

  • Suits 5mm diameter cables such as LMR195, RG58, and Belden 9907



Usage



  • A crimp connector is used to terminate the end of a coaxial cable to allow connection to an RF device or antenna

  • Each series of connector differs by method of connection, size, and electrical properties, allowing a technician to select a connector to best match the intended purpose

  • Most crimp connectors consist of three components - the connector body, pin/socket, and crimping ferrule

  • Terminating a coaxial cable with a crimp connector requires three tools - a wire stripper/cutter, soldering iron, and hex crimp

  • You can find instructional videos on crimping most connectors on YouTube.



Crimp Hex Die Sizing



  • RG316/RG174 - 0.128"

  • RG58/LMR195 - 0.213"

  • LMR400/RG8 - 0.429"



Automatic Price Breaks



  • The price listed for this item is for a quantity of 1-24 units

  • Prices will automatically incur a bulk-buy discount during checkout depending on quantity ordered

  • For large orders please contact our sales team to arrange a quote.



Discounts:



  • 25-49 units = 10% Discount

  • 50-74 units = 15% Discount

  • 75-99 units = 20% Discount

  • 100-249 units = 24% Discount

  • 250-499 units = 29% Discount

  • 500-999 units = 33% Discount

  • +1000 units = 37% Discount



Electrical Specifications



  • Frequency Range: 0-6GHz

  • Impedance: 50Ω nominal

  • Voltage Rating: 500 volts peak

  • Dielectric Withstanding Voltage: 1000 volts RMS

  • VSWR: <1.05:1



Mechanical Specifications



  • Temperature Range: -40°C to +80°C

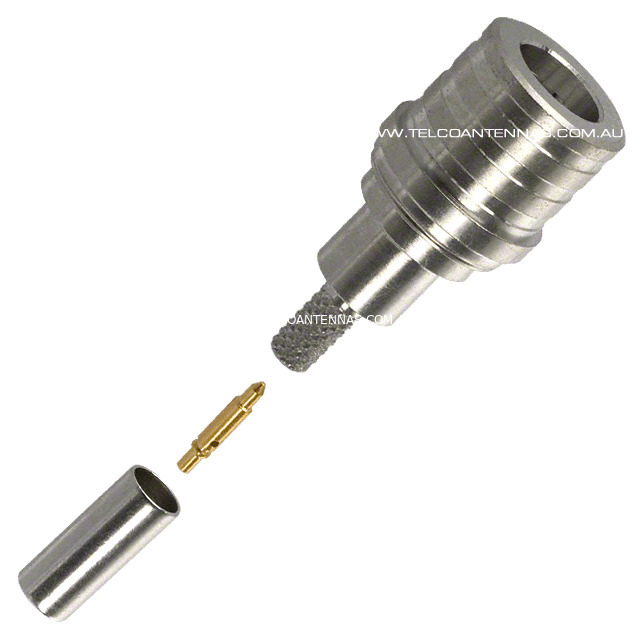

Product image representative only, for exact dimensions and/or specification please contact us for a copy of the CAD drawing.

(QMAM-195)

SKU QMAM-195
Shipping Weight 0.0450kg
Shipping Width 0.050m
Shipping Height 0.050m
Shipping Length 0.030m
Shipping Cubic 0.000075000m3
