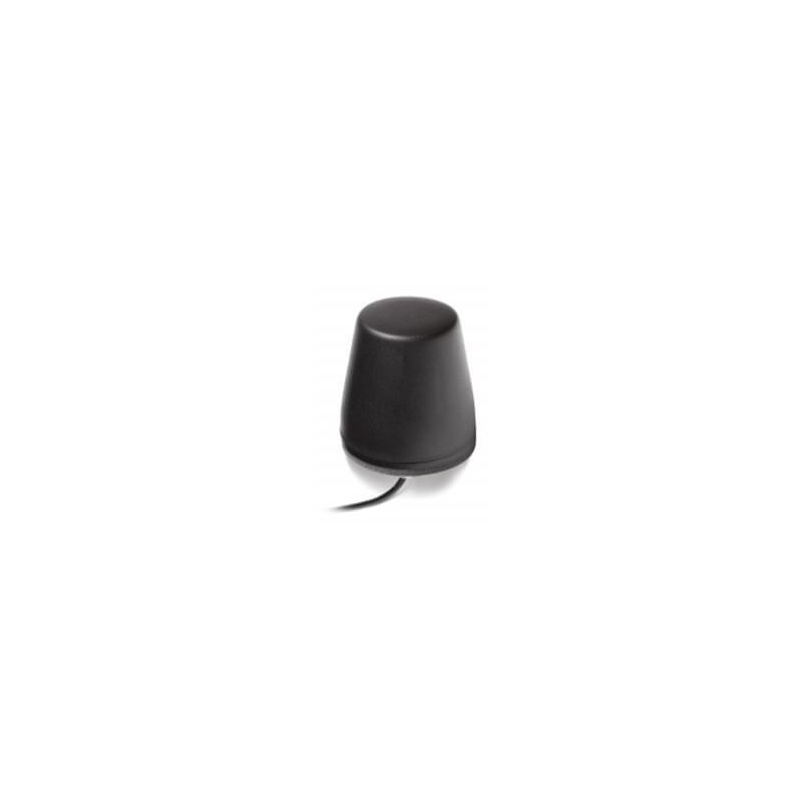

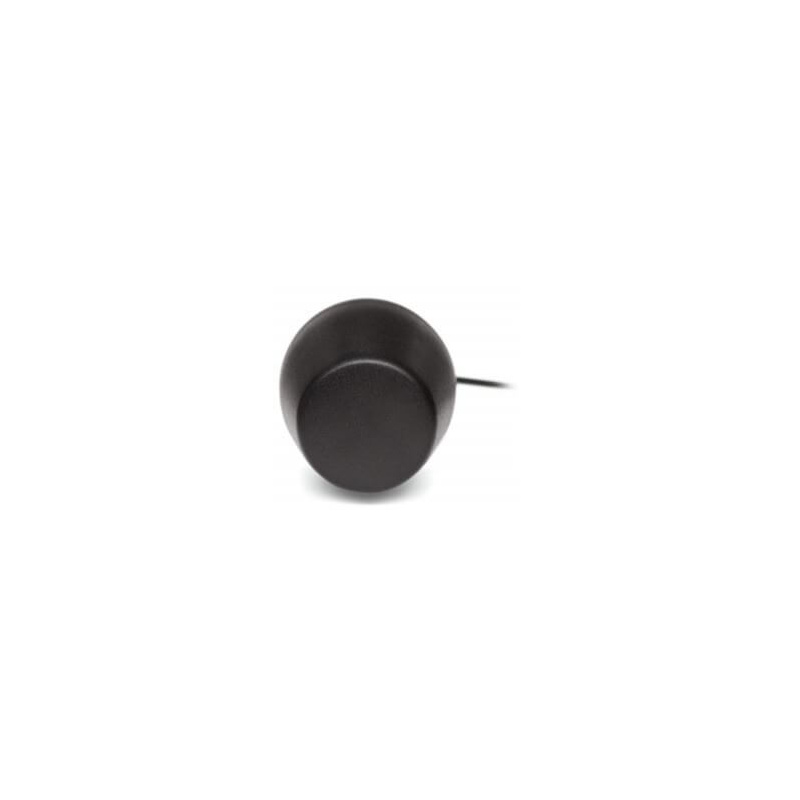

RFI CSM500 Low Profile M2M Antenna



Key Features



  • Covers all 4G LTE & 3G cellular bands

  • Screw mount with anti-rotation mechanism

  • Ground plane independent

  • Ultra-compact design: Ø 50 x 50.8 mm

  • Weatherproof IP69 Design

  • Supplied standard with 1.5m RG58 cable and SMA male connector.



Usage



  • The CSM500 is a ultra compact low-profile omnidirectional LTE antenna that provides excellent coverage for mobile and fixed data applications from 698MHz to 2.7GHz

  • The antenna features an attractive, compact housing which can be used in both indoor and outdoor applications

  • Its robust design and low visual impact make it perfect for fixed and mobile data applications

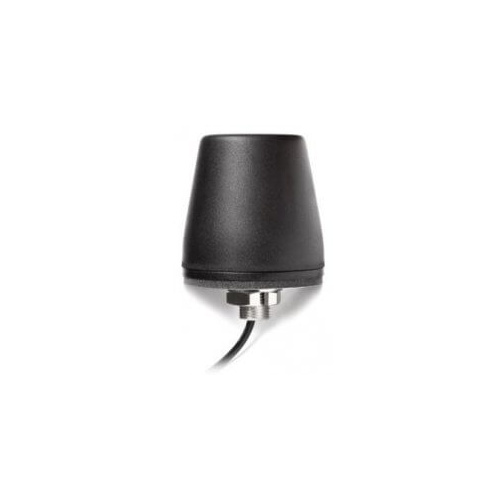

  • This extremely durable antenna uses a standard 12mm stud mount with an integrated rubber O-ring seal and is dust-tight and waterproof - IP69 rated

  • You'll see this type of antenna often mounted on ATMs, vending machines, transit stations, and a wide range of other M2M applications.



Specifications / Frequency



Network Compatibility
Yes/No
Gain
Telstra 4GX (700MHz)
compatible
3.6dBi
Optus 4G+ (700MHz)
compatible
3.6dBi
Telstra Next-G™ (850MHz)
compatible
3.6dBi
Vodafone 4G+ (850MHz)* *Please check Vodafone Coverage Map
compatible
3.6dBi
Optus Regional 3G (900MHz)* *Please check Optus Coverage Map.
compatible
3.6dBi
Vodafone Regional 3G (900MHz)* *Please check Vodafone Coverage Map.
compatible
3.6dBi
Telstra/Optus/Vodafone 4G (1800MHz)
compatible
3.2dBi
All carriers - Urban/Metro 3G (2100MHz)
compatible
3.2dBi
Optus 4G (2300MHz) compatible 3.2dBi
802.11 b/g/n WiFi (2400MHz)
compatible
1.6dBi
Telstra Metro 4GX (2600MHz)
compatible
1.9dBi
Optus Metro 4G+ (2600MHz) compatible 1.9dBi



Electrical Specifications



  • Frequency Range: 698-960MHz / 1710-2170MHz / 2300-2700MHz

  • Input Impedance: 50Ω

  • VSWR: <2.0:1

  • Vertical Beamwidth: 60° / 30° / 20°

  • Radiation: Omnidirectional

  • Maximum Power: 10Watts



Mechanical/Environmental Specifications.



  • Construction: Black polycarbonate radome

  • Cable: 1.5M low loss RG58 cable

  • Connector: SMA Male

  • Weight: 0.17kg

  • Mounting: 16mm Stud Mount (cable egress through stud)

  • Dimensions: 95mm (H) 50mm (Diameter)



Read More





(CSM500)

SKU CSM500
Brand RFI
Shipping Weight 0.0450kg
Shipping Width 0.100m
Shipping Height 0.050m
Shipping Length 0.200m
Shipping Cubic 0.001000000m3
