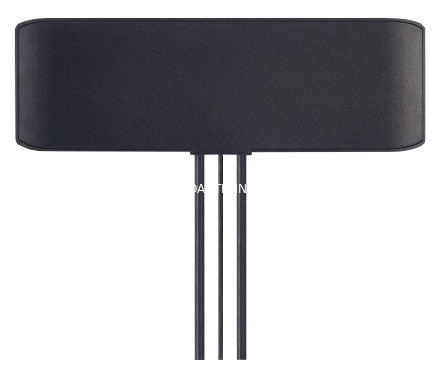

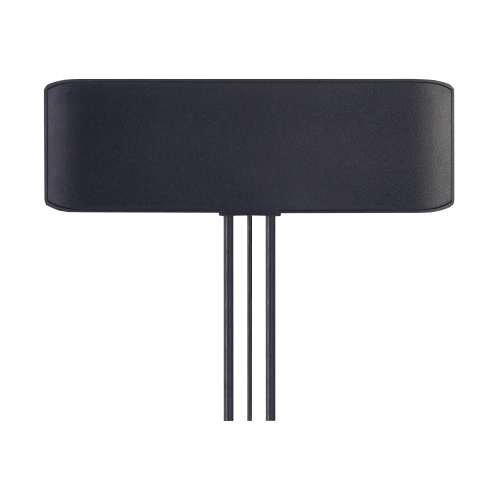

Taoglas MA240 Genesis 3-in-1 Antenna - 700-2700MHz + GPS



Key Features



  • Adhesive Mounted

  • 700-2700MHz MIMO

  • GPS-GLONASS 2 Stage LNA 30dB gain

  • High Grade 3M Double Sided Tape

  • Waterproof IP67 Rated.

  • Your choice - 3x 2m or 5m cables

  • 3x SMA Male connectors.



Usage



  • The MA.240 4G Genesis antenna is an omni-directional, fully IP67 waterproof external M2M antenna for use in telematics, transportation and remote monitoring applications worldwide

  • It is designed to be mounted directly on glass or plastic in the interior of vehicles

  • Some of the typical applications include: HD Video over LTE, First Responder and Emergency Services, Automotive Vehicle Tracking and Telematics

  • This unique antenna delivers powerful MIMO antenna technology for worldwide 4G LTE bands at 700MHz/800MHz/1700MHz/1800MHz/2600MHz, plus GPS-GLONASS for next generation location accuracy. 4G wireless applications demand high speed data uplink and downlink

  • High efficiency and high gain MIMO antennas are necessary to achieve the required signal to noise ratio and throughput required to solve these challenges

  • Taoglas also takes care to have high isolation between the two MIMO antennas to prevent self-interference

  • Low loss cables are used to keep efficiency high over long cable lengths. In contrast, smaller MIMO antennas with poorer quality thinner cables will have much reduced efficiency and isolation, which would lead to a large drop in system throughput or drops, and may indeed not make a system connection at all

  • The GPS-Glonass antenna has been carefully designed to work equally well on both GPS and Glonass bands, leading to higher location accuracy and stability of tracking in urban environments.



Specifications / Frequency



Network Compatibility
Yes/No
Gain
Telstra 4GX (700MHz)
compatible
2.59dBi
Optus 4G+ (700MHz)
compatible
2.59dBi
Telstra Next-G™ (850MHz)
compatible
-0.57dBi
Vodafone 4G+ (850MHz)* *Please check Vodafone Coverage Map
compatible
-0.57dBi
Optus Regional 3G (900MHz)
compatible
-1.55dBi
Vodafone Regional 3G (900MHz)
compatible
-1.55dBi
LPWAN/ISM (915MHz)
compatible
-1.55dBi
Telstra/Optus/Voda 4G (1800MHz)
compatible
1.49dBi
All carriers - Urban/Metro 3G (2100MHz)
compatible
-1.17dBi
Telstra Metro 4GX (2600MHz)
compatible
1.94dBi
LTE Band 42 (3500MHz)
compatible
1.94dBi



Electrical Specifications



  • Frequency Range: 698-803MHz / 824-960 / 1710-2170 / 2490-2690 / 3410-3490MHz

  • VSWR: 1.5:1

  • Impedance: 50Ω

  • Radiation: Omnidirectional

  • Maximum Power: 10Watts



Mechanical/Environmental Specifications



  • Construction: PC+ABS Alloy

  • Cable: 1x 5m RG174 GPS, 2x 5m CFD200 Cellular, fully customizable

  • Connector: 3x SMA male standard, fully customizable

  • Antenna Dimensions: 205.8 x 58 x 12.4mm

  • Weight: 250g Ingress

  • Protection Rating: IP67

  • Operation Temperature: -40°C to 85°C

  • Storage Temperature: -40°C to 90°C

  • Humidity: Non-condensing 65°C 95% RH



Read More





taoglas logo

(MA240.LBI.005)

SKU MA240.LBI.005
Brand Taoglas
Shipping Weight 0.5500kg
Shipping Width 0.250m
Shipping Height 0.060m
Shipping Length 0.190m
Shipping Cubic 0.002850000m3
