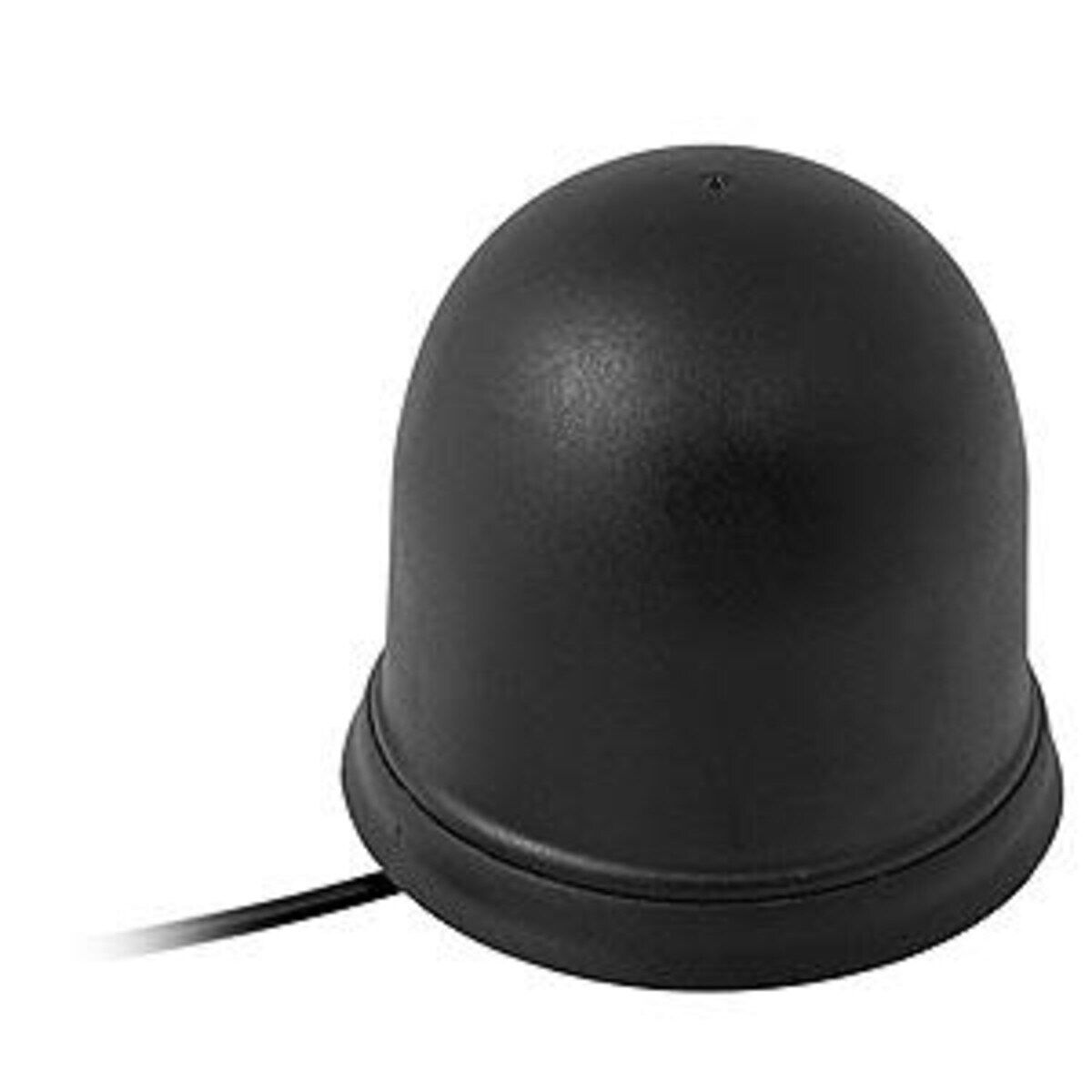

RFI ISM 900MHz Dome Antenna - Peak 4dBi Gain



Key Features

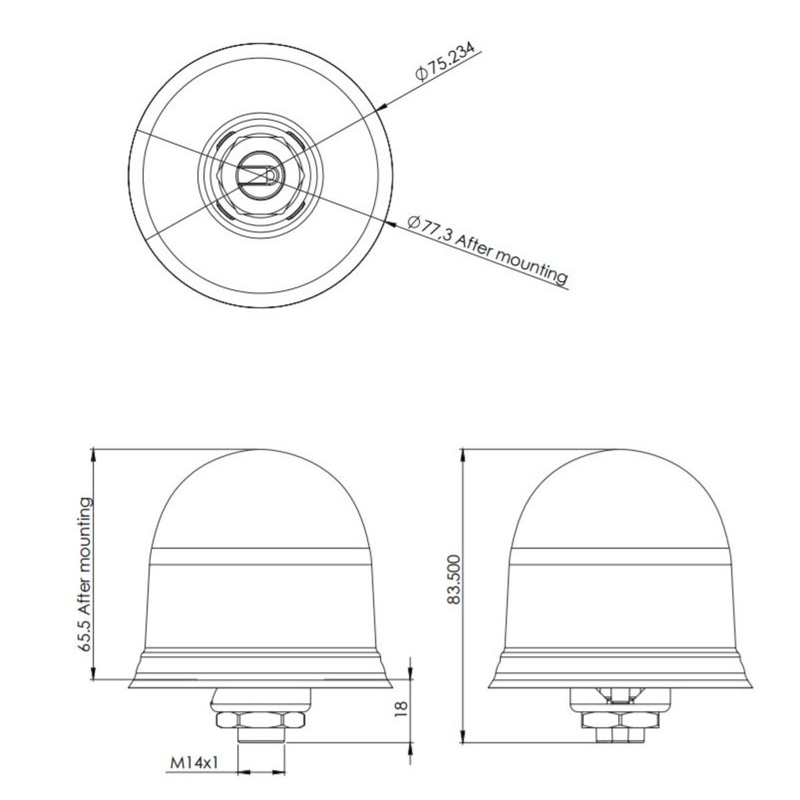

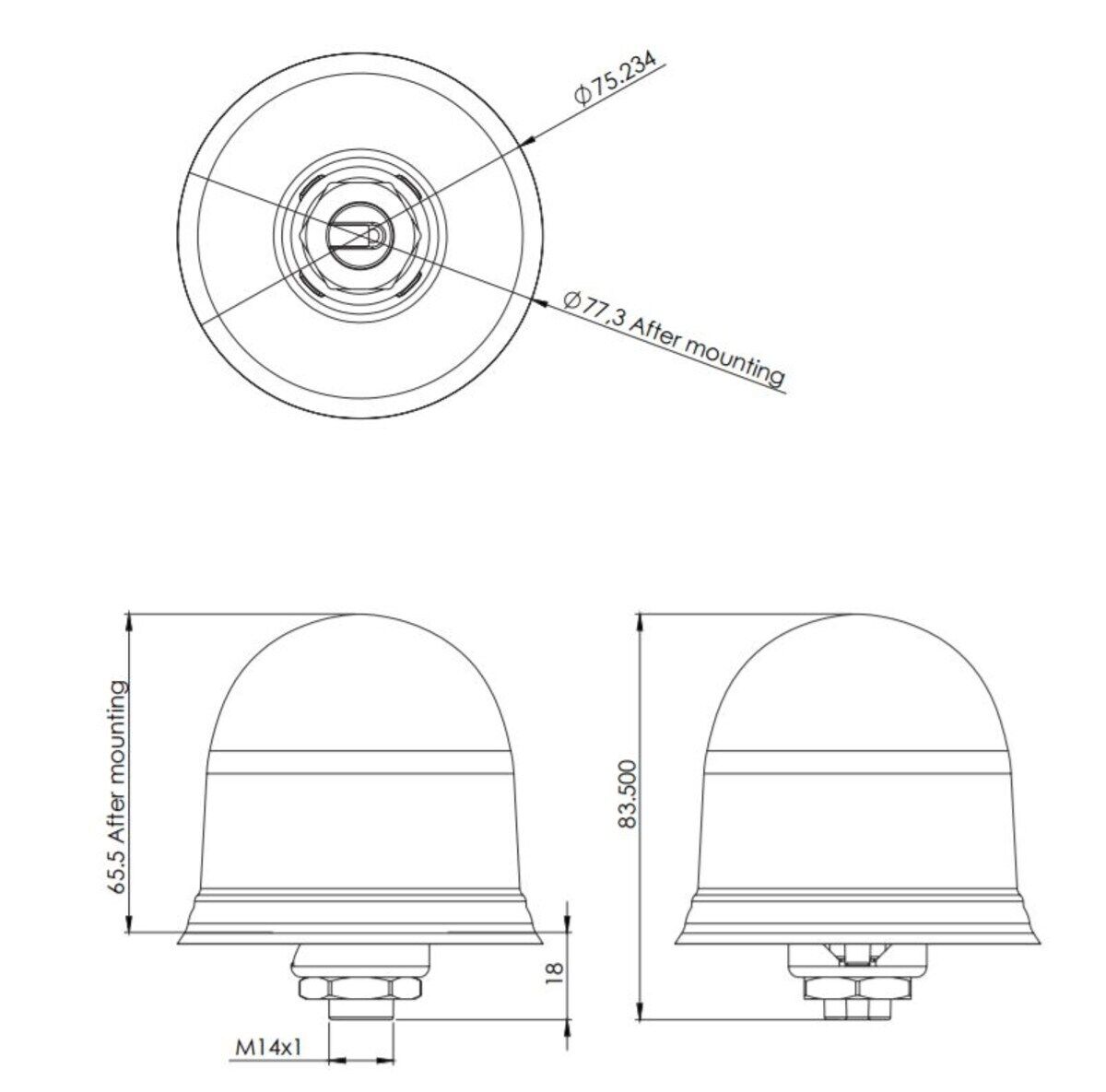

  • Compact, rugged design – only 66.5mm tall
  • Mounts via M14 thread stud and nut
  • IP67 / IK09 / IP69K



The ISM9-SDA Series is a compact rugged omni-directional 915MHz ISM band that provides excellent coverage for ISM, GSM, LoRa and SIGFOX applications.

The antenna features an attractive, compact housing which can be used in both indoor and outdoor applications.

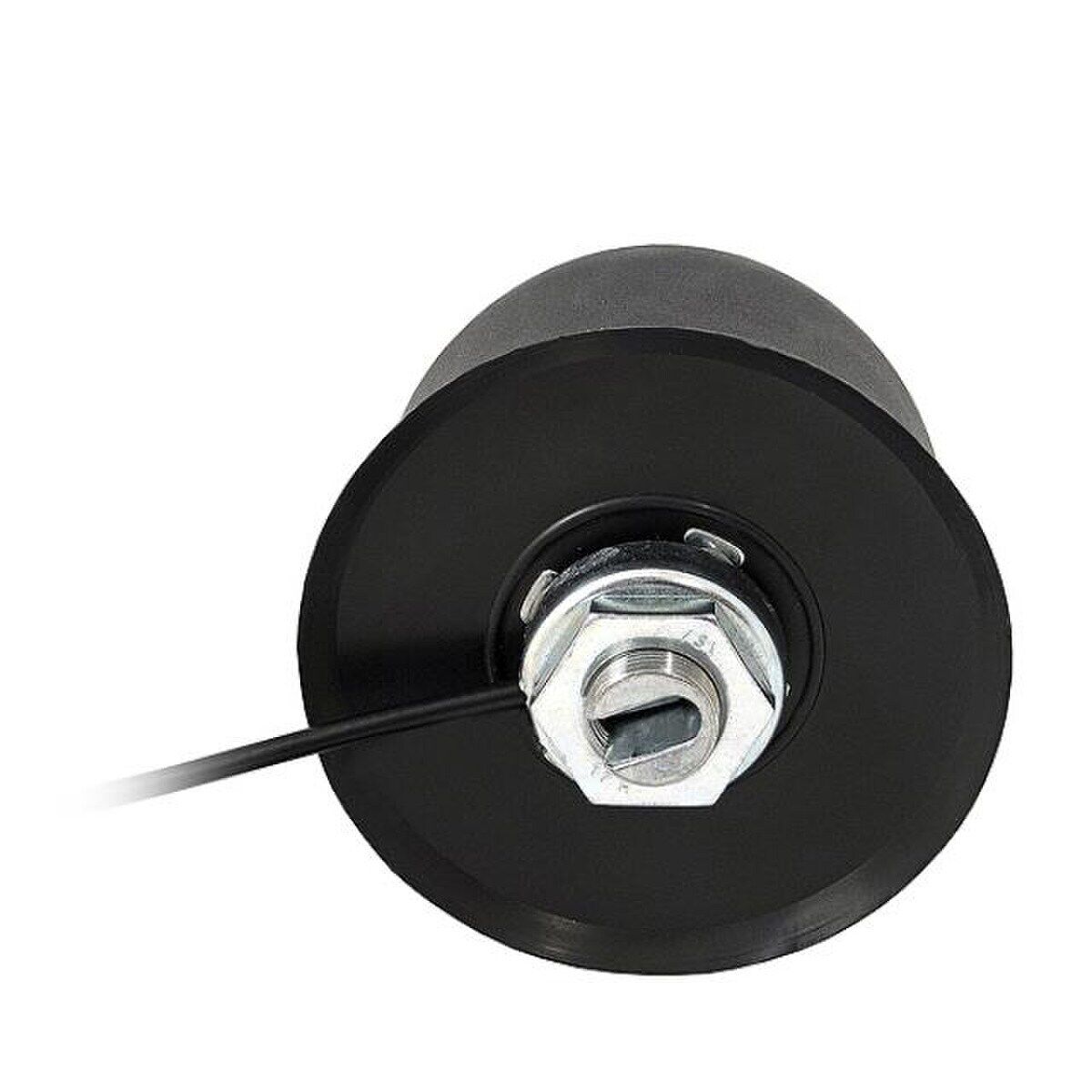

The antenna is mounted via a M14 mm stud/nut and the base incorporates a rubber seal.



Specifications

Height [mm] 66.5
Brand RFI
IP Rating IP67
Operating Temperature Range [°C] -40 to +85
Frequency MHz 868 - 928
Tuned Bandwidth Full. No tuning required
Construction ABS plastic radome
Radome Diameter Mm 77.3mm
VSWR <2.0:1
Polarisation Linear
Power [W] 50
Cable And Connector 1.5m RG174 terminated with SMA (M) connector
Packaging Clear Bag
Antenna Type Low Profile, Omni-Directional SISO
Antenna Application IoT and M2M, Terminal Antenna
Antenna Configuration SISO



Read More



(ISM9-SDA-1.5M-SMA)

SKU ISM9-SDA-1.5M-SMA
Brand RFI
Shipping Weight 0.1500kg
Shipping Width 0.050m
Shipping Height 0.050m
Shipping Length 0.100m
Shipping Cubic 0.000250000m3
