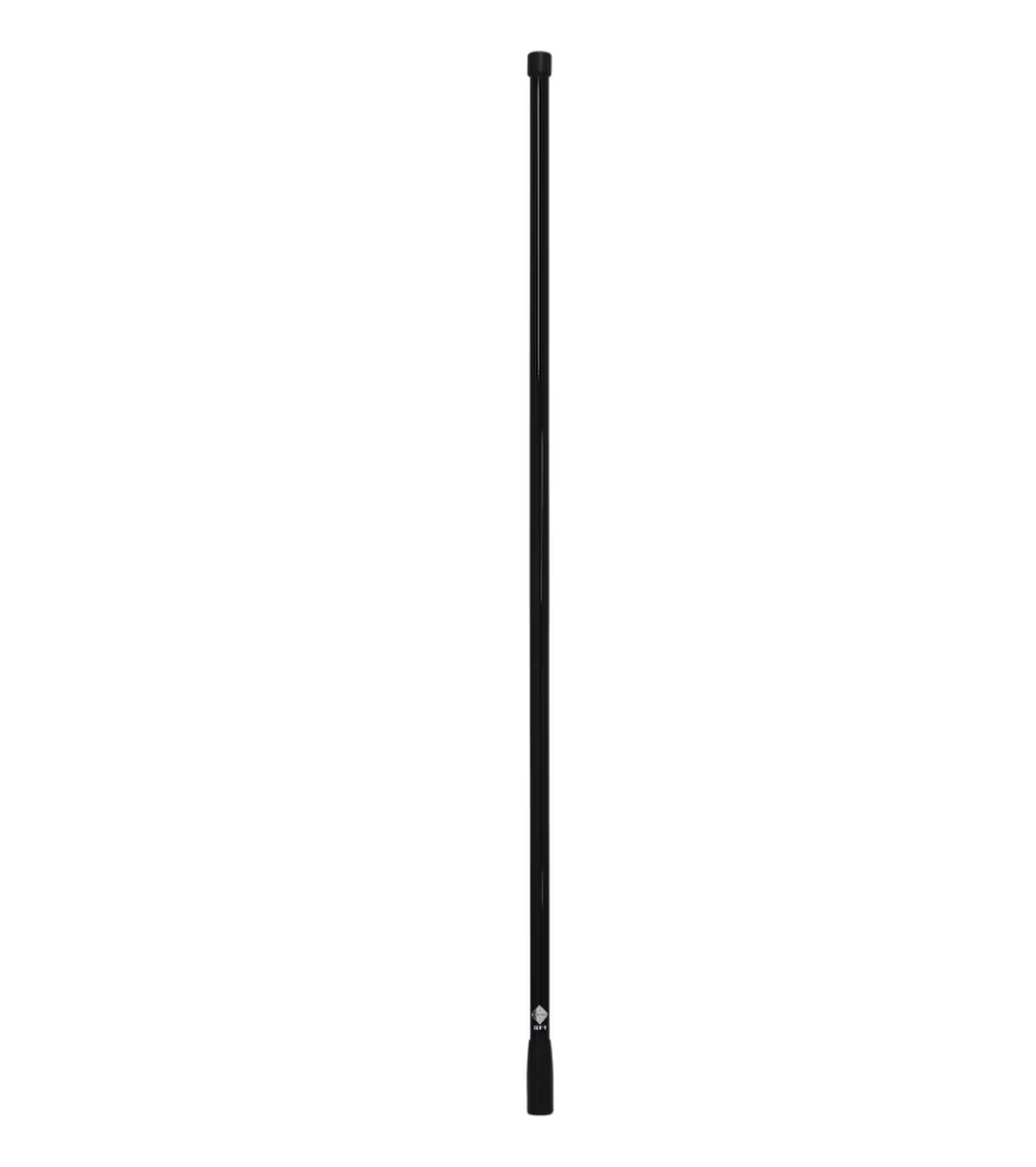

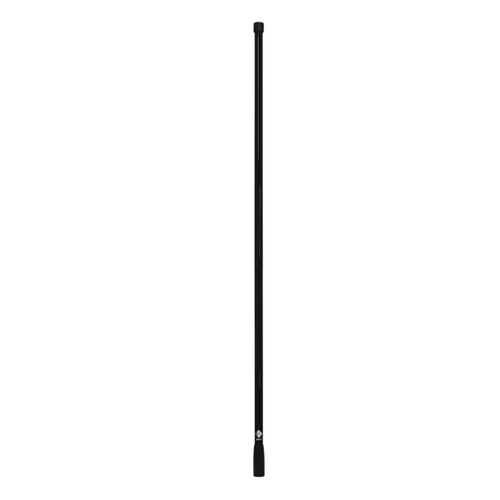

RFI ISM/LoRa 6dBi Collinear Antenna (824-960 MHz) - CDR2795-ISM900



Key Features



  • Patented PCB based collinear design offering the ultimate in pattern and gain stability
  • 6dBi gain providing excellent coverage
  • Integrated N male connector allowing for easy mounting for stationary and spring mounted applications

RFI’s CDR2795-ISM900 antenna is a high-performance collinear narrow band antenna designed for the 900MHz ISM band.

The  CDR2795-ISM900 offers a gain of 6dBi and is particularly suitable for ISM-based networks, including LoRaWAN, Zigbee, and Helium.

The antenna is equipped with an integrated N Male connector and an internal PCB radiating element, ensuring consistent VSWR, radiation pattern, and tilt characteristics throughout the operating band.



Specifications

Length [mm] 841
Frequency MHz 824-960
VSWR <2.0:1
Nominal Gain [dBi] 6
Antenna Type Collinears, Meander, Omni-Directional SISO
Antenna Application IoT and M2M, Terminal Antenna



Read More



(CDR2795-ISM900)

SKU CDR2795-ISM900
Brand ZCG
Shipping Weight 0.6000kg
Shipping Width 0.080m
Shipping Height 0.080m
Shipping Length 0.900m
Shipping Cubic 0.005760000m3
