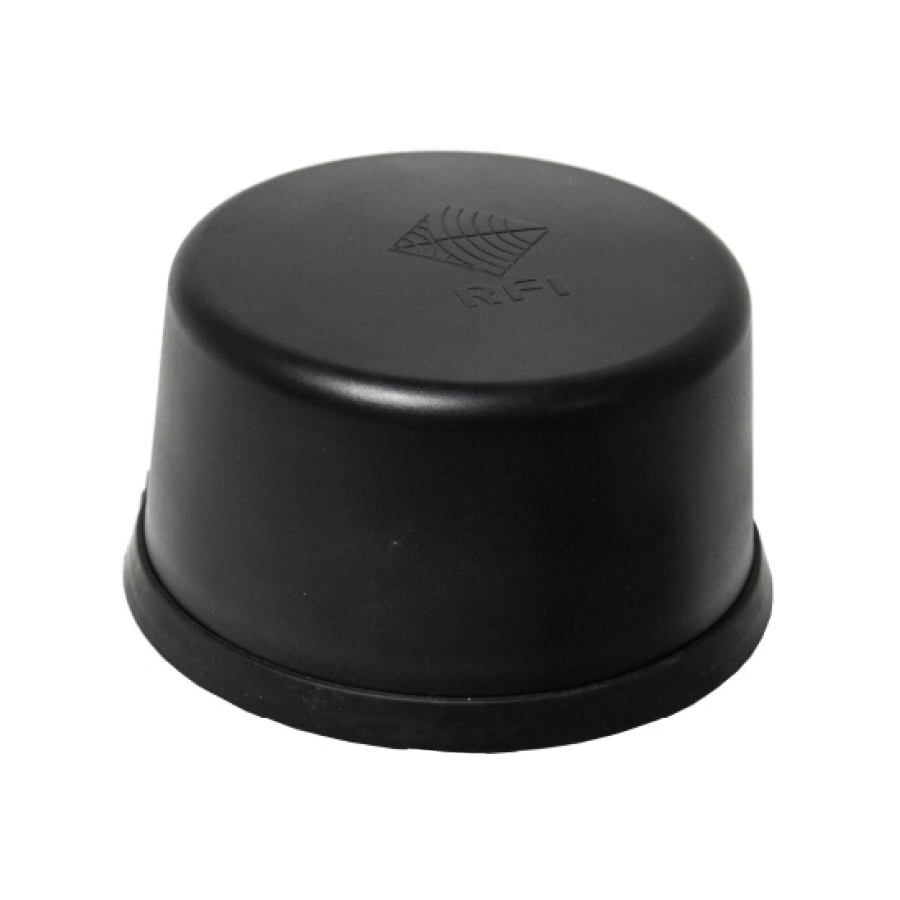

RFI LTE MIMO & GPS Low Profile Antenna - 3 Feeds

(2 x Cellular & 1 x GPS)



Key Features



  • Suitable for 3G and 4G Networks

  • Active GPS

  • Extremely low profile 70mm height

  • IP65 Rated

  • M16 stud offers ease of installation in the field



Usage



  • The LMHP-G-1.5M-FS antenna is a heavy-duty, fully IP66 waterproof external M2M antenna for use in telematics, transportation and remote monitoring applications

  • The LMHP-G-1.5M-FS  is unique in the market because it combines a 3-in-1 GPS/GLONASS & MiMo Cellular (2G, 3G, & 4G) elements inside a single heavy-duty antenna radome with high efficiency in a compact format

  • For industries such as commercial vehicle telematics, remote monitoring, smart meter systems and construction equipment, the LMHP-G-1.5M-FS provides a robust, rugged antenna that is durable, even in extreme environments



Specifications / Frequency



Network Compatibility
Yes/No
Gain
Telstra 4GX (700MHz)
compatible
2dBi
Optus 4G+ (700MHz)
compatible
2dBi
Telstra Next-G™ (850MHz)
compatible
2dBi
Vodafone 4G+ (850MHz)
compatible
2dBi
Optus Regional 3G (900MHz)
compatible
2dBi
Vodafone Regional 3G (900MHz)
compatible
2dBi
Telstra/Optus/Vodafone 4G (1800MHz)
compatible
4dBi
All carriers - Urban/Metro 3G/4G (2100MHz)
compatible
4dBi
802.11 b/g/n WiFi (2400MHz)
compatible
4dBi
Telstra Metro 4GX (2600MHz)
compatible
4dBi
 Metro 4GX (2600MHz) compatible 4dBi


Electrical Specifications



  • Frequency Range: 698-960/1710-2700MHz

  • GPS: 1575.42 MHz

  • Input Impedance: 50Ω

  • Power Rating: 10W

  • VSWR: <2.5:1

  • Polarisation: Linear Vertical

  • Radiation: Omnidirectional



Mechanical/Environmental Specifications



  • Construction: Black UV stable ABS

  • Cellular Cable: RG174

  • Connector: FME Female

  • GPS Cable: RG174

  • Connector: SMA Male

  • Thermal Shock: -30°C to +80°C

  • Weight: 0.5kg

  • Dimensions: 66 x 110mm (H x Diameter)

  • Mounting: Panel Mount - M16 thread stud & nut (28 long)



Read More

(LMHP-G-1.5M-FS)

SKU LMHP-G-1.5M-FS
Brand RFI
Shipping Weight 0.4000kg
Shipping Width 0.150m
Shipping Height 0.130m
Shipping Length 0.145m
Shipping Cubic 0.002827500m3
