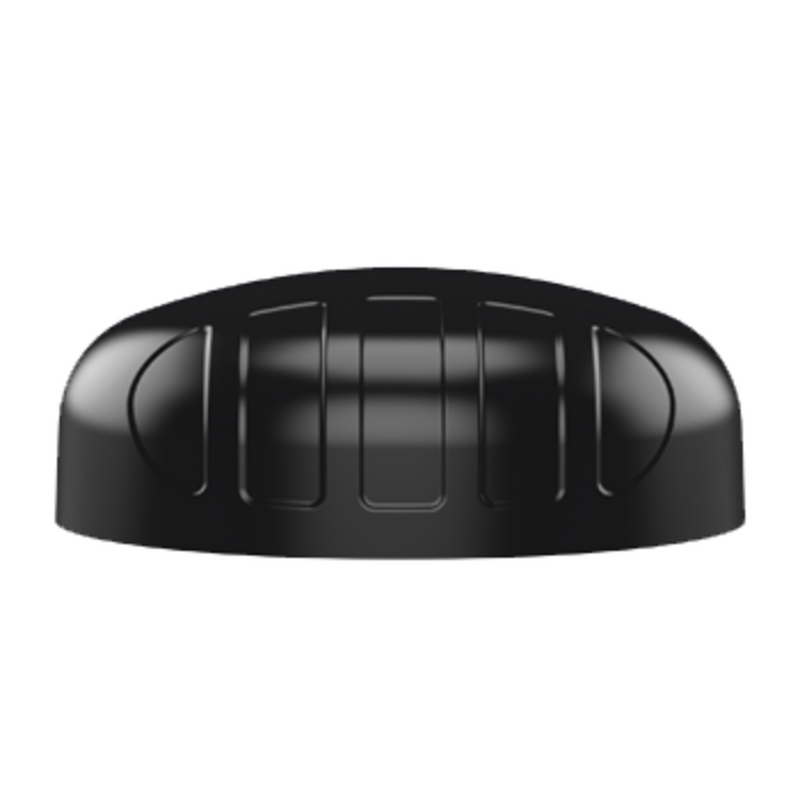

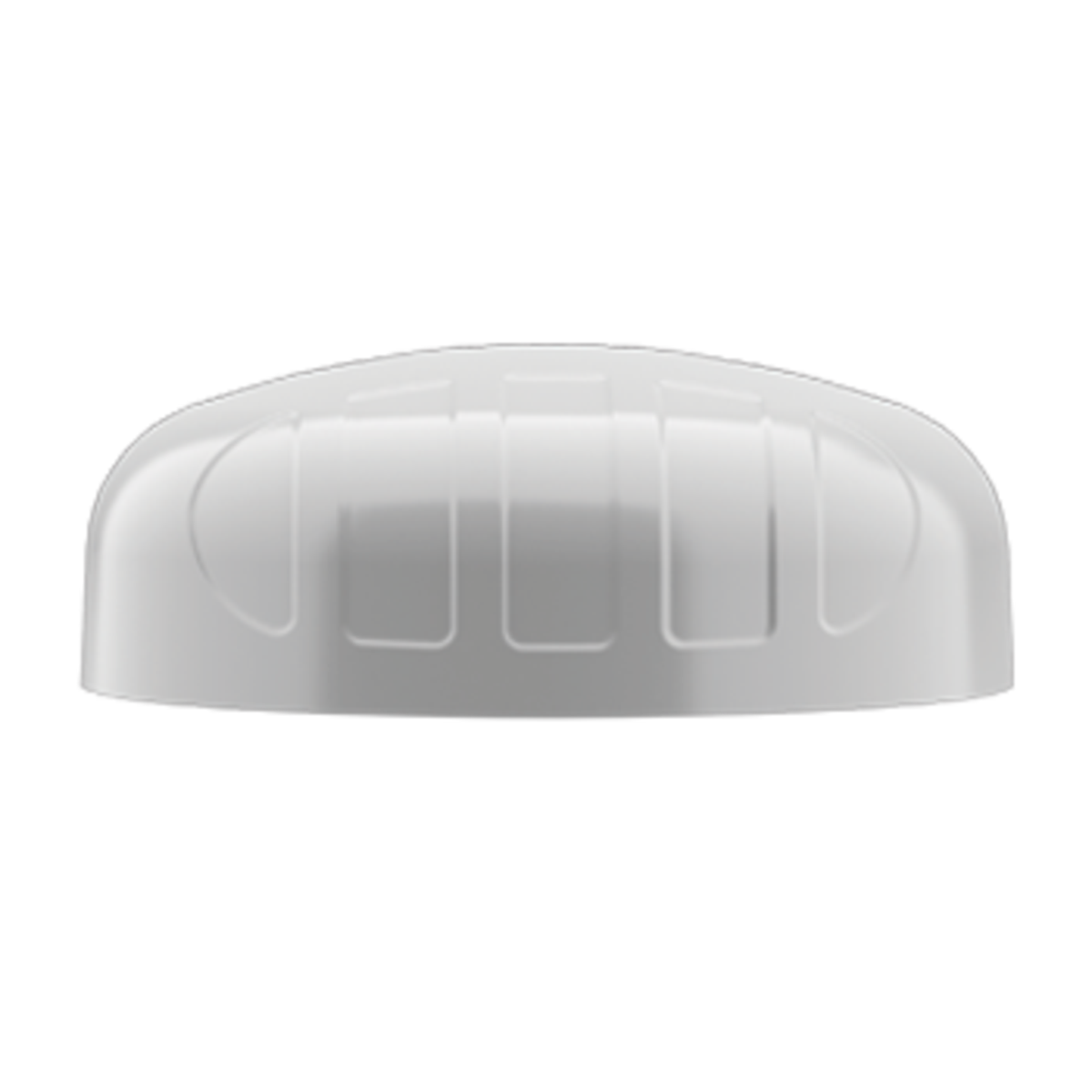

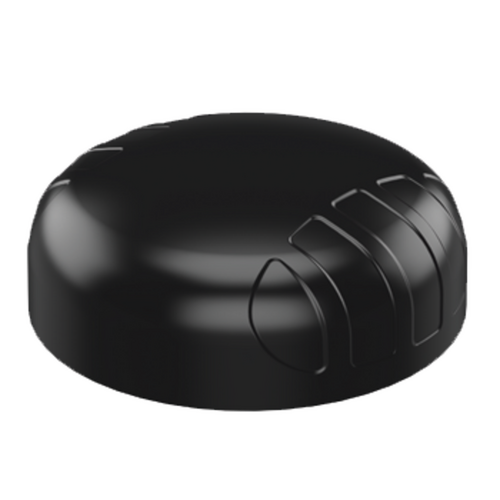

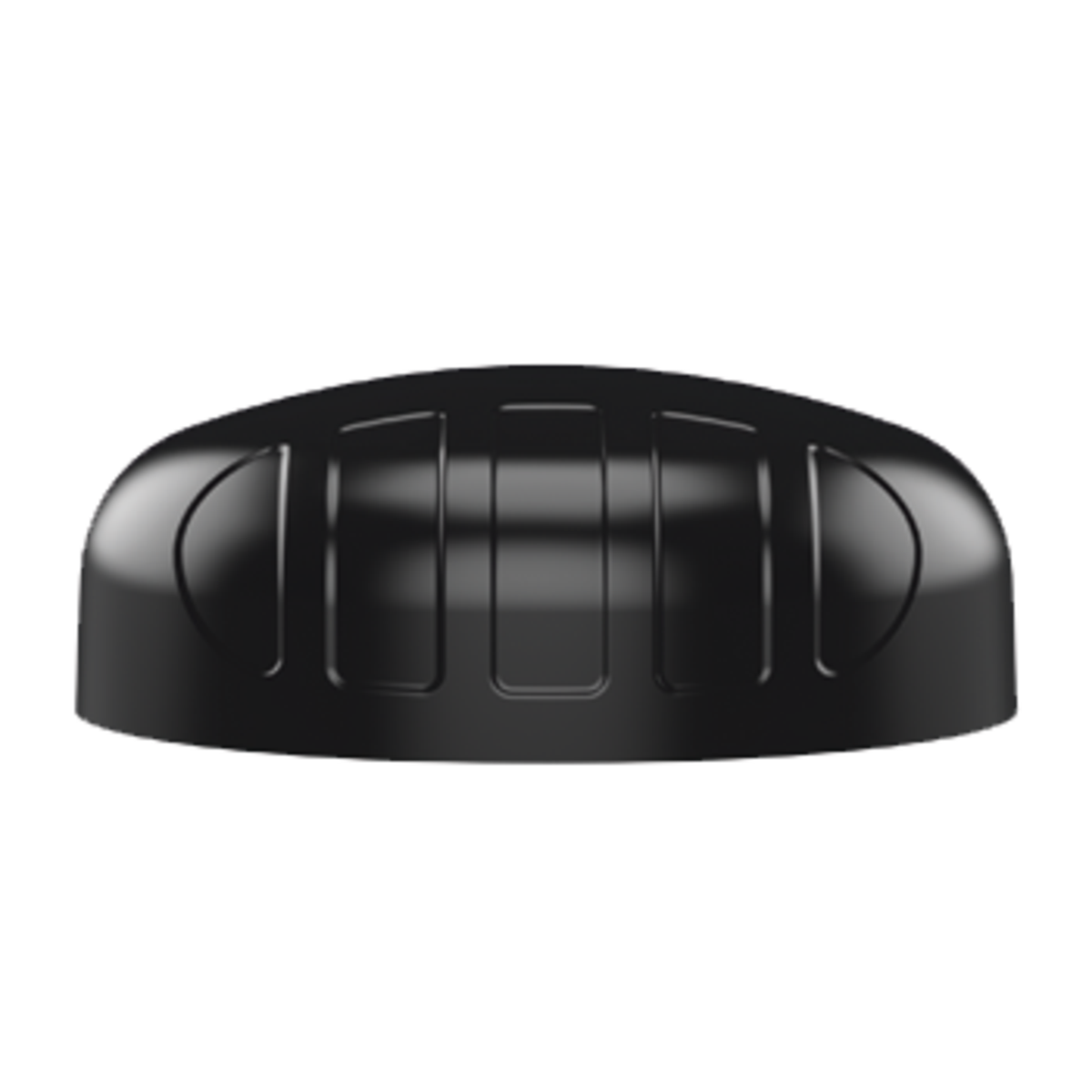

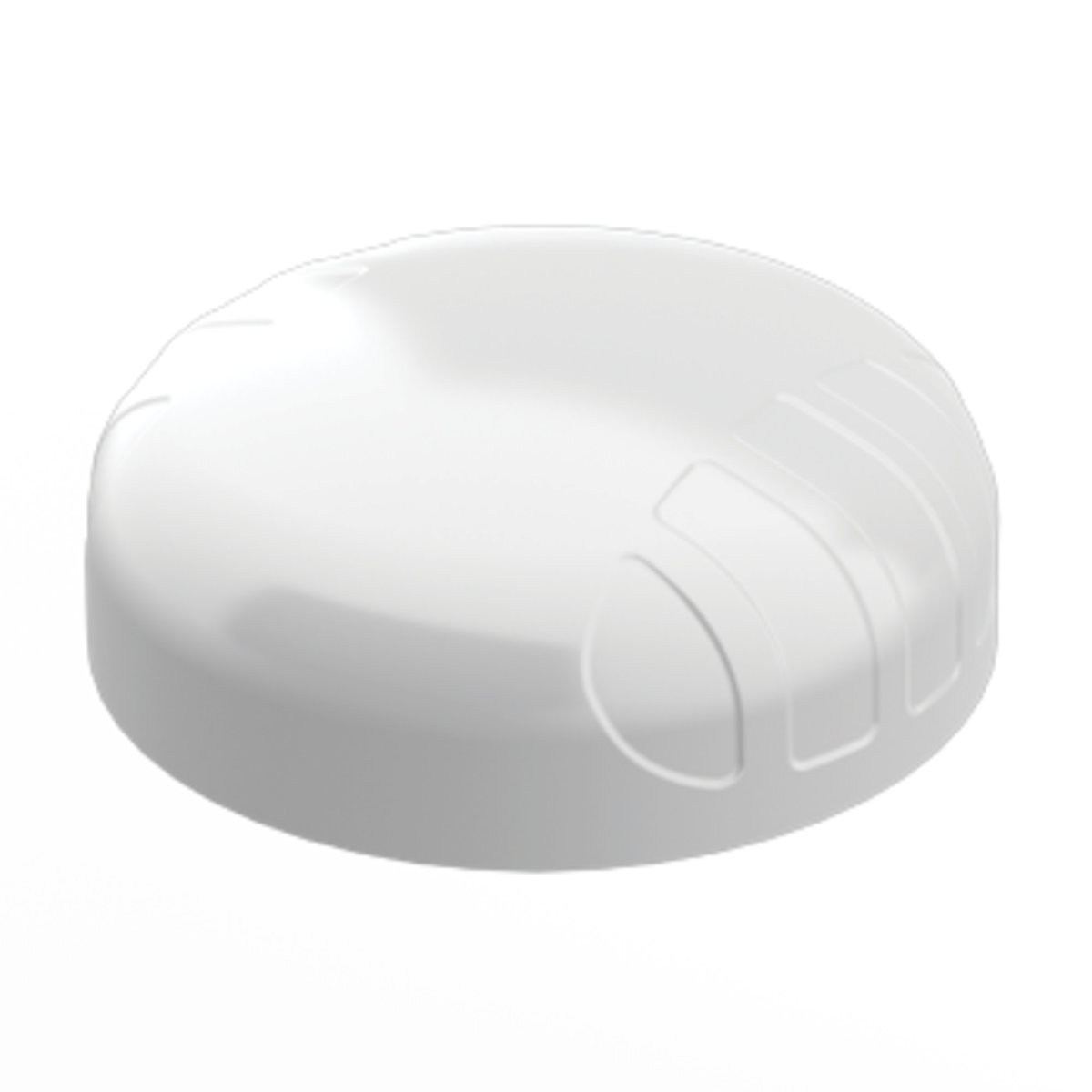

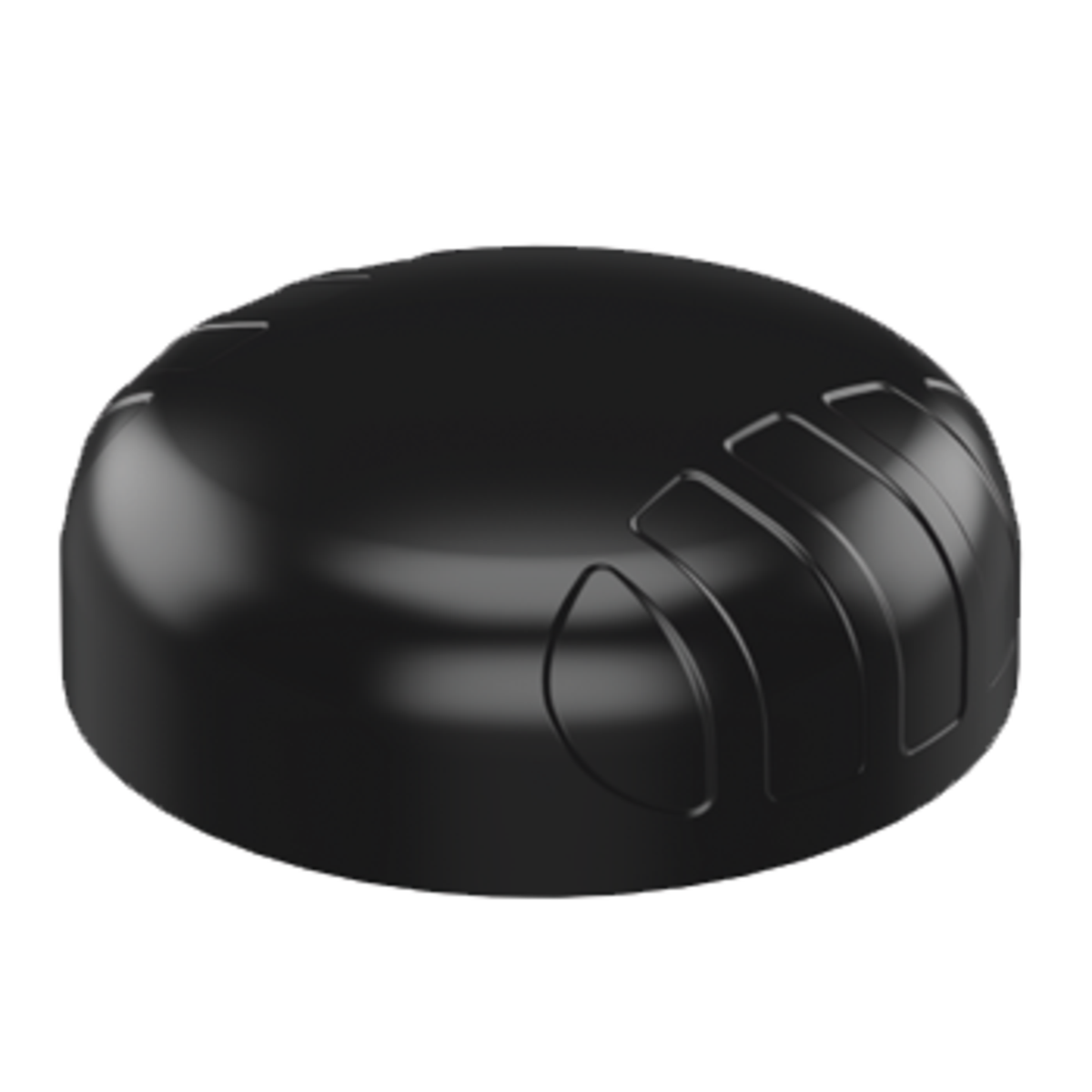

Poynting 5-in-1 5G/LTE 2x2 MIMO, Wi-Fi 2x2 MIMO & GPS Transportation & IoT/M2M Antenna

Key Features

• 5-in-1 LTE high performance multi frequency antenna

• 2G/3G/4G/LTE/5G antenna

• LTE (2X2 MIMO), Dual-band Wi-Fi (2X2 MIMO), GPS/GLONASS

• Wideband – covers wide frequency band, incl. 3.5 GHz CBRS band

• Robust, vandal resistant and waterproof (IP69K)

• Ideal for transportation, marine and IoT/M2M use

• Ultra-versatile mounting options for easy installation

Usage

• Poynting’s new PUCK antenna offers a small profile antenna for use in the IoT/M2M, Smart Meter, Smart Utilities, Transportation, Marine and the Agricultural/Farming markets.

• The PUCK-5 consists of a 5-in-1 antenna system within a single housing, featuring 2X2 MIMO LTE, 2X2 MIMO Wi-Fi (Dual-band 2.4 GHz & 5 GHz) and GPS/GLONASS.

• The 2x Cellular MIMO antennas (for 2G/3G/4G) cover the 617 MHz to 4200 MHz band, this includes the most popular international LTE bands.

• The antenna provides two separate dual-band Wi-Fi antennas offering concurrent 2.4GHz and 5 GHz bands, capable of 802.11n and 802.11ac/ax with 2x2 MIMO.

• The fifth antenna is a high-performance active GPS/GLONASS system operating at temperatures as low as -40ºC.

• The PUCK exceeds the performance of many competitors due to the attention to design of this high-performance antenna.

• The radiation patterns of all radiating elements provide an excellent balance between omnidirectionality, pattern diversity and good radiation abilities at the desired elevation, which is often overlooked in such a small size antenna.

• Despite its small size, this antenna provides excellent performance especially at the higher frequency bands, where performance is critical for LTE throughput and connection stability.

• This antenna is designed so that both the LTE ports are connected to the router/device to ensure the best performance.

Typical Applications

• HD video over LTE

• First responder and emergency services

• Intelligent transport systems

• Internet of Things (IoT market)

• High definition video broadcast systems

• Wireless LTE MIMO M2M devices

• Digital signage.

Network Compatibility	Yes/No	Gain
Telstra 4GX (700MHz)		0Bi
Optus 4G+ (700MHz)		0dBi
Telstra Next-G™ (850MHz)		0dBi
Vodafone 4G+ (850MHz)* *Please check Vodafone Coverage Map		0dBi
Optus Regional 3G (900MHz)		0dBi
Vodafone Regional 3G (900MHz)		0dBi
Telstra/Optus/Voda 4G (1800MHz)		5dBi
All Carriers - Urban/Metro 3G (2100MHz)		5dBi
Telstra 4GX (2600MHz)		5dBi
All Carriers 5G 3500MHZ		6dBi

Read More

• Specification Sheet
