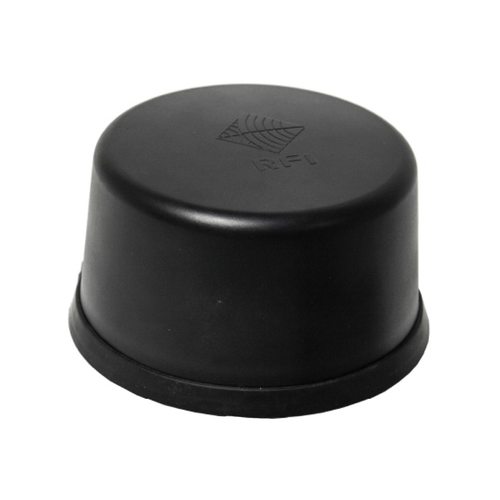

RFI LTE MIMO & GPS Low Profile Antenna - 3 Feeds

(2 x Cellular & 1 x GPS)



Key Features



  • 2 antenna feeds covering: 2 x LTE (698-960/1710-2700 MHz)

  • M16 stud offers ease of installation in the field

  • Ingress protection to IP65

  • 2 x LTE 1.5m cables are terminated with FME(F) connectors



Usage



  • The LMHP-GW-1.5M-FS incorporates 2 antennas in a single, ruggedised low profile housing.

  • Two (MIMO) LTE/4G/3G antennas covering all cellular bands which provides increase data speed.

  • Main applications are for industrial vehicles, M2M and other IoT applications.



Specifications / Frequency



Network Compatibility
Yes/No
Gain
Telstra 4GX (700MHz)
compatible
2dBi
Optus 4G+ (700MHz)
compatible
2dBi
Telstra Next-G™ (850MHz)
compatible
2dBi
Vodafone 4G+ (850MHz)
compatible
2dBi
Optus Regional 3G (900MHz)
compatible
2dBi
Vodafone Regional 3G (900MHz)
compatible
2dBi
Telstra/Optus/Vodafone 4G (1800MHz)
compatible
4dBi
All carriers - Urban/Metro 3G/4G (2100MHz)
compatible
4dBi
802.11 b/g/n WiFi (2400MHz)
compatible
4dBi
Telstra Metro 4GX (2600MHz)
compatible
4dBi
 Metro 4GX (2600MHz) compatible 4dBi


Electrical Specifications



  • Frequency Range: 698-960/1710-2700MHz

  • Input Impedance: 50Ω

  • Power Rating: 10W

  • VSWR: <2.5:1

  • Polarisation: Linear Vertical

  • Radiation: Omnidirectional



Mechanical/Environmental Specifications

  • Construction: Black UV stable ABS

  • Cellular Cable: RG174

  • Connector: FME Female

  • Thermal Shock: -30°C to +80°C

  • Weight: 0.5kg

  • Dimensions: 66 x 110mm (H x Diameter)

  • Mounting: Panel Mount - M16 thread stud & nut (28 long)



Read More

(LMHP-1.5-F)

SKU LMHP-1.5-F
Brand RFI
Shipping Weight 0.4000kg
Shipping Width 0.150m
Shipping Height 0.130m
Shipping Length 0.145m
Shipping Cubic 0.002827500m3
