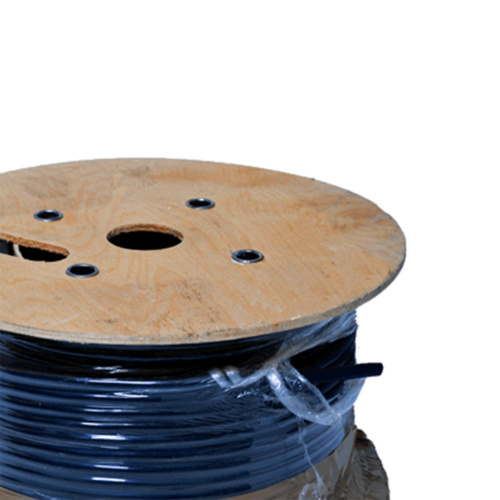

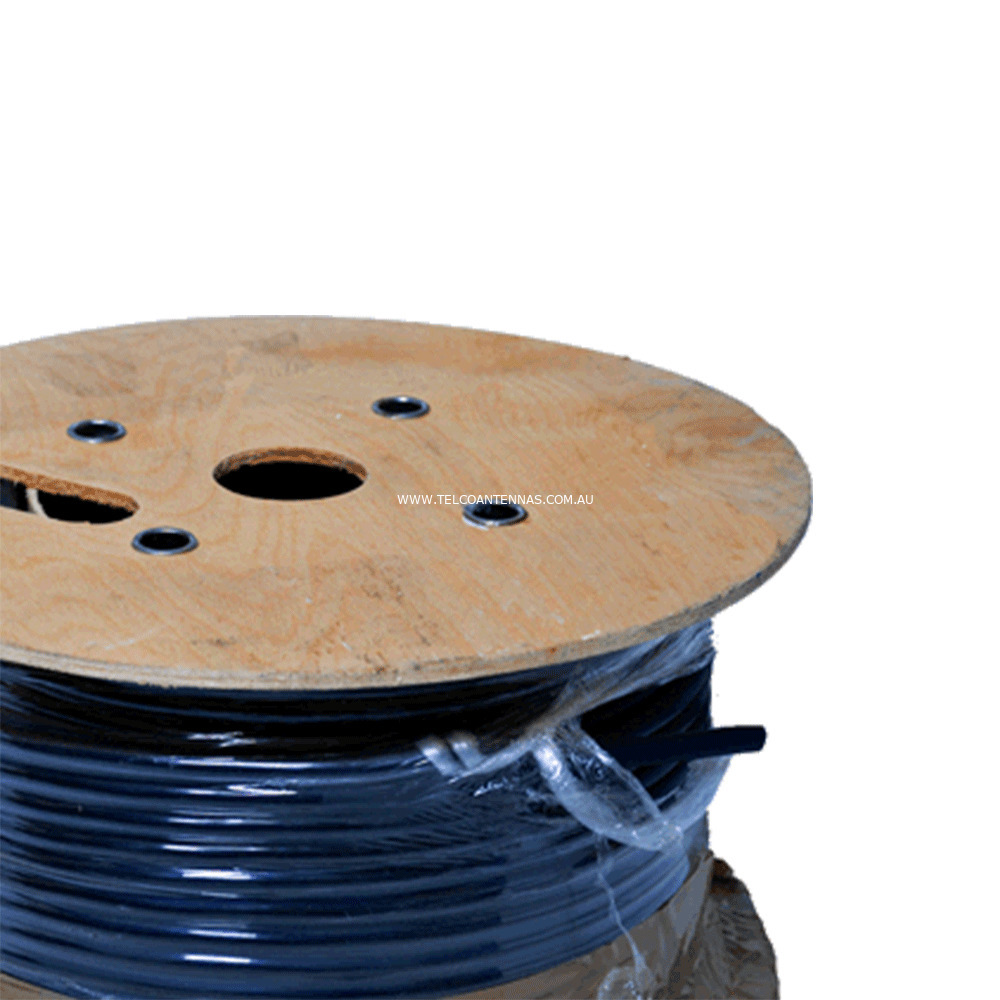

Times Microwave LMR195-FR Fire Retardant Cable 100m Cable Reel



Key Features



  • Direct burial rated

  • High grade low loss antenna cable

  • Buy in bulk and save.



Usage



  • The Times Microwave LMR-195-FR coaxial cable (black) features a non-halogen, low smoke, fire-retardant cable designed for in building applications

  • The LMR-195 cable is MSHA approved for mining operations

  • This low loss 50 Ohm coax cable features a foil shield and 90 percent braided shield

  • The LMR-195 transmission line can be used in almost any application where handling characteristics, improved shield and low loss is required

  • The fire-retardant low loss coax cable has a comparable performance to RG142 cable and uses RG58 connectors

  • The Times Microwave fire-retardant LMR195 low loss coax cable is available in bulk and is priced per foot.



Specifications / Frequency



Electrical Specifications



  • Resistance: 50Ω

  • Capacitance: 83.3pF/m

  • Signal Loss: 0.36dB/m @ 850MHz, 0.53dB/m @ 1800MHz

  • Frequency Range: DC-6GHz

  • Velocity of Propagation: 76%

  • Nominal Delay: 4.17ns/m

  • Voltage Withstand: 1000Volts DC

  • Peak Power: 2.5kW



Mechanical Specifications



  • Weight: 0.03kg/m

  • Operating Temperature: -40° ~ +85°C

  • Minimum Bend Radius: 12.7mm

  • Conductor Material: Solid BC (0.94mm)

  • Insulating Material: Foam PE (2.79mm)

  • Outer Shield Material:

    • (1) Bonded Aluminium Polyester Tape 100% Coverage (2.95mm)

    • (2) Tinned Copper Wire 88% Coverage (3.53mm)

  • Outer Jacket Material: PVC Weather & UV Resistant (4.95mm ±0.15mm)



times microwave logo png

(LMR195-FR)

SKU LMR195-FR
Brand Times Microwave
Shipping Width 0.260m
Shipping Height 0.135m
Shipping Length 0.260m
Shipping Cubic 0.009126000m3
