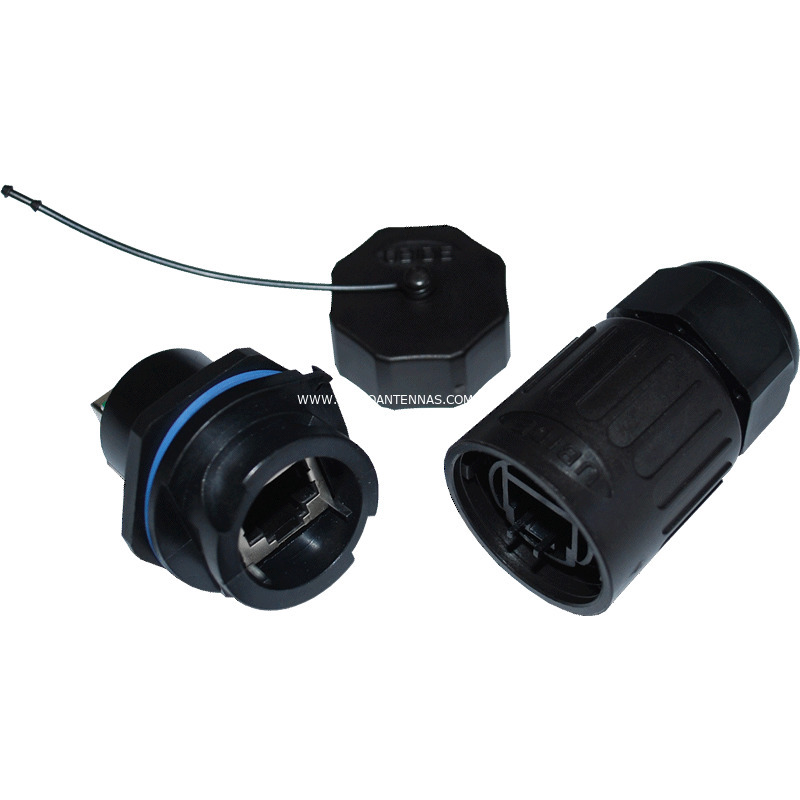

Ethernet Cat6 IP67 Keystone Bulkhead with Cable Housing


Key Features


  • Used for Industrial Ethernet network applications

  • Prevents dust/moisture from entering connection

  • Bayonet style mating ensures tight/secure seal

  • Ideal for harsh environments

  • 10/100/10GigE RJ45 Cat6a certified

  • Supplied with protective cap.




  • High performance engineering plastic, silica gel seal, with zinc-alloy keystone construction

  • This connector is a cost effective solution to protecting Ethernet bulkhead connections in harsh environmental conditions

  • Ideal for mining and industrial applications.




  • Withstand Voltage: 1000 Vdc

  • Insulation Resistance: >500 MΩ

  • Mating Cycles: >500

  • Environmental Protection Level: IP65/IP67

  • Operating Temperature: -40 °C to +80 °C

  • Flammability Rating: UL94-V0



Shipping Width 0.050m
Shipping Height 0.050m
