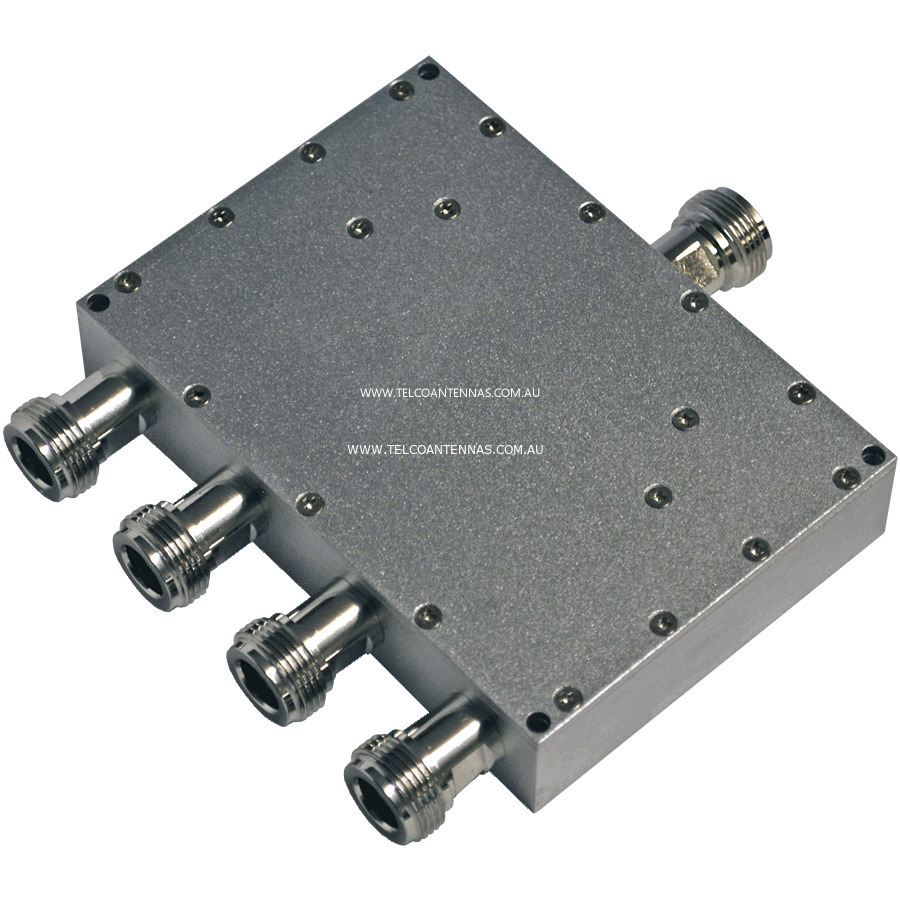

Four-Way RF Power Divider


Key Features


  • N-Type

  • Splitter/Combiner function

  • 4x N Female output.




  • Simultaneously connect two devices to the one antenna by splitting the antenna signal

  • This is a high quality low VSWR, low insertion loss RF power divider

  • When in weak signal strength areas it's important to use a high quality splitter to ensure efficiency losses are kept to a minimum, minimal electrical noise, and output isolation maximised

  • Poorly designed dividers can result in a signal power reduction far greater than 3dB, and signal code power reduced by significantly more.




  • The input signal is equally split into two output signals, each reduced by 3dB (i.e. halved) due to the 1:2 power division

  • A small signal loss of 0.5dB is incurred as no RF device can operate at 100% efficiency

  • When determining whether you can afford to split your signal, keep in mind that the signal will be halved between each device: the question to answer is - is your signal strong enough?

  • In very low signal areas, it's often advisable to use two antennas instead of a splitter.




  • While it is possible to sum two input signals with no loss, this can only be accomplished if the input signals are identical in phase and amplitude

  • When two signals are completely out of phase (180 degrees) the signals will cancel completely, hence the statistical average for two unknown signals is a 3dB combination loss (i.e. reduced by half)

  • Utilising microstrip structure technology, this splitter has exceptional in-band flatness, high isolation, very low insertion loss, excellent standing wave performance and is easy to install

  • Designed for cellular mobile communications and spread spectrum communications in indoor distribution system.


Specifications / Frequency


Electrical Specifications


  • Frequency: 700-2700MHz

  • Insertion loss: <6.8dB

  • Isolation: >20dB

  • Nominal Impedance: 50Ω

  • VSWR: <1.3:1

  • Phase Balance: ±4°

  • Amplitude Balance: <0.3dB

  • Max. Power: 20Watts

  • Connectors: N Female


Mechanical Characteristics


  • Construction: Sandblasted aluminium block, conductive oxide finish

  • Operating temperature: -30 +70°C

  • Relative humidity: 5~95%

  • Dimensions: 109 x 100 x 20mm

  • Weight: 325g
