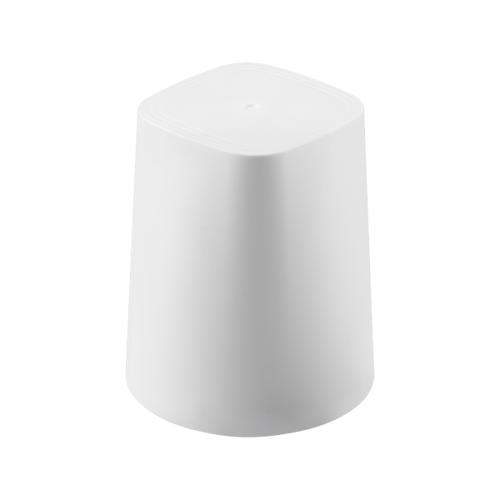

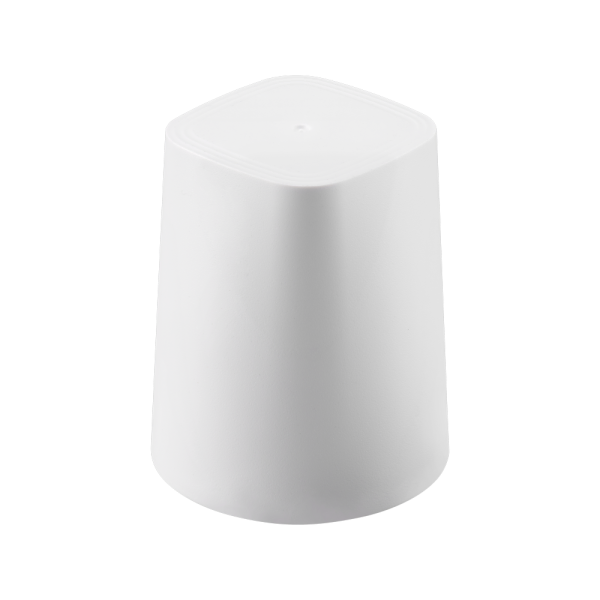

Taoglas Olympian III 3-in-1 – 5G/4G MiMo & GNSS Screw Mount Antenna

Key Features

• Low-profile Housing Screw Mount

• 2x 5G/4G MIMO 600-6000MHz

• 1x GNSS (GPS/GLONASS/Galileo)

• Worldwide 5G Bands including legacy 4G 3G and 2G bands

• IP67 Waterproof Enclosure

• Dimensions: Ø59.45 x 70mm

• IK08 Impact Rating

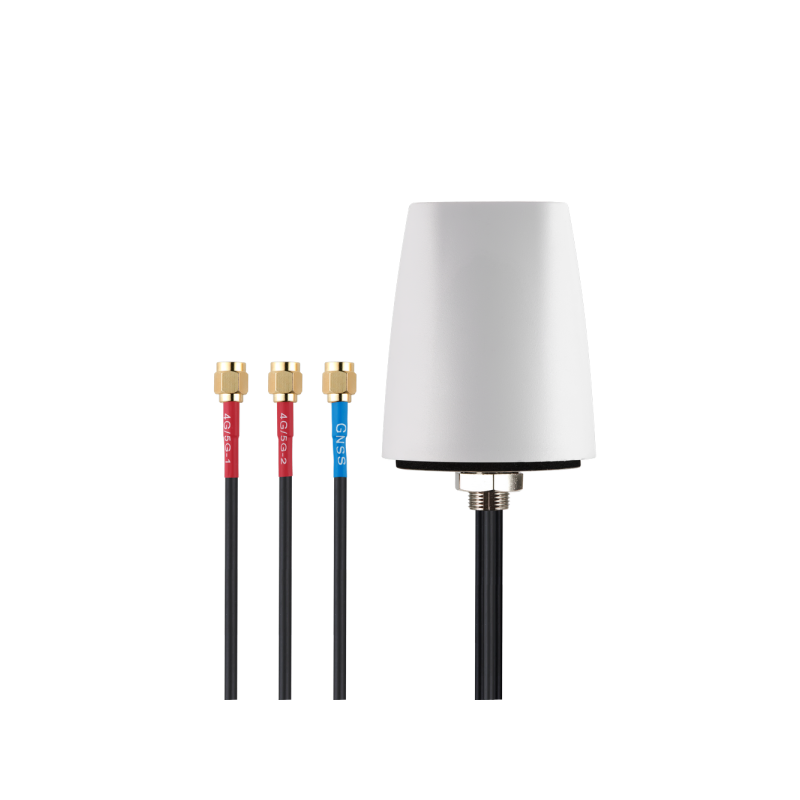

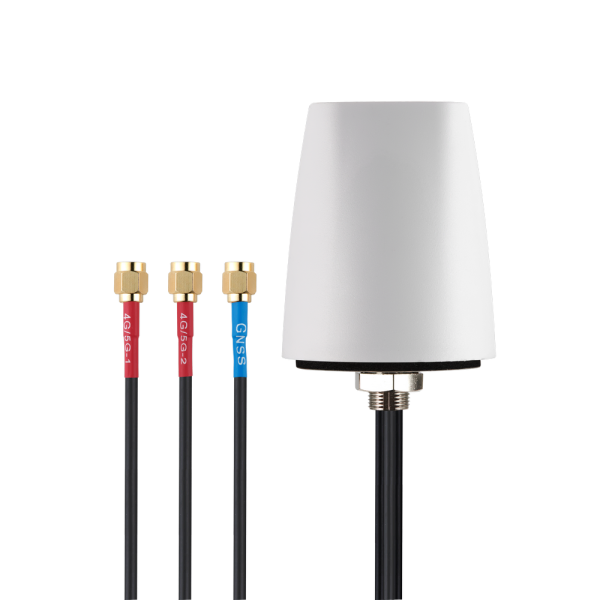

• 1m TGC-1.5DS/RG-174 cable with SMA(M) and RP-SMA(M) connectors

• Custom Cables and Connectors Available

• RoHS and REACH Compliant

Usage

• The Taoglas Olympian III, MA181 is a high-performance 3-in-1 GNSS, 4G/5G MIMO permanent mount antenna, featuring a compact design with a height of 70mm and a diameter of 59mm. It is particularly suited for external applications on vehicles and outdoor assets that require GNSS and Cellular MIMO connectivity.

• This GPS/GLONASS/Galileo antenna provides stable gain and radiation patterns across all bands. The 4G/5G antenna supports all global LTE bands, encompassing numerous sub 6GHz and 5G FR1 bands, while also offering fallback to 3G/2G bands when necessary. The design has been enhanced to minimize cable radiation, ensuring that the antenna remains unaffected when installed on a metal enclosure. Consequently, the MA181 antenna can be effectively mounted on both metal and plastic structures. Taoglas recommends using a minimum cable length of 1 meter to ensure optimal antenna performance.

• The enclosure is rated IP67 and constructed from robust ASA material, providing resistance to vandalism. An integrated rubber O-ring beneath the enclosure prevents water ingress beneath the antenna. It is installed from within the user device enclosure, and the compact thread design facilitates installation in tight spaces. Typical applications include: - Smart Metering and Remote Monitoring - Digital Signage - Transportation and Telematics

Specifications

Electrical Specifications

• Polarity    Linear

• Impedance    50

• Frequency Range    600 - 6000 MHz

• Connector Polarity    Normal

• VSWR    <2

• Gain (Max)    31.3

• RoHS    Yes

Mechanical/Environmental Specifications

• IP Rating    IP67

• Minimum Operating Temperature (℃)    -40

• Maximum Operating Temperature (℃)    85

• Mounting Style    Screw

• Termination Style    Connector Mount

• Cable Type    RG-174

• Cable Length (mm)    1000

• Connector Type    SMA

• Connector Body Style    Straight

• Length (mm)    59.45

• Width (mm)    59.45

• Height (mm)    70

• Weight (g)    70
