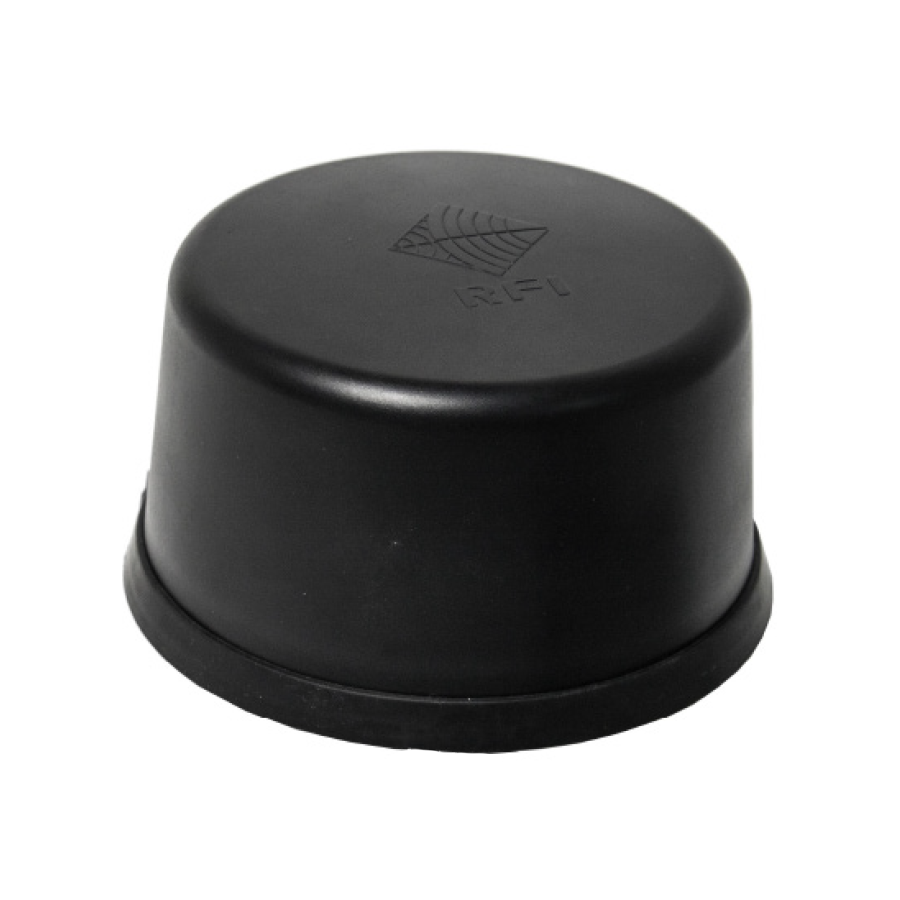

RFI LTE MIMO & GPS Low Profile Antenna - 5 Feeds

(2 x Cellular, 2 x WiFi & 1 x GPS)



Key Features



  • Suitable for 3G and 4G Networks

  • Supports 2.4 & 5GHz WiFi Networks

  • Active GPS

  • Extremely low profile 70mm height

  • IP65 Rated

  • M16 stud offers ease of installation in the field



Usage



  • The LMHP-GW-1.5M-FS incorporates 5 antennas in a single - ruggedised low profile housing.

  • The LMHP-GW-1.5M-FS antenna is a heavy-duty, fully IP65 waterproof external M2M antenna for use in telematics, transportation and remote monitoring applications

  • The LMHP-GW-1.5M-FS  is unique in the market because it combines a 5-in-1 GPS/GLONASS, MiMo WiFi (2.4/5GHz) & MiMo Cellular (2G, 3G, & 4G) elements inside a single heavy-duty antenna radome with high efficiency in a compact format

  • For industries such as commercial vehicle telematics, remote monitoring, smart meter systems and construction equipment, the LMHP-GW-1.5M-FS provides a robust, antenna that is durable, even in extreme environments



Specifications / Frequency



Network Compatibility
Yes/No
Gain
Telstra 4GX (700MHz)
compatible
2dBi
Optus 4G+ (700MHz)
compatible
2dBi
Telstra Next-G™ (850MHz)
compatible
2dBi
Vodafone 4G+ (850MHz)
compatible
2dBi
Optus Regional 3G (900MHz)
compatible
2dBi
Vodafone Regional 3G (900MHz)
compatible
2dBi
Telstra/Optus/Vodafone 4G (1800MHz)
compatible
4dBi
All carriers - Urban/Metro 3G/4G (2100MHz)
compatible
4dBi
802.11 b/g/n WiFi (2400MHz)
compatible
5.5dBi
Telstra Metro 4GX (2600MHz)
compatible
4dBi
 Metro 4GX (2600MHz) compatible 4dBi
802.11 n/ac WiFi (5800MHz) compatible 5.5dBi


Electrical Specifications



  • Cellular Frequency Range: 698-960/1710-2700MHz

  • WiFi Frequency Range: 2.4-2.5/5.7-5.8GHz

  • GPS: 1575.42 MHz

  • Input Impedance: 50Ω

  • Power Rating: 10W

  • Cellular VSWR: <2.5:1

  • WiFi VSWR: <2.0:1

  • Polarisation: Vertical

  • Radiation: Omnidirectional



Mechanical/Environmental Specifications



  • Construction: Black UV stable ABS

  • Cellular Cable: RG174

  • Connector: FME Female

  • GPS Cable: RG174

  • Connector: SMA Male

  • WiFi Cable: RG174

  • Connector: SMA Male

  • Thermal Shock: -30°C to +80°C

  • Weight: 0.5kg

  • Dimensions: 66 x 110mm (H x Diameter)

  • Mounting: Panel Mount - M16 thread stud & nut (28 long)



Read More

(LMHP-GW-1.5M-FS)

SKU LMHP-GW-1.5M-FS
Brand RFI
Shipping Weight 0.5000kg
Shipping Width 0.150m
Shipping Height 0.130m
Shipping Length 0.145m
Shipping Cubic 0.002827500m3
