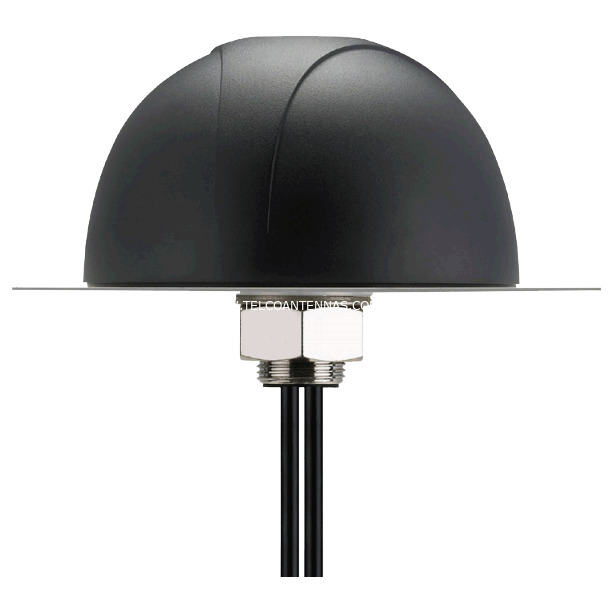

Taoglas MA.750 Pantheon Heavy Duty M2M 5-in-1 Combination Antenna

Key Features

• 5-in-1 combination (5x cables)

• Covers all cellular bands

• 2.4 & 5.8GHz dual band WiFi

• MIMO on both cellular and WiFi bands

• Active GPS

• Low profile 86mm height

• IP67, vandal resistant design

• Ground plane dependent.

Usage

• The MA.750 Pantheon LTE MIMO 2X2 antenna is an omnidirectional heavy-duty, fully IP67 waterproof external M2M antenna for use in telematics, transportation and remote monitoring applications

• This unique antenna delivers powerful MIMO antenna technology for cellular/LTE and Wi-Fi 802.11n and emerging 802.11ac, plus GPS/GLONASS for next generation multiple wireless technology systems, such as telematics

• The GPS/GLONASS antenna has a Front End SAW Filter. Examples are new fleet management and real time video applications that demand high speed video uplink and downlink

• High efficiency and high gain MIMO antennas are necessary to achieve the required signal to noise ratio and throughput required to solve these challenges.

Specifications / Frequency

Network Compatibility	Yes/No	Gain
Telstra 4GX (700MHz)		2.45 dBi
Optus 4G+ (700MHz)		2.45 dBi
Telstra Next-G™ (850MHz)		2.35 dBi
Vodafone 4G+ (850MHz)		2.35 dBi
Optus Regional 3G (900MHz)		1.10 dBi
Vodafone Regional 3G (900MHz)		1.10 dBi
Telstra/Optus/Voda 4G (1800MHz)		2.01 dBi
All Carriers - Urban/Metro 3G (2100MHz)		1.64 dBi
Optus 4G TDD (2300MHz)		2.46 dBi
802.11 b/g/n/ac WiFi (2400MHz)		2.46 dBi
Telstra 4GX (2600MHz)		0.36 dBi
802.11 n/ac WiFi (5800MHz)		3.61 dBi

Electrical Specifications

• Frequency Range: 698-960 / 1575.42/ 1602 / 1710-2170 /2300-2700 / 5150-5850MHz

• Input Impedance: 50Ω

• VSWR: <3.0:1

• Vertical Beamwidth: See Specifications Sheet

• Radiation: Omnidirectional

• Maximum Power: 10Watts

Mechanical/Environmental Specifications

• Construction: Black Wonderloy PC/ABS Alloy radome, Nickel plated steel nut, CAN10 Zinc Alloy Base & Thread

• Cable: 4x 3m CFD200, 1x 3m RG174 (GPS)

• Connector: 3x SMA Male, 2x RP-SMA (WiFi)

• Operating Temperature: -40°C to +85°C

• Weight: 1.29kg

• Dimensions: 85.7 x 145.6mm (H x Dia)

• Mounting: 30mm M30 thread stud
