Panorama  LG-IN2457 Heavy Duty M2M 5-in-1 Combination Antenna



Key Features



  • 5-in-1 combination (5x cables)

  • Covers all cellular bands

  • 2.4 & 5.8GHz dual band WiFi

  • MIMO on both cellular and WiFi bands

  • Active GPS

  • Low profile 80mm height

  • IP69, vandal resistant design

  • Ground plane dependent.



Usage



  • The LG-IN2457 range has been designed to provide 2x2 4G/5G MiMo performance from 617-960/1710-6000MHz in a robust low profile package.

  • The flexible platform allows the main elements to be combined with a number of other functions including GPS/GNSS and 2x2 MiMo WiFi 2.4/5.0GHz.

  • The antenna is designed to be panel mounted and can be fitted on a conductive or non- conductive panel.
    Supplied with integrated flame retardant RG174 cables (Compliant to UNECE 118.01 and EN45545-2) and a halogen free flame retardant radome the antenna is suitable for many environments and applications.

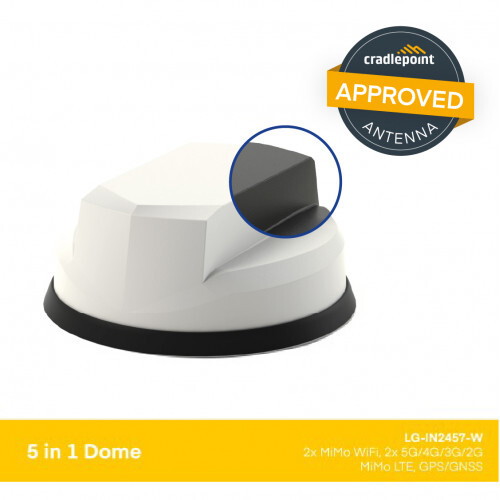

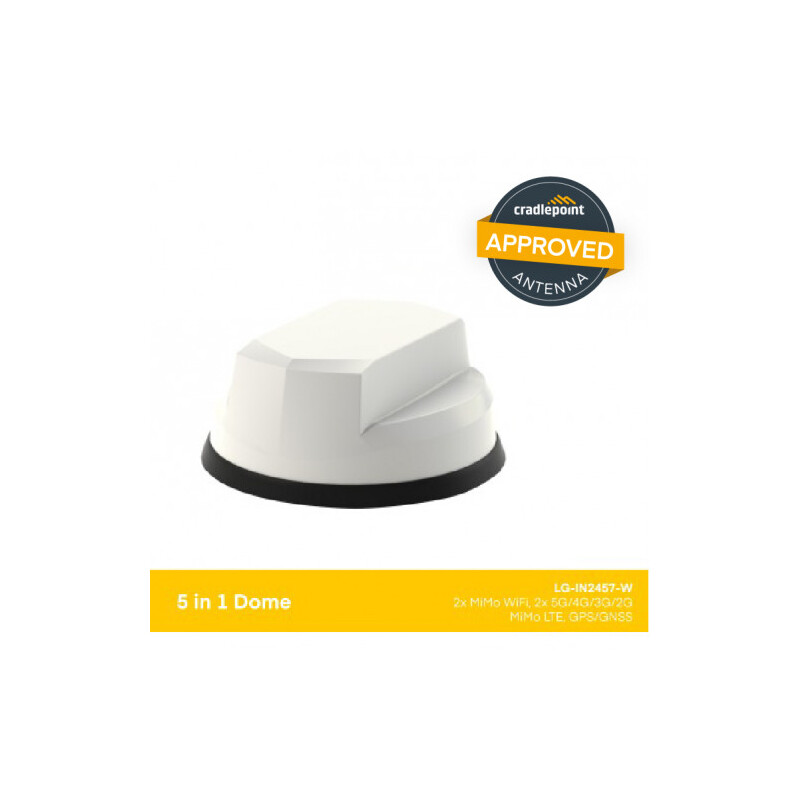

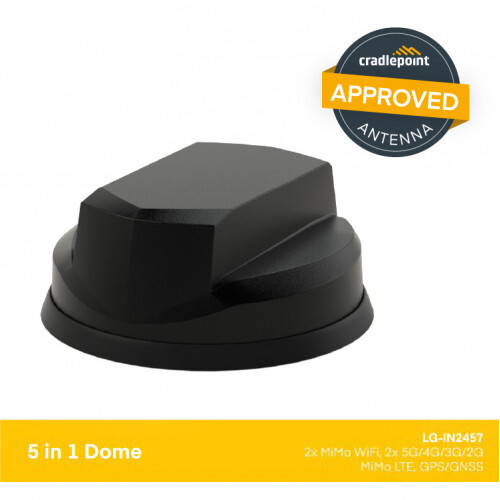

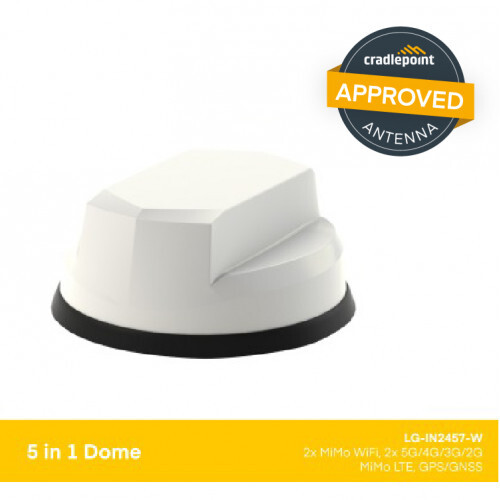

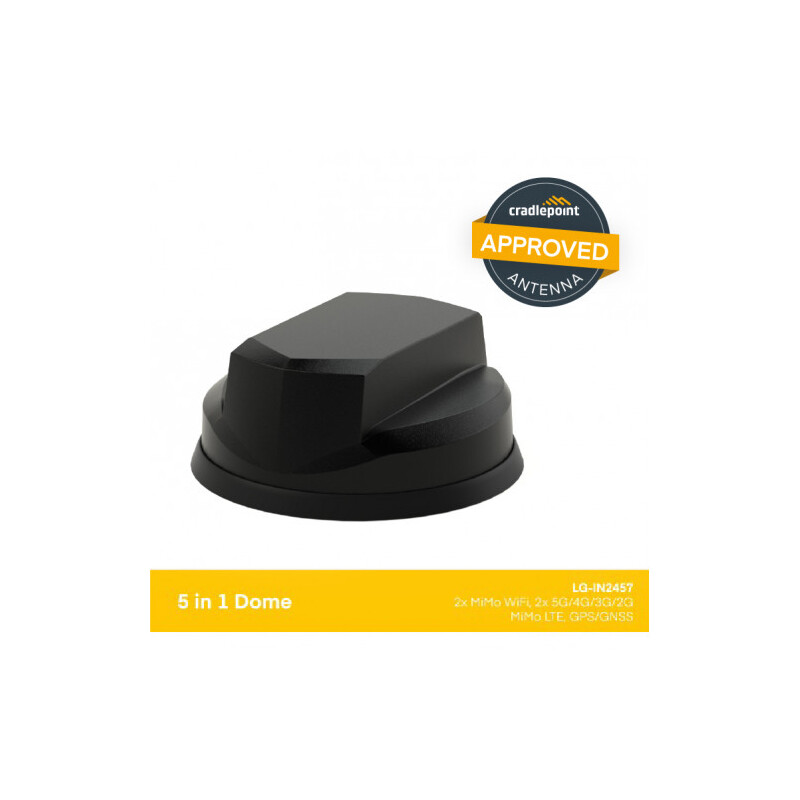

  • The antenna is available with a black or white radome which meets IK10 for vandal resistance and IP69K for ingress protection.



Specifications / Frequency

Electrical Specifications

  • Frequency Range 4G Elements:  698-960 / 1710-6000MHz

  • Frequency Range WiFi Elements: 2.4-2.5GHZ & 4.9-6GHz

  • Frequency Range GPS/GNSS Elements: 1562-1612MHz

  • Input Impedance: 50Ω

  • VSWR: <3.0:1

  • Vertical Beamwidth: See Specifications Sheet

  • Radiation: Omnidirectional

  • Maximum Power: 10Watts



Mechanical/Environmental Specifications

  • Construction: Lexan EXL9330 PC

  • Cable: 5m CS29 / CS32

  • Connector: 3x SMA Male, 2x RP-SMA (WiFi)

  • Operating Temperature: -40°C to +80°C

  • Weight: kg

  • Dimensions: 75 x 185mm (H x Dia)

  • Mounting: Panel Mount - 19mm Hole Required
