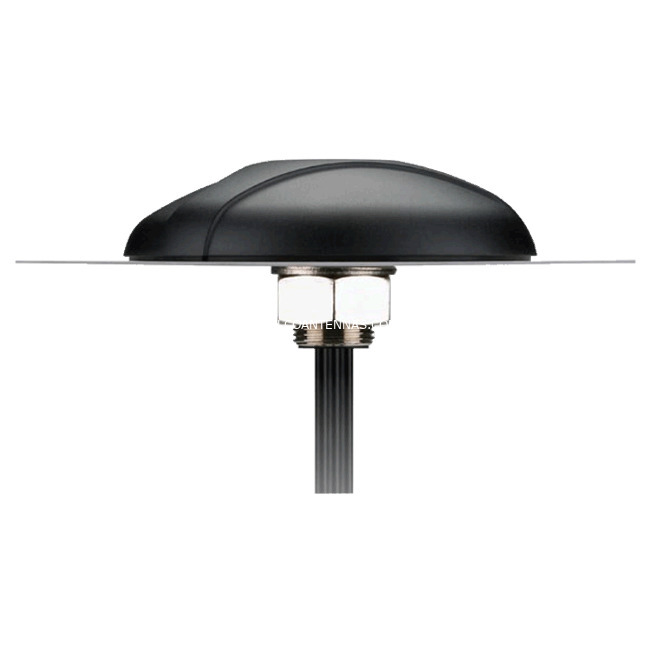

Taoglas Spartan MA.673 - Heavy Duty Dual-Band 2.4GHz + 5GHz Antenna


Key Features


  • Spartan Antenna 3-in-1 Low Profile Screw-Mount

  • 3X3 MIMO 2.4 & 5GHz antenna

  • Omni-Directional Antenna

  • 2 x vertically polarised elements

  • 1 x horizontally polarised element

  • 3M CFD-200 RP-SMA(M)

  • IP67 Waterproof.




  • The Spartan MA673 2.4 / 4.9-5.8GHz 3*MIMO antenna is a low profile, heavy-duty, fully IP67 waterproof external antenna for use in 802.11ac high data throughput and video broadcast applications

  • The Spartan is unique in the market because it combines three 2.4 / 4.9-5.8GHz antenna elements in a heavy-duty antenna with high efficiency in a low profile and high quality aesthetic styled housing

  • The antenna screws down permanently onto a roof or metal panel and can be pole or wall-mounted

  • Care has been taken to optimise the isolation at more than 20dB from any one antenna to the other, and radiation patterns are distinct allowing for greater de-correlation, vital factors for optimisation of MIMO system efficiency

  • For industries such as remote monitoring, smart meter systems, construction equipment, public safety at only 40mm high, the Spartan provides an unobtrusive, robust, rugged antenna that is durable even in extreme environments

  • This specification shows the true performance including 3 meters of cable loss

  • If cable is shorter antenna performance will increase even greater.


Specifications / Frequency


Network Compatibility
802.11 b/g/n/ac WiFi (2400MHz)
802.11 a/n/ac WiFi (5800MHz)
3dBi (avg)
UNII-1 5.15GHz - 5.25GHz
UNII-2 5.25GHz - 5.35GHz
UNII-2e 5.47GHz - 5.725GHz
UNII-3 5.725GHz - 5.85GHz


Electrical Specifications


  • Frequency Range: 2400-2500MHz / 4900-5850MHz

  • Input Impedance: 50Ω

  • Radiation: Omnidirectional

  • Polarization: Linear

  • Power: 5Watts


Mechanical/Environmental Specifications


  • Construction: PC-540, CAN10 Zinc Alloy, Nickel Plated Steel

  • Waterproof: IP67

  • Cable: 3x 3m CDF-200 Low Loss Coaxial Cable

  • Connector: 3x RP-SMA Male

  • Operation Temperature: -30°C to +85°C

  • Antenna dimensions: 65.35mm

  • Height x 147.5mm

  • Diameter Weight: 0.908kg


Read More



taoglas logo


SKU MA673.A.CGH.004
Brand Taoglas
Shipping Weight 0.0450kg
Shipping Width 0.150m
Shipping Height 0.130m
Shipping Length 0.200m
Shipping Cubic 0.003900000m3
