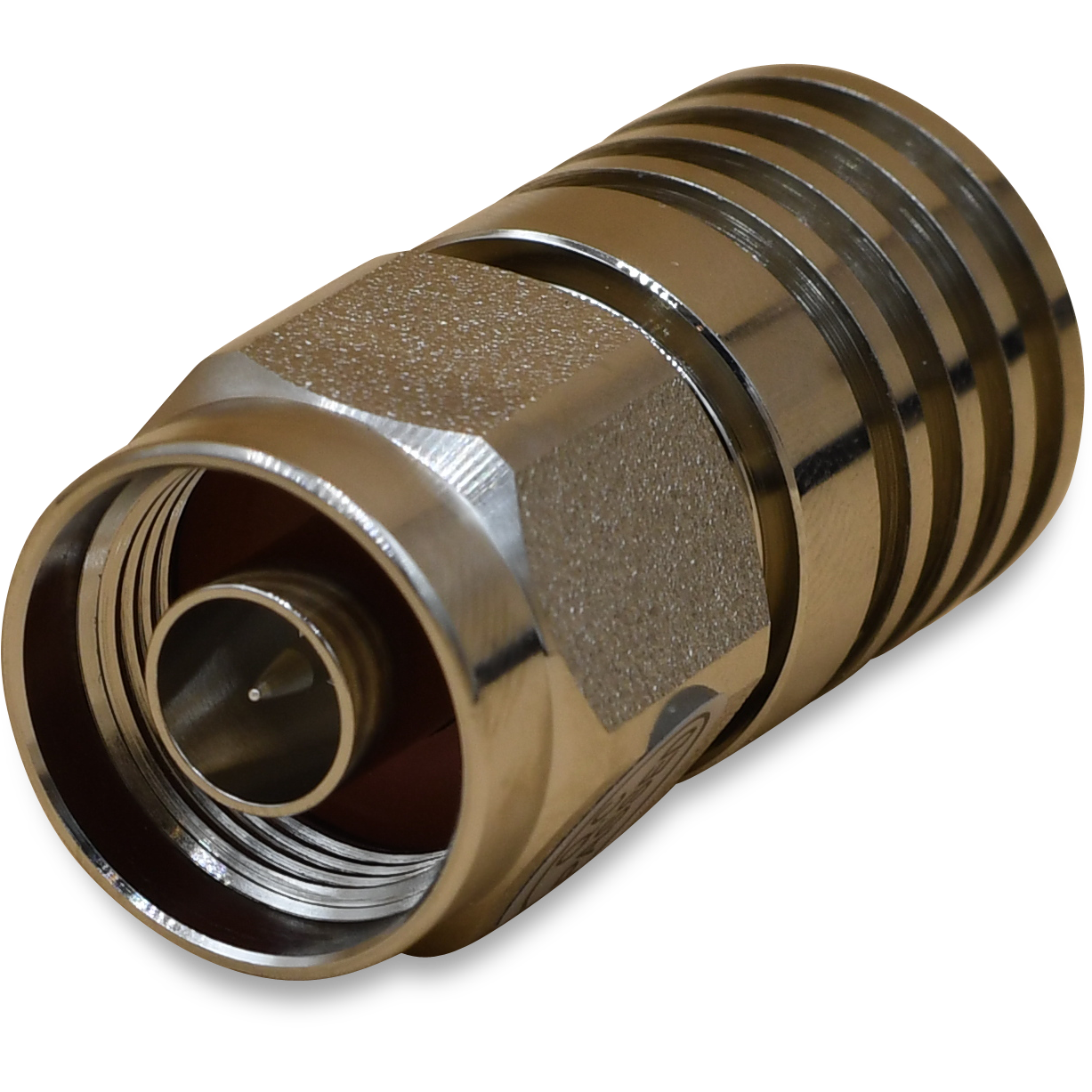

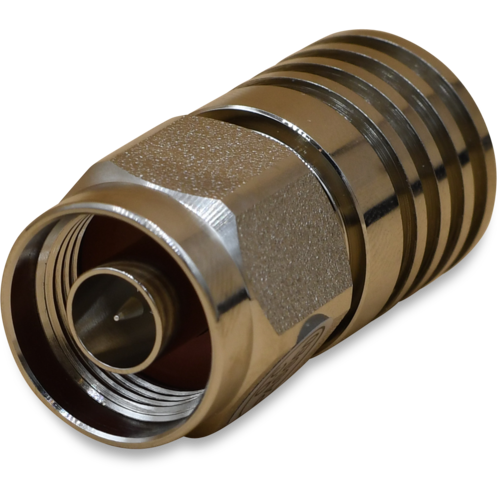

Telco N Male 1W Dummy Load Terminator



Key Features

  • Suitable for Cellular DAS & Repeater Installations

  • Excellent VSWR and superior RF performance characteristics for equipment operating DC to 6GHz

  • Low Pass Intermodulation

  • N Male Connector



Usage

  • Terminators (also called RF Loads or Dummy Loads) are applied to an open end of a Transmission Line e.g., an RF Port, to prevent the back-reflection of an RF Signal.

  • They are typically used in applications such as on the input of preamplifiers, test equipment, or as part of systems designs (such as bi-directional amplifiers) to prevent overload, control gain or to otherwise maintain signals levels within desired limits

  • They use microwave grade, thin film, pyrolytic carbon resistors that exhibit excellent power handling capability and temperature cycling characteristics, as well as low noise and low temperature coefficients.



Read More



(DL-1-NM)

SKU DL-1-NM
Shipping Weight 0.0450kg
Shipping Width 0.050m
Shipping Height 0.050m
Shipping Length 0.060m
Shipping Cubic 0.000150000m3
