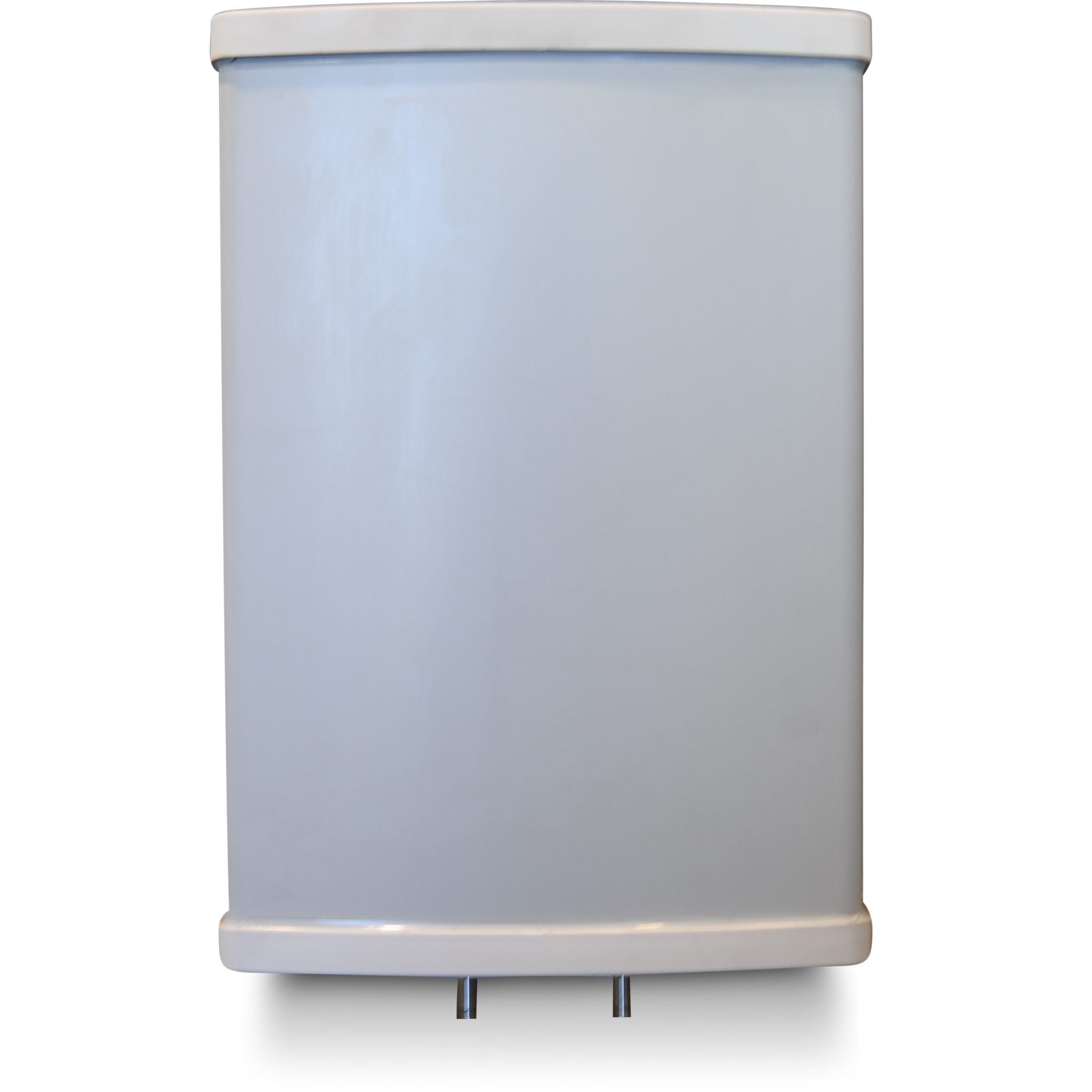

Telco XPOL 2X2 MIMO Panel Antenna



Key Features

  • Dual-polarised antenna feed with high isolation

  • Industrial grade weatherproof PVC radome

  • High gain, high F/B ratio

  • Your choice of connectors - N Female or 4.3-10 Female

  • Carrier aggregation ready

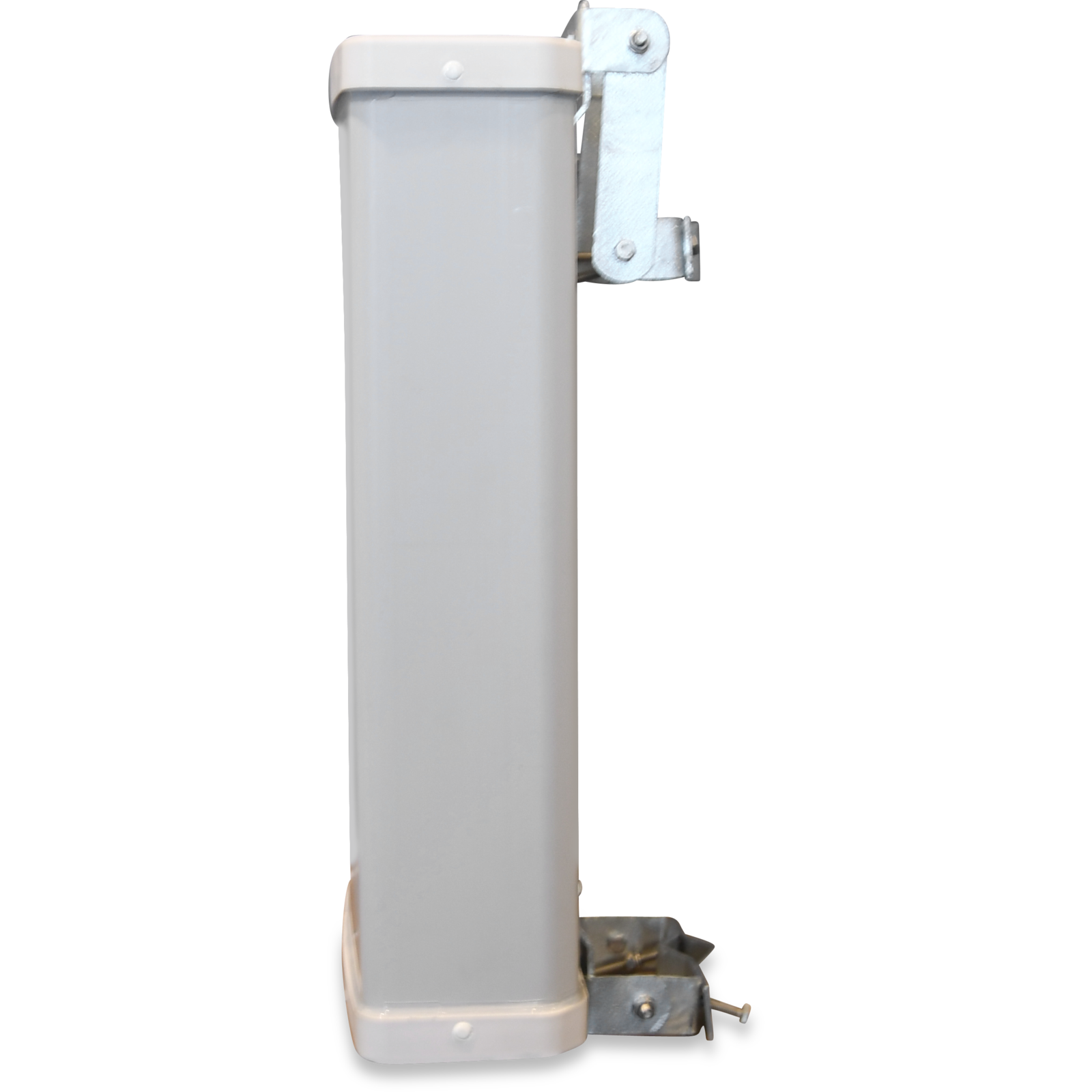

  • Stainless steel mounting bracket

  • Ideal for LTE small cell deployments

  • Wide spectrum design, suits all current and planned networks (including 5G 3600MHz).



Usage



  • This heavy duty wideband panel antenna sports an extremely wideband design - operating on three bands 698-960 MHz, 1710-2700 MHz & 3400-3800 MHz

  • As the highest grade multiband panel antenna on the market, this antenna has an incredibly low VSWR and <-150 dBc PIM, making it the ideal antenna for commercial and industrial 4G applications, and suitable for broadcast and carrier applications

  • This is one of the few antennas on the market capable of covering the entirety of the Australian Mobile Frequencies, no matter the Carrier or technology used

  • This incredibly high performance antenna, is highly recommended for most suburban, metro, and semi-rural applications

  • With this high performance carrier-aggregating antenna, you can take full advantage of the blistering speed your 4G network offers - regardless of frequency



Specifications / Frequency



Network Compatibility
Yes/No
Gain
Telstra 4GX (700 MHz)
compatible
8 dBi
Optus 4G+ (700 MHz)
compatible
8 dBi
Telstra Next-G™ (850 MHz)
compatible
8 dBi
Vodafone 4G+ (850 MHz)* *Please check Vodafone Coverage Map
compatible
8 dBi
Optus Regional 3G (900 MHz)
compatible
8 dBi
Vodafone Regional 3G (900 MHz)
compatible
8 dBi
Telstra/Optus/Voda 4G (1800 MHz)
compatible
8.5 dBi
All Carriers - Urban/Metro 3G (2100 MHz)
compatible
8.5 dBi
Optus/Vivid Wireless 4G (2300 MHz)
compatible
8.5 dBi
802.11 b/g/n/ac WiFi (2400 MHz)
compatible
8.5 dBi
Telstra 4GX (2600 MHz)
compatible
8.5 dBi
Optus 4G (2600MHz) compatible 8.5 dBi
All Carriers 5G (3.5GHz) compatible 5 dBi



Electrical Specifications



  • Frequency Range: 698 to 960 MHz / 1710 to 2700 MHz / 3400 to 3800 MHz

  • Input Impedance: 50Ω

  • VSWR: <2:1

  • Polarisation: ±45° (XPOL)

  • Horisontal Beamwidth: 65° (± 10°) / 60° (± 10°) / 55° (± 10°)

  • Vertical Beamwidth: 65° (± 10°) / 60° (± 10°) / 55° (± 10°)

  • Front to Back Ratio: >20 dB

  • Cross Polarization Ratio: >20 dB

  • Radiation: Directional

  • Maximum Power: 100 Watts



Mechanical/Environmental Specifications

  • Construction: PVC Radome, 304 Stainless Steel Tilt Bracket

  • Cable: none

  • Input Connector: 2x Integrated N-Type Female White Bronze

  • Wind Rating: 198 km/hr

  • Temperature: -40 °C +60 °C

  • Weight: 3.5 kg

  • Dimensions: 450 x 300 x 110 mm (L x W x D)

  • Mounting: 25-72 mm Ø pole



Read More



(XPOL700-3800)

SKU XPOL700-3800
Brand Telco Antennas
Shipping Weight 4.0000kg
Shipping Width 0.550m
Shipping Height 0.200m
Shipping Length 0.400m
Shipping Cubic 0.044000000m3
